Description
Product Introduction
The FANUC A20B-2101-0050 is the main top control board used on FANUC ALPHA i series single-, dual-, and triple-axis servo amplifier modules (A06B-6114 and A06B-6124 series). Mounted on the front section of the servo drive power housing, this circuit board houses the DSP logic and high-speed FSSB (FANUC Serial Servo Bus) optical transceivers responsible for decoding axis position commands from the CNC controller.
Designed for plug-and-play installation onto the power card base, the board interprets pulse coder feedback from the axis motors and generates precision PWM firing commands for the internal Intelligent Power Modules (IPM). Its modular construction allows quick board-level field repair without removing the main servo amplifier housing or heavy power cabling from the electrical cabinet.
Key Technical Specifications
| Parameter | Value |
| Host Servo Series | FANUC ALPHA i Series (A06B-6114 / A06B-6124 Servo Modules) |
| CNC System Compatibility | FANUC Series 0i-C/D/F, 16i/18i/21i-B, 30i/31i/32i-A/B |
| Communication Bus | FSSB (FANUC Serial Servo Bus) High-Speed Fiber Optic Link |
| Feedback Interface | Serial Pulse Coder Inputs (\alpha i / \beta i Encoder Formats) |
| Mounting Style | Internal Edge-Card Plug-In / Frame Lock |
| Logic Supply Voltage | 24 VDC (Supplied via Power Base Connection) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
Application Scenarios & The “Trench” Experience During setup on a 3-axis CNC vertical machining center, the CNC displayed a persistent “SV 0438 / FSSB COMMUNICATION ERROR” on the X and Y axes. Diagnostics confirmed that the fiber-optic transceiver port on the original drive PCB had suffered optical port degradation due to excessive cabinet heat. Swapping the top control board with a tested A20B-2101-0050 restored the FSSB loop communication immediately, getting the machine back into production without having to unbolt the larger servo power frame.
- CNC Machining Centers & Lathes – Processes axis positioning logic across X, Y, Z, and rotational axes.
- Multi-Axis Robotic Workcells – Handles multi-channel position feedback for integrated FANUC robot motion.
- High-Speed Transfer Lines – Maintains tight synchronization across complex multi-drive FSSB fiber networks.
Transparency SOP: Quality Assurance & Testing
- Component & Solder Joint Inspection: Under magnification, all surface-mount passive components, optical ports, and card-edge connectors are inspected for cracked solder or thermal discoloration.
- FSSB Optical Power Test: Optical power output on the fiber-optic transceivers is measured to ensure signal strength meets OEM decibel thresholds.
- Bench Test Rig Assembly: The PCB is snapped onto a matching A06B-6114 servo module base connected to a 30i-B test bench via fiber optics.
- Full-Speed Axis Execution: Driven under real-time load to verify encoder tracking, current sense loops, and PWM output across dynamic acceleration and deceleration cycles.
- ESD Packaging: Verified boards are sealed in heavy anti-static bags and shipped in rigid, anti-static foam boxes.

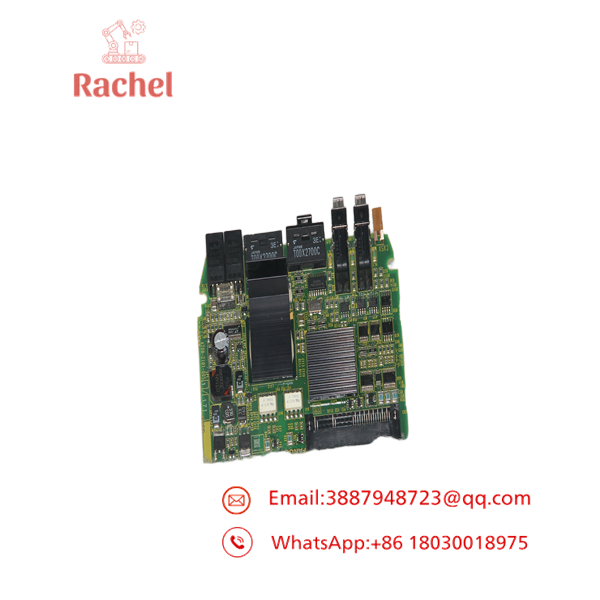

A20B-2101-0050

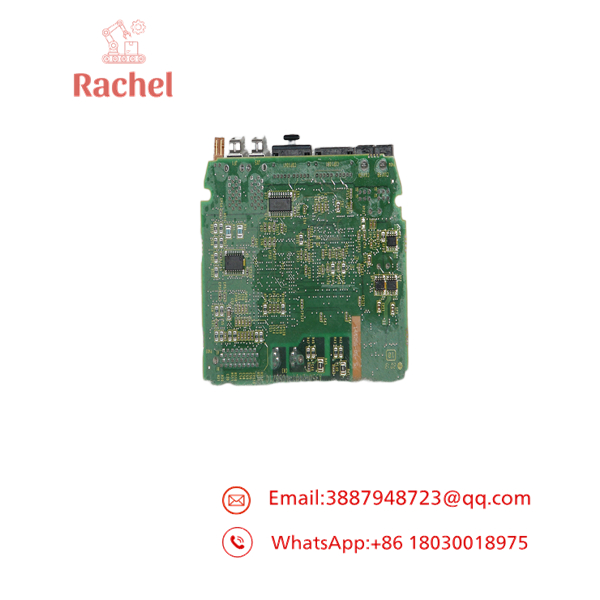

A20B-2101-0050
The Veteran’s Tech Trap Guide
- ⚠️ Do not force the card-edge connectors! When seating the A20B-2101-0050 onto the amplifier power board, align the plastic guide rails carefully. Forcing the board down at an angle will bend or fracture the multi-pin header pins underneath.
- ❗ Keep fiber-optic ports clean. Always leave protective rubber dust caps on the COP10A / COP10B optical ports until the fiber cables are ready to snap in. Dust or oil inside the optical receiver will trigger intermittent FSSB alarms.
- ⚠️ Verify trailing digit compatibility. A20B-2101-0050, -0051, and -0052 boards are generally cross-compatible across similar drive generations, but always check the PMC parameters and firmware revisions if replacing across different drive frame sizes.
Frequently Asked Questions
- Q: What drive series uses the A20B-2101-0050 control board?
A: It is primarily used on FANUC ALPHA i series single-, dual-, and triple-axis SVM-i servo amplifiers (A06B-6114-Hxxx and A06B-6124-Hxxx series).
- Q: Can I replace just this control card instead of buying a complete servo amplifier?
A: Yes. If the power stage (IGBTs, capacitors) of your drive is healthy and only the control/FSSB logic has failed, replacing the A20B-2101-0050 board is a cost-effective repair solution.
- Q: Are these original OEM FANUC boards?
A: Yes, 100%. We only supply authentic OEM FANUC circuit boards, fully bench-tested under real load conditions prior to shipment.
