FANUC A20B-8101-0420 Line Tracking Interface Board

Description

Product Introduction & Engineering Value

When a legacy FANUC line-tracking system develops an intermittent tracking fault, the interface board is one of the components worth checking before replacing larger controller assemblies. The A20B-8101-0420 belongs to the A20B-8101 series and is used for line-tracking-related control functions in compatible FANUC systems.

This is a maintenance-oriented replacement part rather than a general-purpose PLC I/O card. Because the part is reported as discontinued, engineers should verify the complete board number, connector arrangement, controller configuration, and revision markings against the installed unit before ordering.

Technical Specifications

The C0P10A, C0P10B, JF21, and JF22 identifiers are specifically associated with this part in aftermarket technical listings.

Important: Publicly available sources do not provide a complete FANUC electrical specification sheet for this exact board. Do not infer supply voltage, I/O ratings, communication protocol, or connector pin assignments from the part number alone.

Field Application & the “Trench” Experience

A common maintenance scenario looks like this: a production cell using an older FANUC controller begins reporting inconsistent line-tracking behavior after years of operation. The robot itself still powers up and the primary controller diagnostics may appear normal, but tracking performance becomes unreliable. Rather than replacing the controller as a complete assembly, the maintenance team identifies the installed A20B-8101-0420 board and compares its identification markings with the replacement unit.

The critical step is not simply installing another board with a similar A20B number. The technician verifies the exact suffix, connector locations, board revision, and existing system configuration before transferring the replacement into the cabinet.

Specific application scenarios

• Conveyor line tracking for robotic material handling where robot motion must remain synchronized with a moving workpiece.
• FANUC robotic production cells requiring replacement of a failed line-tracking interface PCB.
• Legacy CNC/robot maintenance programs where discontinued control hardware must be sourced from industrial surplus or refurbished inventory.

Third-party listings specifically identify the A20B-8101-0420 as a FANUC line-tracking board and associate it with robot and industrial-control applications.

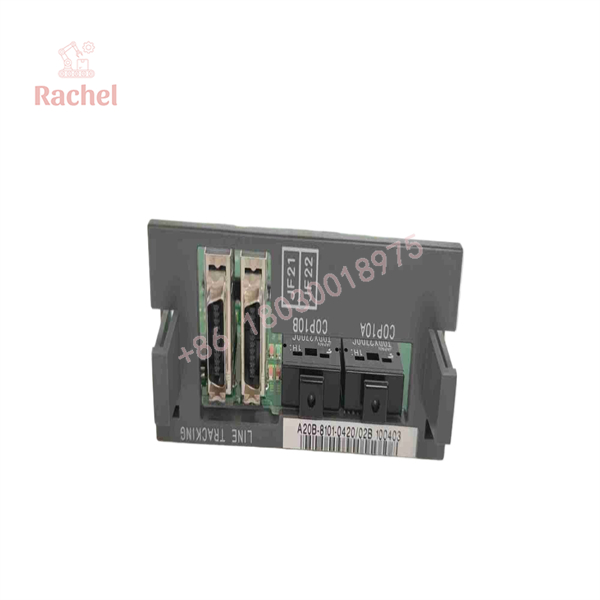

A20B-8101-0420

A20B-8101-0420

Transparency SOP: QA & Testing

For New Surplus inventory, the useful distinction is between “never installed” and “factory sealed.” Those are not automatically the same condition. A proper incoming inspection should include:

1. Part-number verification — Confirm the complete A20B-8101-0420 marking rather than relying on a shortened catalog number.
2. Visual inspection — Check PCB condition, connectors, solder joints, components, contamination, oxidation, and evidence of previous installation.
3. Identification comparison — Compare board revision markings and connector arrangement against the customer’s original board.
4. Functional verification — Where appropriate test equipment and a compatible FANUC system are available, verify the board under controlled operating conditions.
5. ESD-safe packing — Store and ship the PCB in appropriate anti-static protective packaging.

Supplier listings show that this part is available in different condition categories, including new/never-used and refurbished stock.

The Veteran’s Tech Trap Guide

⚠️ Do not buy by the first eight characters alone.
A20B-8101 identifies a family, not necessarily an interchangeable board. The final suffix 0420 matters. Other A20B-8101 boards exist, including A20B-8101-0421, and they should not be assumed interchangeable.

⚠️ Verify the original board before installation.
Photograph the label, connectors, revision markings, and wiring arrangement. A catalog description can identify the board function but cannot establish compatibility with every FANUC controller configuration.

PRO TIP: If the machine is still operational, record existing alarms, tracking parameters, and controller configuration before removing the original board. That information can save considerable troubleshooting time if the replacement produces a different symptom.

⚠️ Treat “new surplus” carefully.
A discontinued board can sit in storage for years. “New” should be clarified as factory-new, never-installed surplus, or supplier-tested unused stock. These conditions have different procurement implications.

Dynamic FAQ

Is FANUC A20B-8101-0420 still manufactured?

Multiple industrial automation suppliers currently list the A20B-8101-0420 as discontinued by the manufacturer. This makes surplus, unused, and refurbished inventory relevant for legacy-machine maintenance.

the used for?

It is identified as a Line Tracking Interface Board / Line Tracking PCB for compatible FANUC control configurations.

Is A20B81010420 the same part number?

Yes. A20B81010420 is commonly used as the unhyphenated representation of .

What related identifiers should I check?

Supplier documentation associates this board with C0P10A, C0P10B, JF21, and JF22. These identifiers can help cross-check an existing installation, but they should not replace verification of the complete FANUC board number.

Can I use a refurbished A20B-8101-0420 as a replacement?

A tested refurbished unit can be considered for legacy equipment, but compatibility should be confirmed from the original board and controller configuration first. Refurbishment standards and warranty periods vary by supplier.

How should New Surplus authenticity be verified?

Request clear photographs of the actual board showing the FANUC label, complete A20B-8101-0420 number, revision markings, connectors, and condition. For higher-value purchases, request the supplier’s test record or functional-test evidence. Warranty terms should also be documented on the quotation before purchase.
