The FANUC A20B-8200-0361 is an axis-control PCB associated with the FANUC 0i-C CNC platform. FANUC’s maintenance documentation identifies A20B-8200-0361 as the four-axis control version, while A20B-8200-0360 is identified as the two-axis version.
That distinction matters during replacement. A visually similar FANUC board is not necessarily an electrical or configuration substitute. For a production machine, verify the complete board number, revision, CNC model, axis count, and existing control configuration before installation.
Technical Specifications
- Manufacturer: FANUC
- Part Number: A20B-8200-036101A
- Base FANUC Part Number: A20B-8200-0361
- Product Series: A20B-8200
- Board Type: CNC control PCB
- Functional Description: Axis control / servo board
- Supported Control: FANUC 0i-C
- Axis Function: Four-axis control
- Related Two-Axis Board: -0360
- Application: FANUC CNC machine-tool control
- Related Description: Graphic & servo / 2-axis servo terminology also appears in commercial listings for the A20B-8200-0361, so supplier descriptions should not replace verification against the FANUC manual and actual machine configuration.
The FANUC maintenance manual is the stronger technical reference here: it explicitly lists A20B-8200-0361 as the four-axis control board for the Series 0i-C hardware architecture.
Field Application & the “Trench” Experience
A common legacy-CNC failure starts quietly. One axis begins generating intermittent control faults, the machine is restarted several times, and eventually the control refuses to operate correctly. The drive amplifiers may still test normally, leaving the maintenance team with an awkward question: is the problem in the servo amplifier, axis wiring, or the CNC control PCB?
For a FANUC 0i-C machine configured around the A20B-8200-0361, replacing the axis-control PCB can be the more practical route when board-level diagnostics point toward the CNC control hardware. The replacement should be treated as a controlled maintenance event—not simply a board swap. Record existing parameters, confirm the board revision, and verify axis configuration before returning the machine to automatic operation.
Niche application scenarios
- Four-axis machining center control maintenance — replacement of the axis-control PCB without replacing the entire CNC cabinet.
- Legacy 0i-C production equipment — maintaining older machine tools where an obsolete PCB is the immediate production constraint.
- Multi-axis CNC retrofit support — verifying the axis-control hardware before attempting broader control-system modernization.

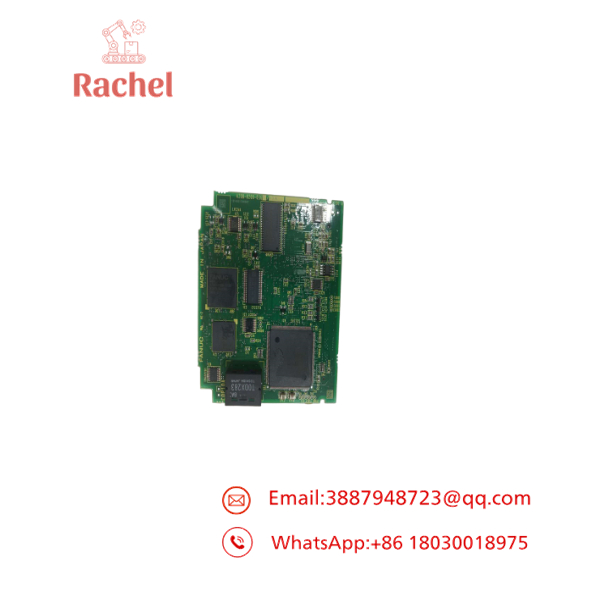

A20B-8200-036101A

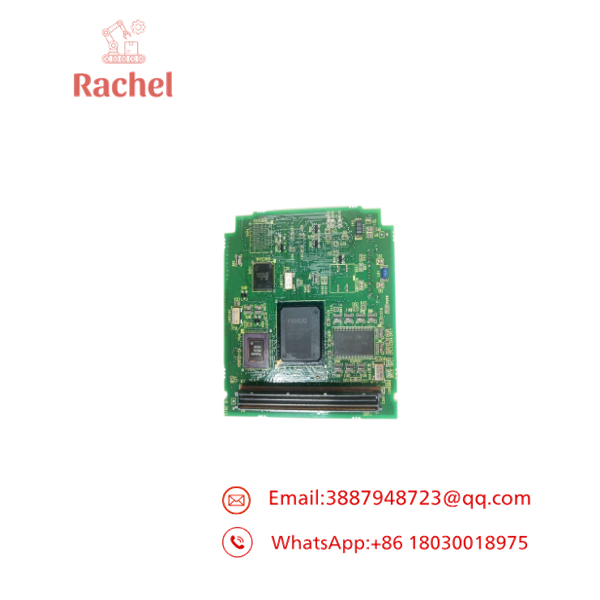

A20B-8200-036101A
Transparency SOP: QA & Testing
For New Surplus inventory, the important issue is not simply whether the package looks untouched. The board should be identified and inspected before shipment.
A practical QA sequence is:
- Part-number inspection — verify A20B-8200-0361 and record the complete suffix/revision, including the supplied 01A marking.
- PCB inspection — check connectors, solder joints, components, board surface, and signs of corrosion or previous rework.
- Configuration verification — compare the board against the intended FANUC 0i-C control and four-axis application.
- Functional test where equipment permits — use a compatible FANUC control/test setup to verify board operation rather than relying solely on continuity or visual inspection.
- Final documentation — retain photographs and test records for the exact unit shipped.
Commercial inventory is available in multiple conditions. For example, current listings distinguish new, never-used, and refurbished versions of the A20B-8200-0361, demonstrating why procurement documents should state the required condition explicitly.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing -0360 and -0361
This is the first check. FANUC’s documentation identifies -0360 for two-axis control and for four-axis control. Do not order from a shortened description such as “A20B-8200 servo board.”
⚠️ Trap #2 — Ignoring the suffix
Your specified part is -036101A, while most public references use . That extra 01A should be checked against the physical PCB and the machine’s existing board before approving a replacement.
PRO TIP: Photograph the complete label of the failed board before removing it. On legacy FANUC equipment, the revision and suffix can be more useful than a generic catalog description.
⚠️ Trap #3 — Assuming the PCB alone defines the entire servo system
The axis-control board works as part of the larger CNC architecture. Servo amplifiers, motors, feedback devices, machine parameters, and CNC software all remain relevant. A replacement board that is electrically correct can still leave the machine unavailable if the control configuration has not been preserved.
Dynamic FAQ
What is FANUC -036101A?
It is a FANUC A20B-8200-series CNC control PCB. Public documentation identifies the underlying board as a four-axis control board for the FANUC 0i-C platform.
Is a servo module?
Yes, commercial suppliers commonly describe it as a servo module, two-axis servo board, or graphic/servo PCB. However, FANUC’s own maintenance documentation provides the more specific functional classification: four-axis control for the 0i-C architecture.
Is interchangeaA20B-8200-0360?
Do not assume so. FANUC documentation distinguishes them by axis-control function: -0360 = two axes; -0361 = four axes.
What should I verify before ordering A20B-8200-036101A?
Verify the complete PCB number and suffix, CNC control model, axis count, board revision, connector configuration, and existing machine documentation. For a replacement purchase, send the supplier a photograph of the original board label whenever possible.
Is New Surplus available?
Commercial listings show the A20B-8200-0361 offered in new and unused conditions as well as refurbished inventory. Actual availability varies by supplier and condition.
What warranty is available?
Warranty is supplier-specific. Current examples include a 1-year MRO warranty from MRO Electric and a 1-year Radwell warranty on applicable inventory, while another repair supplier lists 12-month coverage. These are supplier warranties, not a universal FANUC specification.
