FANUC A660-2007-T364 Teach Pendant Cable R-30iB / R-30iB Mate

Description

Product Introduction

The FANUC A660-2007-T364 is a high-flexibility teach pendant cable engineered for FANUC R-30iB, R-30iB Mate, and R-30iB Plus series robot controllers. Connecting the handheld teach pendant (iPendant) to the main controller cabinet, this cable carries real-time motion commands, status telemetry, display data, and safety circuit interlocks.

Constructed with a heavy-duty, oil-resistant polyurethane outer sheath, the A660-2007-T364 is built to endure harsh industrial automation environments characterized by repeated bending, mechanical abrasion, and exposure to cutting fluids or weld spatter. The cable features redundant safety wiring for dual-channel E-Stop loops and three-position deadman switches required by ANSI/RIA robotic safety standards.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a shift on an automated robotic welding cell, an operator tripped a SRVO-003 Deadman Switch Open alarm every time the teach pendant cable was flexed near the cell door. Visual inspection showed that the outer jacket had been pinched under a forklift tire, fracturing one of the internal safety loop conductors. Swapping in a replacement A660-2007-T364 cable restored dual-channel safety loop continuity and cleared the intermittent motion stops instantly.

• Automated Welding & Palletizing Cells – Connects the pendant for manual jogging, teaching waypoints, and editing TP programs.
• CNC Machine Tending – Serves as the primary operator link during setup and manual tool-path overrides.
• High-Flex Cable Track Systems – Provides durable signal integrity when routed along mobile operator stations.

Transparency SOP: Quality Assurance & Testing

1. Visual & Jacket Continuity Inspection: The full 10-meter cable length is uncoiled and inspected for outer jacket gouges, necking, stress cracks, or connector shell damage.
2. Pin-to-Pin Continuity & Resistance Sweep: Every individual pin is tested using an automated cable analyzer to confirm low resistance across all signal, power, and ground wires.
3. High-Voltage Megger & Short Circuit Test: High-voltage testing is applied across adjacent wire pairs and overall braided shielding to confirm zero insulation breakdown or short circuits.
4. Live Controller Bench Test: Plugged into an active R-30iB controller test stand and iPendant to verify touch screen responsiveness, display feed, emergency stop tripping, and deadman switch cycling under dynamic flex conditions.

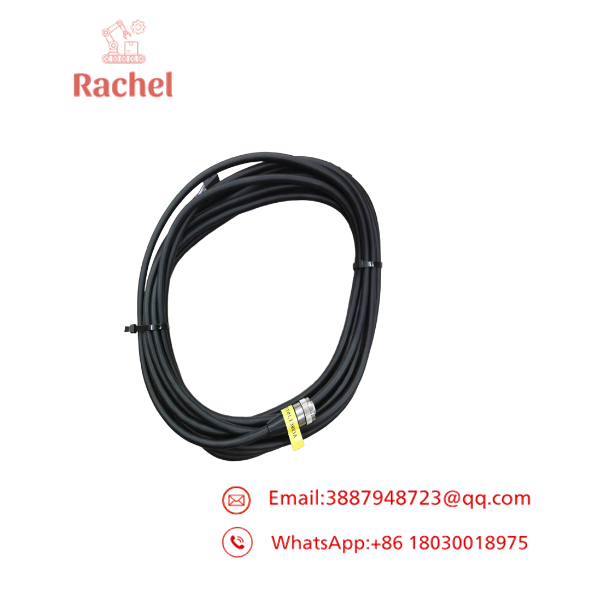

A660-2007-T364

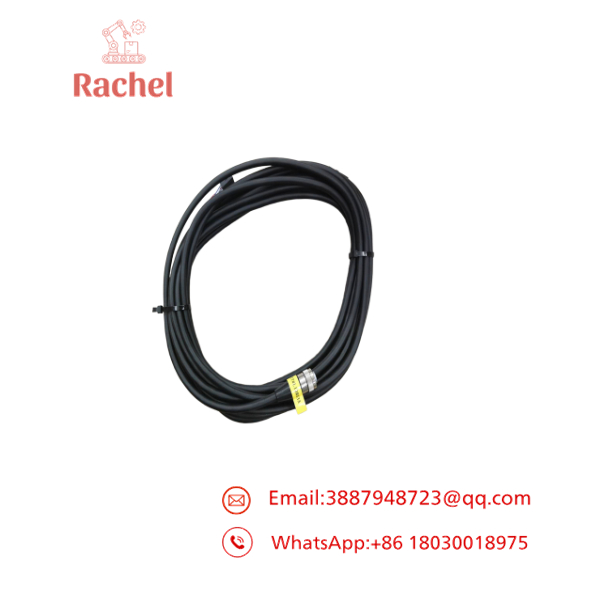

A660-2007-T364

The Veteran’s Tech Trap Guide

• ⚠️ Do not yank the cable to untangle it! Pulling or twisting a coiled pendant cable tightly can kink internal conductors, causing intermittent communication dropouts (e.g., “SRVO-001 Operator Panel E-Stop”) that are difficult to diagnose.
• ❗ Align the circular bayonet connector keyways. When plugging the metal connector into the bottom of the iPendant, align the guide keys before twisting the locking ring. Forcing the ring down without proper alignment will bend the delicate male pins inside.
• ⚠️ Always hang the pendant on its bracket when done. Leaving the teach pendant or its cable resting on the factory floor leaves the cable vulnerable to being crushed by AGVs, forklifts, or heavy workpieces.

Frequently Asked Questions

• Q: Can I use the A660-2007-T364 cable on older R-30iA controllers?

  A: No. R-30iA controllers use a different generation of teach pendants and cable connector configurations (typically A660-2005 series cables).

• Q: What does the “L10” designation mean in part number variants?

  A: The “L10” designation indicates a standard cable length of 10 meters. Other variants (such as L5 or L20) designate 5-meter or 20-meter lengths, respectively.

• Q: Are these genuine OEM FANUC cables?

  A: Yes, 100%. We supply authentic OEM FANUC cable assemblies and certified high-flex replacement options, fully bench-tested prior to dispatch.
