FANUC A860-2109-T302 Servo Motor Encoder Sensor

Description

Product Introduction

The FANUC A860-2109-T302 is a precision pulse coder (rotary encoder) engineered to deliver high-resolution position, speed, and commutation feedback to FANUC servo drives. Installed directly on the rear shaft end of FANUC Alpha i and Beta i series AC servo motors, this sensor communicates position data back to the CNC controller via a dedicated high-speed serial interface.

Built to withstand the thermal stress and high vibration levels of modern CNC machining centers, the A860-2109-T302 eliminates axis drift and positioning errors. Its high-density optical/magnetic sensing element provides micro-inch repeatability, making it a critical link in holding tight tolerances on multi-axis turning, milling, and grinding equipment.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a busy production job shop on a Thursday afternoon. A 5-axis vertical machining center working on a batch of critical aerospace brackets trips a SV0368 SERIAL PULSE CODER COMM ERROR or SV0300 AXIS NEED ZERO POINT RETURN alarm on the Z-axis. The machine drops into emergency stop, leaving a cutter buried in a $4,000 billet of titanium. When an encoder internal disc fails or gets contaminated by liquid coolant, swapping out the encoder module with a pre-tested FANUC A860-2109-T302 gets the machine back into production in under an hour.

Primary Field Applications:

• CNC Machining Centers & Lathes: Precise axis positioning and velocity feedback for milling, boring, and turning operations.
• Robotics & Servo Manipulators: Articulated robot joint feedback where rapid deceleration and direction changes require instant positioning accuracy.
• High-Speed Transfer Lines: Machine tools running continuous, high-duty-cycle production where motor temperature spikes kill lesser sensors.
• Grinding & Precision Boring Machines: Sub-micron positioning feedback to ensure precise surface finishes and geometric tolerances.

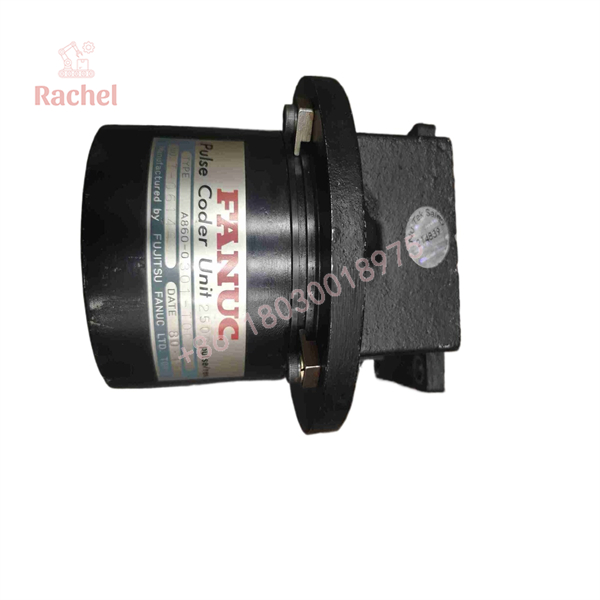

A860-2109-T302

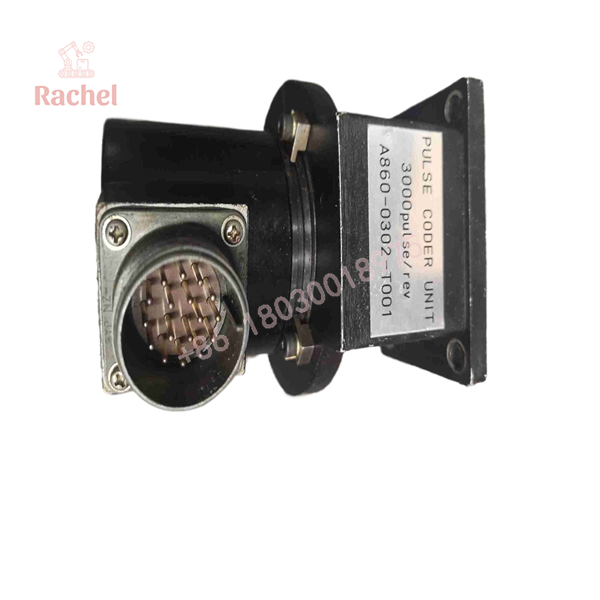

A860-2109-T302

Transparency SOP: Quality Assurance & Testing

We treat servo feedback electronics with extreme caution. Every FANUC A860-2109-T302 pulse coder undergoes a strict 5-step bench and live-drive test before shipment:

1. Inbound Mechanical & Optical Inspection: Inspection of the glass/magnetic disc assembly, shaft coupling, housing seals, and connector pins for corrosion or bent leads.
2. Static Power & Current Draw Check: Verifying 5V DC rail stability and current consumption to identify shorted internal circuitry before drive mounting.
3. Live Motor Rig & Oscilloscope Test: Mounting the encoder to a test motor driven by an actual FANUC servo amplifier to verify A/B/Z channel waveforms and serial communication packets.
4. Absolute Position Memory Verification: Testing absolute count retention and backup battery circuit handshakes under power-down/power-up conditions.
5. ESD Cleaning & Protective Packaging: Contact cleaning, anti-static wrapping, and protective foam-cushioned boxed packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Prepare for Zero-Point (Reference Point) Re-Mastering: Swapping a pulse coder changes the mechanical relationship between the encoder and the motor rotor. Expect to re-establish your grid mask / reference point parameters (e.g., Parameter 1815 APZ bit) after replacement.
• ❗ Never Force the Optical Shaft Coupling: When slipping the A860-2109-T302 onto the motor shaft, ensure the internal coupling key aligns smoothly. Forcing or hammering the encoder onto the shaft will crack the fragile internal glass disc instantly.
• ⚠️ Watch Out for Liquid Coolant Ingress: Over 70% of encoder failures are caused by synthetic coolant creeping past the rear motor cover seal and invading the encoder housing. Always replace the motor rear rubber gasket and O-ring when installing a new pulse coder!
• ❗ Inspect the Feedback Cable Connector First: Before blaming the encoder for a serial communication fault (SV0368 or SV0367), check the female cable pins on the cable harness. Loose crimps or coolant inside the cable plug often masquerade as a bad encoder.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the FANUC A860-2109-T302 plug-and-play without machine parameter adjustment?

A: You can physically bolt it on directly, but because it is an absolute encoder, you must clear the reference position fault and perform a zero-point return (grid setting) on that machine axis before running programs in automatic mode.

Q: Can I replace an older A860 series pulse coder with the A860-2109-T302?

A: Not necessarily. FANUC encoders use specific serial communication protocols matched to the motor family (\alpha i vs. \alpha vs. \beta). Always match the exact part number to ensure protocol compatibility with your servo amplifier.

Q: What is the lead time and condition of this encoder?

A: We stock both New Surplus (Factory Sealed) and fully bench-tested, refurbished original units available for immediate, same-day shipment.

Q: What warranty do you provide with this pulse coder?

A: All FANUC A860-2109-T302 units supplied from our inventory carry a full 12-month direct replacement warranty. If it fails under normal operating conditions within one year, we replace it immediately from our stock.

Q: Why buy a verified surplus or refurbished encoder instead of sending the motor out for repair?

A: Time. A full motor rewind and repair shop turnaround can take 1 to 2 weeks. Swapping just the faulty encoder yourself on-site takes under an hour and costs a fraction of a full motor overhaul.
