Description
Core Product Summary (Brand / Model / Key Attributes)
The Fireye EB700 is the microprocessor-based control chassis for the Flame-Monitor burner management system, used primarily with the E110 (and related E100) controls. It provides the physical housing and 18-terminal wiring base that accepts interchangeable programmer modules and flame amplifier modules.
The chassis supports proper burner sequencing, ignition, and continuous flame monitoring on automatically ignited oil, gas, and combination-fuel burners. It is designed for direct interchangeability with older Fireye D-Series and C-Series controls using the same wiring base, eliminating the need for rewiring in many retrofit applications. Supply voltage is 120 VAC (50/60 Hz). The unit includes internal transient suppression and operates over a temperature range of –40 °F to +140 °F (–40 °C to +60 °C).
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Flame-Monitor control chassis |
| Manufacturer | Fireye |
| Model / Part number | EB700 |
| Compatible systems | E100 / E110 Flame-Monitor |
| Supply voltage | 120 VAC (+10 %, –15 %), 50/60 Hz |
| Power consumption | 25 VA |
| Maximum simultaneous connected load | 2000 VA |
| Wiring base | 18-terminal |
| Operating temperature | –40 °F to +140 °F (–40 °C to +60 °C) |
| Humidity | 85 % RH non-condensing |
| Flame detection support | UV, IR, flame rod, self-check UV (via amplifier module) |
Detailed Product Overview
The Fireye EB700 serves as the core chassis for the Flame-Monitor series of microprocessor-based burner management controls. It houses the plug-in programmer module (EP or EPD series) that defines the operating sequence and the flame amplifier module that processes the signal from the selected flame scanner.
In conjunction with external limit and operating controls, the complete assembly programs the burner/blower motor, ignition transformer, and fuel valves to ensure correct pre-purge, pilot trial-for-ignition, main flame establishment, and continuous flame supervision. On a safety shutdown the system provides lockout indication and sequence-position information (via an optional display module).
The 18-terminal wiring base supports the full range of functional circuits required for commercial and industrial burners, including motor, valve, ignition, and multiple interlock circuits (running interlock, high-fire proving, purge interlocks, etc.). Because the chassis uses the same wiring base as earlier Fireye D-Series and C-Series controls, it can often be substituted without field rewiring.
Flame detection method is determined solely by the installed amplifier module, allowing the same chassis to work with ultraviolet, infrared, flame-rod, or self-check ultraviolet scanners. An internal transient-suppressing device is connected across the hot and neutral terminals to protect the electronics from electrical noise and surges, provided the unit is properly grounded to the wiring sub-base.
The EB700 is supplied as a chassis only. The dust cover (EC600), mounting screw (48-1836), display module (ED500 or ED510), programmer module, and flame amplifier must be selected and ordered separately according to the specific burner sequence and flame-scanning requirements. The complete E110 package consists of the EB700 chassis, cover, and mounting screw.
Engineering Selection Highlights
- Chassis only for the Fireye Flame-Monitor (E110/E100) system; programmer and amplifier modules are ordered separately.
- 18-terminal wiring base matches older D-Series and C-Series controls for drop-in retrofit without rewiring.
- Accepts interchangeable EP/EPD programmer modules that define purge, trial-for-ignition, and recycle/non-recycle timing.
- Supports multiple flame-detection technologies (UV, IR, flame rod, self-check UV) via the selected amplifier module.
- 120 VAC supply with internal transient suppression for industrial electrical environments.
- Operating temperature range of –40 °F to +140 °F suits typical boiler and process-heater locations.

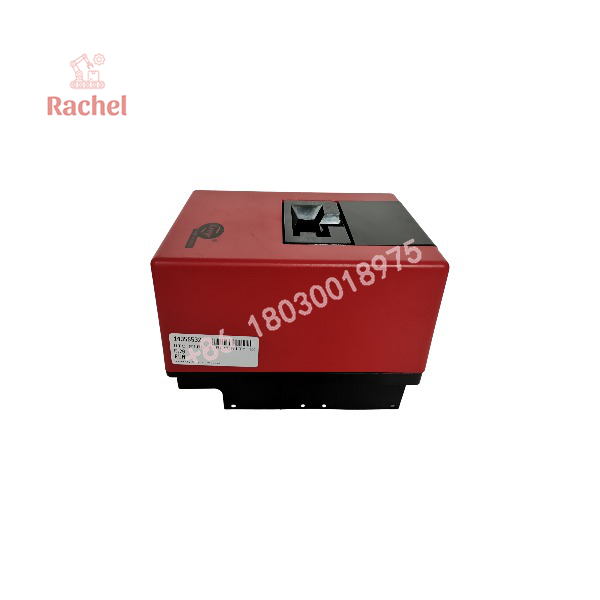

EB700

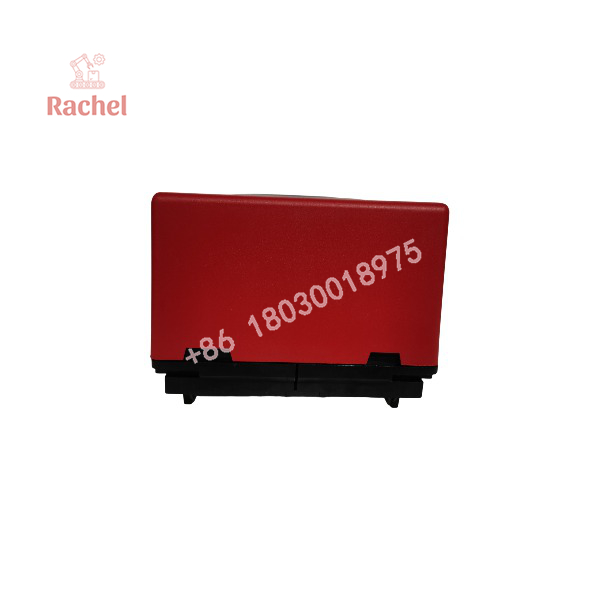

EB700
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host system | Fireye E100 / E110 Flame-Monitor | Chassis is the core housing |
| Programmer module | EP or EPD series | Defines sequence timing and logic |
| Flame amplifier | EUV1, E1R1, ERT1, EUVS4, etc. | Selects flame scanner type |
| Display module | ED500 (LED) or ED510 (LCD) | Optional; ordered separately |
| Wiring base | Same as D-Series / C-Series | Enables direct interchange without rewiring |
| Supply | 120 VAC, 50/60 Hz | Proper grounding required for transient suppression |
| Cover / hardware | EC600 dust cover, 48-1836 mounting screw | Not included with chassis-only EB700 |
Dimensions, Mounting & Connection Notes
The EB700 is a panel- or base-mounted chassis that accepts plug-in modules and connects via the standard 18-terminal wiring base. Exact overall dimensions vary with the installed cover; typical packaged weight is in the range of several pounds. The chassis must be securely fastened and the transient-suppression circuit properly grounded to the wiring sub-base. All field wiring for motors, valves, ignition, and interlocks terminates on the 18-terminal base.
FAQ
What is the Fireye EB700?
It is the microprocessor-based control chassis for the Flame-Monitor (E110/E100) burner management system.
Does the EB700 include the programmer and amplifier?
No. It is the chassis only. Programmer (EP/EPD) and flame amplifier modules are ordered separately.
What supply voltage does it use?
120 VAC (+10 % / –15 %), 50/60 Hz.
Can it replace older Fireye controls?
Yes. It uses the same wiring base as D-Series and C-Series controls, allowing direct interchange in many applications without rewiring.
What flame scanners are supported?
UV, infrared, flame rod, and self-check ultraviolet scanners, depending on the installed amplifier module.
What is included with a full E110 package?
The EB700 chassis, EC600 dust cover, and 48-1836 mounting screw. Display, programmer, and amplifier are additional.
