Foxboro FBM01 Foxboro DCS Fieldbus Module

Description

Product Introduction

The Foxboro FBM01 is an 8-channel analog input Fieldbus Module engineered for the legacy Foxboro I/A Series Distributed Control System (DCS). Operating as a key interface between process instrumentation and fieldbus communication networks, the FBM01 monitors critical process variables like flow, level, pressure, and temperature across heavy industrial environments.

Designed for demanding continuous process plants, this module isolates, filters, and digitizes analog transmitter signals before routing them to control processors across the redundant I/A Series node bus. Its hardware-level signal conditioning ensures extreme immunity to plant noise and ground loops, maintaining tight control loops without dropouts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It’s 1:30 AM during a full-capacity run at a gulf-coast chemical refinery. A high-pressure cracking unit unexpectedly trip-locks due to “Loss of Feedback” alarms on four critical temperature loops simultaneously. The issue isn’t four blown sensors—it’s a failing analog-to-digital multiplexer on an aging FBM01 card in the local rack room. Without live current feedback, safety interlocks halt production, costing $45,000 every hour the reactor sits cold. Swapping the FBM01 with a bench-tested replacement module is the only way to restore field telemetry and clear the trip.

Target Application Scenarios

• Oil & Gas Refining: Monitored analog pressure and temperature transmitters across refining columns and offsite storage tanks.
• Pulp & Paper Operations: Connects 4-20mA flow sensors across harsh chemical recovery boilers and paper machine steam lines.
• Power Generation Facilities: Interfaces boiler feed-water levels and turbine vibration transmitters into centralized control networks.

Refresher Case Study

A Midwestern power plant experienced signal drift on a critical feedwater pump channel linked to a Foxboro 100-series rack. The original FBM01 module was showing thermal failure on channel 3. We pulled a zero-hour surplus unit, ran it through full channel calibration, and overnighted it to site. The instrument team slotted the new card into the baseplate, cleared the diagnostic fault, and recalibrated the loop in under 30 minutes without requiring a total system shutdown.

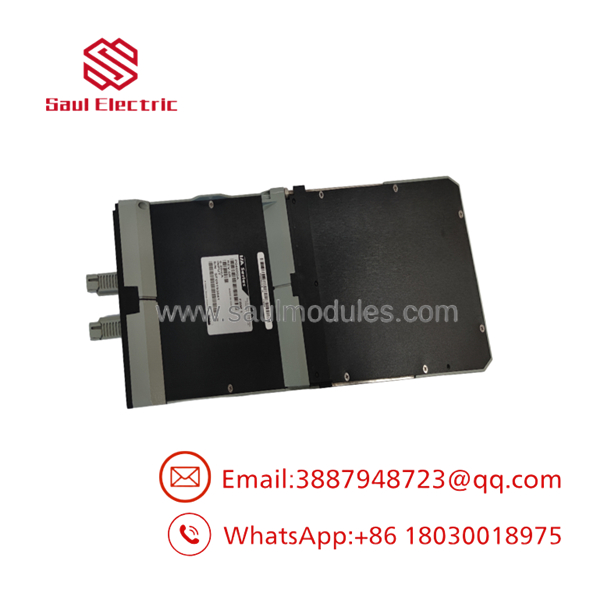

FBM01

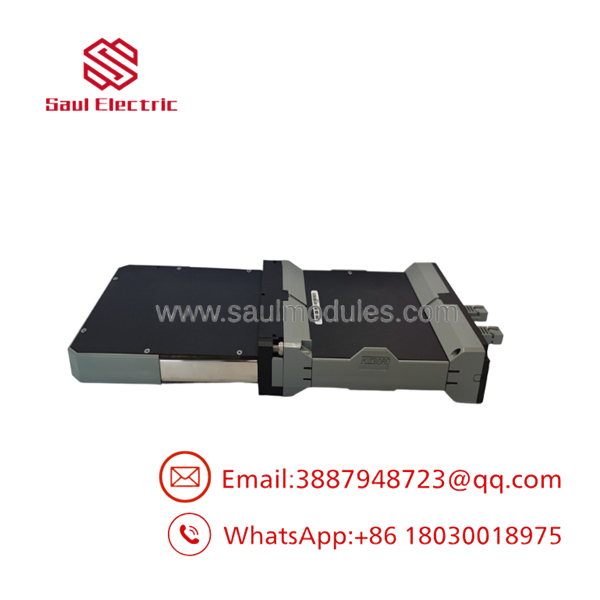

FBM01

Transparency SOP: Quality Assurance & Testing

We do not ship unchecked field surplus. Every Foxboro module goes through an aggressive 5-point workbench validation prior to dispatch:

1. Inbound Physical Verification: Visual inspection for PCB discoloration, heat stress around power components, fractured solder joints, and edge connector plating integrity.
2. Backplane & Resistance Diagnostics: Continuity checks on power rails and channel inputs to rule out short circuits caused by field overvoltage spikes.
3. Live Baseplate Rack Testing: The module is slotted into a live Foxboro test baseplate powered by a Control Processor to verify bus address handshakes and system health LEDs.
4. 8-Channel Calibration Loop: We feed precise 4.0mA, 12.0mA, and 20.0mA current loop inputs into every individual channel using a process calibrator to ensure A/D converter accuracy across all 8 channels.
5. Anti-Static ESD Packaging: After clearing full burn-in checks, units are solvent-cleaned, sealed in anti-static shielding bags, and securely boxed in custom foam cell shippers.

The Veteran’s Tech Trap Guide

• ⚠️ Set Your Baseplate Address Switches First!

  Never slide a replacement into a baseplate without verifying the module addressing jumpers or DIP switches on the mounting position. If the baseplate address doesn’t match your DCS database configuration, the Control Processor will flag a hardware mismatch error.

• ❗ Verify Loop Power Wiring Configuration.

  The expects specific 2-wire vs. 4-wire transmitter wiring setups. If you are using self-powered 4-wire transmitters, ensure external loop power isn’t fed back into the card channels in a way that exceeds channel isolation limits, or you will pop the front-end signal fuses.

• ⚠️ Do Not Force the Card into the Slot.

  Foxboro 100 Series modules rely on precise card-edge alignment pins. Forcefully jamming an into a bent or debris-filled baseplate slot can snap the backplane connector pins or damage internal trace contacts.

• ❗ Check Termination Assemblies (TA) and Cables.

  Often, what looks like a failed channel on an module is actually corrosion or loose screw terminals on the external Termination Assembly (TA) or a damaged ribbon cable connecting the TA to the module slot. Clean contacts with contact cleaner before declaring the card bad.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the Foxboro module while the rack is live?

A: Yes, Foxboro I/A Series 100/200 baseplates support hot-swapping under powered conditions. However, pulling the module will immediately drop all 8 analog input loops to zero or bad-status in the DCS software. Put all affected control loops in manual or bypass mode before extraction.

Q: What is the difference between an and an FBM201?

A: The belongs to the legacy 100-Series Foxboro architecture with a larger form factor and 8 channels, whereas the FBM201 is part of the smaller 200-Series system offering up to 16 channels and faster processing times. They use different baseplates and are not physically interchangeable.

Q: How do I handle 4-20mA signals on an 0-20mA module?

A: The measures the full 0 to 20mA range. 4 to 20mA signals are scaled directly inside the Foxboro I/A software block (e.g., AIN block) by defining 4mA as 0% scale and 20mA as 100% scale.

Q: What warranty comes with these legacy surplus cards?

A: Every sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within one year, we provide an immediate replacement or full credit.

Q: Are these modules factory new or surplus refurbished?

A: Since Foxboro discontinued the legacy 100 Series FBM line, brand-new OEM stock is no longer produced. Our inventory consists of high-grade surplus and bench-tested units sourced from system upgrades and facility modernizations worldwide.
