Description
Product Introduction
The Foxboro FBM04 is an 8-channel high-accuracy voltage input Fieldbus Module built for the legacy Foxboro I/A Series Distributed Control System (DCS). While standard process loops often rely on current signals, specialized analytical instruments, drive speed feedbacks, and position sensors output direct 0-10V DC signals. The FBM04 serves as the dedicated interface for these voltage-based field devices.
Engineered to operate inside demanding industrial sub-racks, the module converts raw analog voltage telemetry into digital bus communications routed directly to control processors. Onboard A/D converters and heavy-duty noise filtering protect your signal processing from common-mode voltage spikes, electromagnetic interference, and ground loops across long cable runs.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM04 / P0914XC |
| Series | Foxboro I/A Series 100/200 Subsystem |
| Input Channels | 8 isolated single-ended analog inputs |
| Input Signal Range | 0 to 10 V DC |
| Input Impedance | >10 Megohms |
| Resolution | 15-bit A/D conversion |
| Galvanic Isolation | 1500V AC channel-to-bus isolation |
| Power Consumption | 3W maximum from baseplate power rails |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is during a critical batch cycle at a plastics extrusion plant. A high-torque extruder drive suddenly trips out with an “Analog Feedback Fault.” The issue isn’t the drive or the speed potentiometer—channel 2 on an old FBM04 card in the local rack room stopped reading the 0-10V drive reference voltage. The DCS thinks the drive is running at 0 RPM, locking out downstream feeder valves and threatening to solidify thousands of pounds of molten polymer inside the barrel. Swapping the FBM04 card with a pre-tested, calibrated replacement is the only fast fix to avoid a costly tear-down cleanout.
Target Application Scenarios
- Variable Frequency Drive (VFD) Feedback: Interfaces 0-10V analog speed reference and torque output signals from motor drives into centralized DCS control blocks.
- Analytical Instrumentation: Captures DC voltage telemetry from gas chromatographs, photometers, and specialized laboratory quality analyzers.
- Position & Displacement Monitoring: Reads potentiometer-based linear feedback transducers on hydraulic actuators and heavy valve positioners.
Field Case Study
A steel rolling mill experienced signal dropouts on roll-gap position sensors connected to a Foxboro 100-series sub-rack. Diagnostic logs flagged an internal multiplexer fault on the existing FBM04 module. We dispatched a bench-tested (P0914XC) unit via express freight. The instrument technician set the baseplate position jumpers, slid the new card into place, and verified 0-10V calibration across all 8 channels in under 20 minutes—saving the plant from an extended maintenance shutdown.
Transparency SOP: Quality Assurance & Testing
We never drop-ship untested surplus. Every Foxboro module passes through a strict 5-stage bench validation process before shipment:
- Inbound Visual & Mechanical Inspection: Detailed check under high magnification for cracked solder traces, thermal stress around power regulators, and card-edge connector wear.
- Cold Power Rail Diagnostics: Ohm-meter resistance checks across internal power pins and signal ground planes to catch hidden component shorts.
- Live Baseplate Bus Handshake: Card is inserted into a live Foxboro test baseplate to verify communication handshakes, module ID reporting, and LED status indicators.
- 8-Channel Voltage Calibration: Precision voltage generators feed step inputs (0.0V, 2.5V, 5.0V, 7.5V, and 10.0V) into every channel to verify 15-bit A/D converter linearity and accuracy.
- Final Cleaning & Anti-Static Packaging: Cleared modules receive solvent cleaning, dry storage baking if needed, and ESD shielding bag isolation before foam packing.

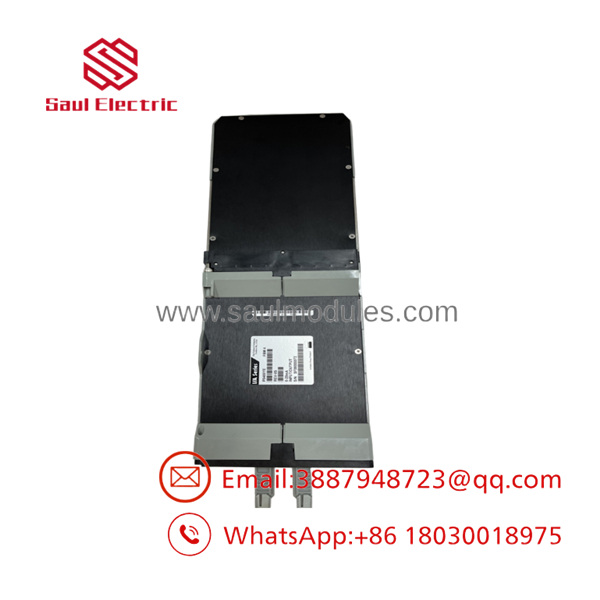

FBM04

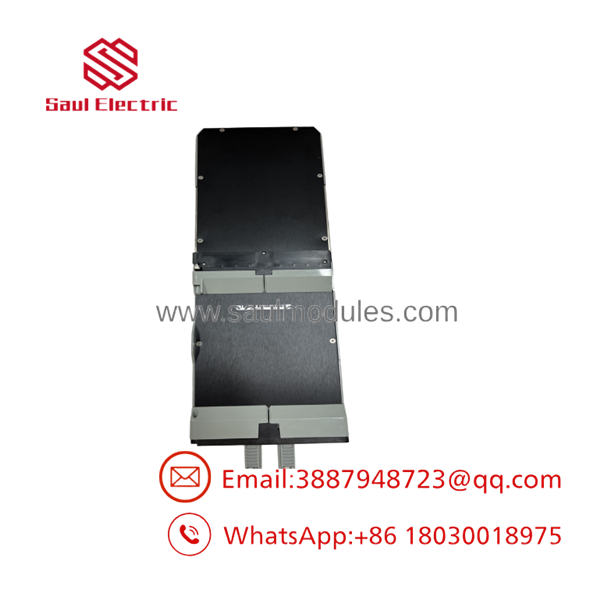

FBM04
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Mix Up FBM01 (Current) and (Voltage)!
They look almost identical at a distance, but the FBM01 expects 0-20mA current while the reads 0-10V voltage. Connecting a 4-20mA current loop directly into an channel without a precision shunt resistor will give you pegged, incorrect readings—or damage the high-impedance input stage.
- ❗ Verify Module Baseplate Position Jumpers.
Double-check the baseplate address jumpers or DIP switch settings at the card slot before seating the replacement card. If the module hardware address doesn’t match the DCS system definition, the Control Processor will refuse to configure the card.
- ⚠️ Watch Your Common Grounding on Single-Ended Inputs.
Because the uses single-ended inputs, all signal ground returns share a common reference plane on the module. Ensure your 0-10V field transmitters don’t have conflicting ground potentials, or you will create ground loops that degrade measurement accuracy across all 8 channels.
- ❗ Inspect Baseplate Slot Contacts for Debris.
Legacy Foxboro 100 Series baseplates accumulate dust and ambient industrial residue over decades. Spray the female backplane slot with fast-evaporating electrical contact cleaner before sliding the replacement module into position.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the rack is powered?
A: Yes, Foxboro I/A Series 100/200 baseplates support live insertion and removal. However, pulling the card will instantly drive all 8 voltage input channels to “Bad Status” in the DCS database. Always place affected control loops in Manual mode before pulling the card.
Q: How do I measure a 0-5V signal on an ?
A: The natively measures 0 to 10V DC. For 0-5V sensors, you scale the input directly in the Foxboro DCS software block (e.g., AIN block) by assigning 0V to 0% and 5V to 100% of range.
Q: What is the exact difference between part numbers and P0914XC?
A: “” is the functional model name used in DCS system documentation, while “P0914XC” is the specific Foxboro hardware part number stamped on the module casing and PCB assembly. They refer to the exact same physical product.
Q: What warranty covers these legacy surplus cards?
A: Every unit includes a 12-Month Functional Warranty. If the module fails under standard operating conditions within 365 days, we provide a replacement unit or a full credit.
Q: Are brand-new factory modules still available for the ?
A: Schneider Electric / Foxboro has discontinued the legacy 100 Series FBM family. Factory-new production has ceased. Our stock consists of high-grade, fully tested surplus units retrieved from verified system upgrades worldwide.
