Description
Core Product Summary
The FOXBORO FBM02 is an I/A Series fieldbus module for acquiring thermocouple and millivolt signals in industrial process measurement applications. It provides eight isolated, independent thermocouple/mV input channels and one isolated reference-junction compensation channel for terminal-temperature sensing.
The module converts field sensor signals for communication over the system’s redundant Fieldbus. Its configurable analog-input resolution and fieldbus-switching options allow the module to be configured for the application requirements.
The FBM02 is a legacy hardware model. Before replacing an installed unit, confirm the exact module designation, termination cable assembly, reference-junction sensor arrangement, and mounting configuration.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM02 |
| Product series | I/A Series |
| Product type | Thermocouple/mV Input Interface Module |
| Input channels | 8 isolated, independent thermocouple/mV channels |
| Reference-junction compensation | 1 isolated channel |
| Input range | −10.5 to +71.41875 mV DC |
| Typical thermocouple types | B, E, J, K, S, T, N |
| Reference-junction sensor | 100 Ω platinum RTD |
| Communication | Redundant Fieldbus |
| Input voltage range | 26–42 V DC, redundant supply |
| Maximum power consumption | 9 W |
| Maximum heat dissipation | 9 W |
| Millivolt-input accuracy | ±0.035% of span |
| Thermocouple conformity | ±0.25°C |
| RTD conformity | ±0.25°C |
| Reference-junction measurement accuracy | ±0.50°C with the specified supplied RTD arrangement |
| Temperature coefficient | ±25 ppm/°C |
| Operating temperature | 0 to +60°C |
| Storage temperature | −40 to +70°C |
| Relative humidity | 5–95%, noncondensing |
| Environmental classification | Class G3 (harsh), as specified |
| Approximate mass | 1 kg |
| Status indication | Red and green LEDs on the termination connector |
Specifications above follow the Foxboro FBM02 product specification. Accuracy and conversion performance depend on the specified configuration and measurement conditions.
Engineering Selection Highlights
Isolated low-level signal acquisition
The eight input channels are electrically isolated from one another and from ground. The specification states that the module can withstand 600 VAC for one minute between a channel and ground, or between channels, without damage. This withstand rating does not authorize permanent connection to hazardous-voltage circuits.
Thermocouple reference-junction compensation
Thermocouple measurements require reference-junction temperature compensation. The FBM02 provides a dedicated isolated compensation channel using a 100 Ω platinum RTD arrangement. The exact sensor connection depends on the termination assembly used.
Configurable conversion performance
Analog-input resolution and integration settings affect measurement update and settling behavior. The product specification documents configurable integration periods of 0.1, 0.2, 0.5, and 1.0 seconds, with corresponding update, settling, and resolution characteristics.
Redundant Fieldbus communication
The FBM02 connects to the redundant Fieldbus as a main-type module. This makes correct Fieldbus integration and configuration important during replacement or system restoration.
Multiple termination arrangements
The documented hardware supports discrete-wire, direct-connection, and plug-connector termination arrangements. The appropriate assembly depends on the enclosure and installation configuration.
System Compatibility & Integration Requirements
| Compatibility item | Verification requirement |
|---|---|
| DCS platform | Confirm the installed Foxboro I/A Series architecture supports FBM02. |
| Fieldbus | Verify the redundant Fieldbus interface and module configuration. |
| Power | Confirm the specified redundant 26–42 V DC input supply. |
| Sensor type | Verify thermocouple type or millivolt signal range for every channel. |
| Reference-junction compensation | Confirm the 100 Ω platinum RTD arrangement and termination assembly. |
| Termination hardware | Match discrete-wire, direct-connection, or plug-connector hardware as applicable. |
| Mounting | Check the enclosure and mounting structure, including whether a Y-adapter is required. |
| Configuration | Verify analog-input resolution, integration period, and Fieldbus-switching settings. |
| Replacement validation | Confirm wiring, channel assignments, and measurement behavior before returning the system to service. |
Do not assume that the newer FBM202 is a direct physical replacement for the FBM02. Foxboro documentation indicates that appropriate termination assemblies can provide the functionality formerly supplied by the 100 Series FBM I/O subsystem, but the complete hardware configuration must be verified.

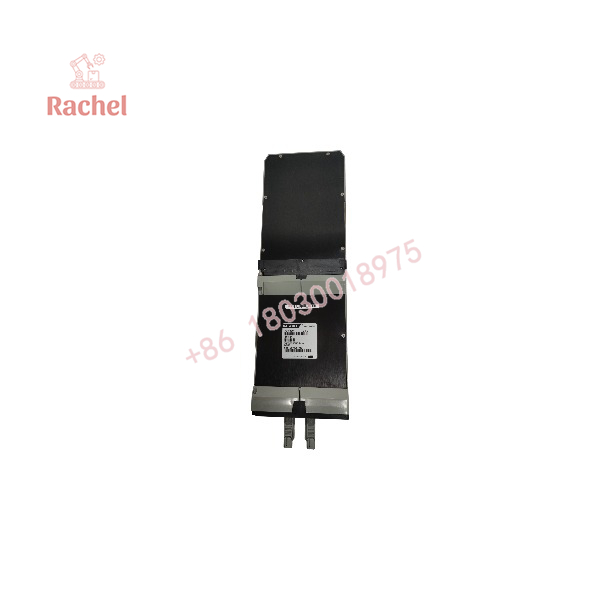

FBM02

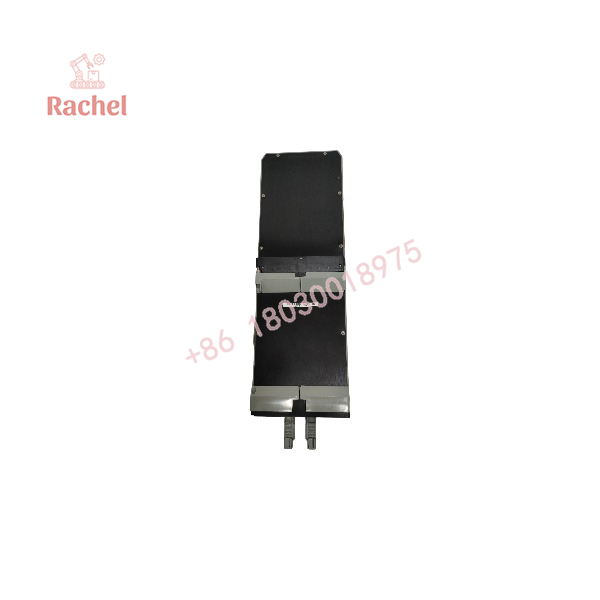

FBM02
Dimensions, Mounting & Connection Notes
The published FBM02 specification gives an approximate mass of 1 kg. Mounting options depend on the installed adapter and enclosure arrangement:
- With a Y-adapter, the module can be installed in the specified 1×8 mounting structure, I/A Series Industrial Enclosures, and Field Enclosure 8.
- Without a Y-adapter, the documented options include Field Enclosure 4 and the 1×8 FBM mounting structure.
The product specification describes three termination styles:
- Discrete-wire block: 16 screw-clamp terminals.
- Direct-connection block: 16 screw-clamp terminals.
- Plug-connector block: 34-pin connector, with specified compatible Burndy plug types or equivalents.
The reference-junction connection also differs by termination style. Some cable assemblies provide a 100 Ω platinum RTD internally, while the plug-termination arrangement requires the user to provide the RTD connection.
Before installation, check the existing assembly’s identification and connector style. Do not rely on the FBM02 designation alone to determine terminal assignments or cable compatibility.
Applications & System Role
The FBM02 is intended for temperature and low-level millivolt acquisition within Foxboro I/A Series process-control systems.
Typical application areas include:
- Process temperature monitoring: Collecting thermocouple signals from industrial process equipment.
- Thermal process control: Supplying temperature measurements to DCS control and monitoring functions.
- Plant instrumentation: Acquiring low-level millivolt signals compatible with the module’s input range.
- Legacy DCS maintenance: Replacing or maintaining an installed FBM02 subsystem.
- Control-system refurbishment: Matching field termination hardware and module configuration during system restoration.
The FBM02 is an input interface module, not a standalone temperature controller. Its role is to acquire and convert field signals for the associated control system.
Detailed Product Overview
Signal acquisition and conversion
The FBM02 receives signals from thermocouples and compatible millivolt sources. It provides eight isolated input channels and converts the analog signals into digital values for transmission through the redundant Fieldbus.
The specified input range is −10.5 to +71.41875 mV DC. Thermocouple types listed in the product specification include B, E, J, K, S, T, and N. Sensor compatibility must be checked against the configured measurement range and application requirements.
Reference-junction compensation
Thermocouples measure temperature through a voltage difference between junctions. Accurate temperature calculation therefore depends on reference-junction compensation.
The FBM02 provides one isolated reference-junction compensation channel. Depending on the termination arrangement, the 100 Ω platinum RTD may be supplied within the termination cable assembly or connected by the user. The reference-junction hardware should be checked whenever a module or termination assembly is replaced.
Accuracy and integration settings
The product specification lists millivolt-input accuracy of ±0.035% of span and thermocouple conformity of ±0.25°C. It also provides configurable integration periods. Shorter integration settings support faster updates, while longer integration periods can provide greater filtering of process noise and power-line interference.
The specified update and settling times vary with the selected integration period. Engineers should select settings according to the required response time and signal stability rather than treating the module’s maximum resolution as a guarantee of overall loop accuracy.
Fieldbus and power requirements
The FBM02 communicates through the redundant Fieldbus and has a specified redundant input voltage range of 26–42 V DC. Maximum power consumption and heat dissipation are each listed as 9 W.
During commissioning or troubleshooting, verify supply conditions, Fieldbus communication, channel configuration, and the reference-junction measurement. Check the system’s configured channel assignments against the actual field wiring before enabling closed-loop control.
Legacy replacement considerations
For legacy I/A Series installations, compatibility depends on more than the module name. The termination assembly, enclosure, adapter, Fieldbus configuration, reference-junction connection, and software settings can all affect whether a replacement will operate correctly.
Where a newer FBM202 is being considered, confirm the appropriate termination assembly and conversion mounting arrangement using the applicable Foxboro documentation. Functional similarity alone does not establish drop-in compatibility.
Frequently Asked Questions
Q1. What is the FOXBORO FBM02?
It is a thermocouple/mV input interface module for the Foxboro I/A Series DCS.
Q2. How many input channels does the FBM02 have?
It provides eight isolated, independent thermocouple/mV input channels and one isolated reference-junction compensation channel.
Q3. What is the input signal range?
The published range is −10.5 to +71.41875 mV DC.
Q4. Which thermocouple types are supported?
The product specification lists types B, E, J, K, S, T, and N, along with other compatible millivolt signals.
Q5. What power supply does the FBM02 require?
The specified redundant input voltage range is 26–42 V DC, with maximum power consumption of 9 W.
Q6. Does the FBM02 support redundant communication?
Yes. It connects to the redundant Fieldbus and has configurable Fieldbus-switching options.
Q7. Is the FBM02 interchangeable with the FBM202?
Do not assume direct interchangeability. The FBM202 can support functionality formerly provided by the 100 Series FBM I/O subsystem when connected to appropriate termination assemblies, but mounting, termination, wiring, and system configuration must be verified.
Q8. What should be checked before ordering a replacement?
Confirm the full model identification, termination assembly, connector style, mounting arrangement, power requirements, thermocouple types, reference-junction sensor configuration, and existing system settings.
