Product Introduction
The Foxboro FBM201 is a high-density, 16-channel analog input Fieldbus Module engineered for modern Foxboro I/A Series and EcoStruxure Distributed Control Systems (DCS). Serving as the primary workhorse for process variable acquisition, the FBM201 interfaces 0-20mA and 4-20mA current loop telemetry directly into control processors across the high-speed 200 Series Fieldbus architecture.
Compared to legacy 100 Series hardware, the FBM201 doubles channel density while significantly reducing panel footprint and power dissipation. Built with internal delta-sigma A/D converters and ruggedized signal conditioning, it delivers exceptional noise rejection and transient protection, making it ideal for maintaining tight analog control loops in harsh industrial environments.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM201 / P0914SQ |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 16 single-ended analog current inputs |
| Signal Range | 0 to 20 mA DC / 4 to 20 mA DC |
| Resolution | 15-bit A/D conversion |
| Update Rate | 25ms per channel group |
| Galvanic Isolation | Channel-to-bus galvanic and group isolation |
| Power Consumption | 3W maximum from baseplate power rails |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:00 AM at an integrated oil refinery during a heavy rainstorm. Lightning strikes near the off-site tank farm, causing an electrical surge across long instrument runs. Suddenly, 16 critical storage tank level and temperature loops drop offline at once, triggering a cascade of “BAD I/O” alarms on the main console. The culprit isn’t the field transmitters—the input stage on an old FBM201 module got fried by the common-mode voltage spike. With tank levels unmonitored, safety protocol requires throttling feed pumps. Swapping in a bench-tested FBM201 card quickly restores field communications and brings the process back online.
Target Application Scenarios
- Chemical & Petrochemical Processing: Reads flow, pressure, and temperature telemetry from 4-20mA field transmitters across reactor bays.
- Water & Wastewater Treatment: Interfaces chlorine, pH, and level sensors from remote pump houses into centralized DCS networks.
- Power Generation Facilities: Captures critical boiler drum level, steam pressure, and valve position feedback signals.
Field Case Study
A paper mill in Maine suffered intermittent channel dropouts on a critical stock-preparation headbox control loop using a 200 Series DIN-rail rack. Diagnostics confirmed a failing multiplexer on the active module. We delivered a pre-tested replacement unit overnight. The site engineer placed the control loops in manual mode, unlatched the old module, clicked the new into the DIN-rail baseplate, and restored full automatic control in under 10 minutes without shutting down the paper machine.

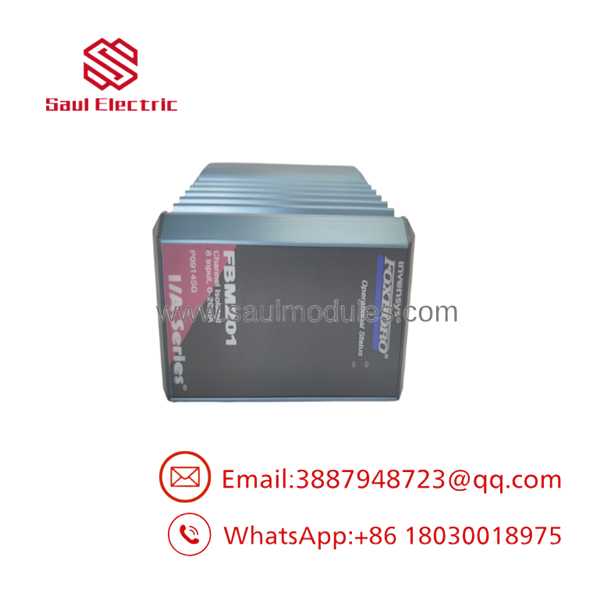

FBM201

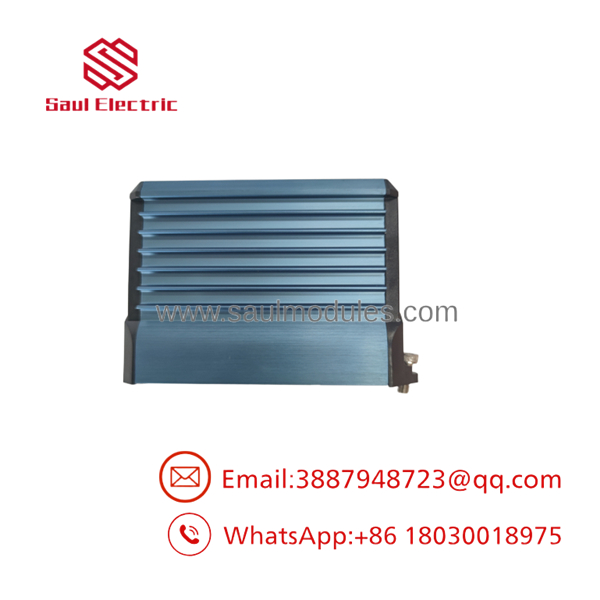

FBM201
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every module goes through an aggressive 5-point workbench validation prior to dispatch:
- Inbound Physical Verification: Visual inspection for structural damage, thermal discoloration around voltage regulators, PCB trace integrity, and connector pin wear.
- Backplane & Resistance Diagnostics: Cold-resistance checks across power supply pins and input channels to rule out internal short circuits caused by overvoltage events.
- Live Baseplate Bus Handshake: Module is mounted on a live Foxboro 200 Series baseplate powered by a Control Processor (CP) to verify bus communications, module identification, and LED status routines.
- 16-Channel Current Loop Calibration: Precision loop calibrators inject 4.0mA, 12.0mA, and 20.0mA step signals into all 16 channels simultaneously to verify A/D conversion accuracy and channel-to-channel tracking.
- Anti-Static ESD Packaging: Cleared modules receive electrical contact cleaning, solvent wash, and are sealed in anti-static ESD bags before custom foam packing.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse (0-20mA) with FBM204 (0-10V)!
They share identical physical enclosures and 200 Series form factors. However, plugging a 4-20mA loop into a voltage module like the FBM204—or vice versa—will cause invalid software readings and potential channel damage. Always verify the part number sticker (P0914SQ) before installation.
- ❗ Verify Termination Assembly (TA) Cable Connections.
The routes field wiring through external Termination Assemblies via multi-pin cables. If multiple channels read zero or unstable values after a swap, check for bent connector pins or loose locking screws on the TA interface cable.
- ⚠️ Confirm Baseplate Slot Address.
While 200 Series modules auto-identify on the Fieldbus, ensure the module is installed into the exact baseplate slot defined in the I/A Series System Definition (SysDef). Placing the module in an unconfigured slot will flag a hardware mismatch in the DCS software.
- ❗ Put Affected Loops in Manual Mode Before Extraction.
The supports hot-swapping under powered conditions. However, pulling the module instantly sets all 16 connected input blocks to “BAD” status in the DCS, which may trip automated interlocks if control loops aren’t bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates fully support hot-swapping (Hot Swap / Live Insertion and Removal). However, always ensure all 16 control loops tied to that card are set to Manual or bypassed in the software before pulling the module.
Q: What is the key difference between the legacy FBM01 and the ?
A: The legacy FBM01 is a larger 100 Series module with 8 input channels. The belongs to the compact 200 Series DIN-rail family, doubling density to 16 channels, providing faster processing, and requiring less cabinet space.
Q: How does the handle 4-20mA signals on a 0-20mA range?
A: The hardware measures the full 0 to 20mA spectrum. In the DCS database, the Analog Input (AIN) software block handles scaling by configuring 4mA as 0% (Lower Technical Limit) and 20mA as 100% (Upper Technical Limit).
Q: What warranty covers these pre-tested modules?
A: Every sold carries a full 12-Month Functional Warranty. If the card experiences hardware failure under standard operating conditions within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy surplus or pre-tested stock instead of ordering directly from the OEM?
A: OEM lead times for hardware replacements can stretch into weeks or months, and factory pricing for older DCS generation hardware can be prohibitively expensive. Pre-tested surplus stock allows you to restore critical plant operations immediately at a fraction of the cost.
