Description
Product Introduction
The Foxboro FBM215 (Part Number P0922AH) is a specialized 8-channel output Fieldbus Module designed for the Foxboro I/A Series and EcoStruxure DCS platforms. Unlike standard input cards, the FBM215 drives field output devices—such as control valve positioners, variable speed drives, and trip solenoids—while simultaneously providing two-way HART (Highway Addressable Remote Transducer) digital communication pass-through.
By combining primary demand signal outputs with background HART diagnostics, the FBM215 enables control room operators and asset management software to continuously monitor device status, actuator travel times, supply pressures, and health alerts without interrupting process control. High-grade optical and galvanic channel isolation protects the host 200 Series baseplate from field noise, high-voltage transients, and ground potential differences.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM215 / P0922AH |
| Series | Foxboro 200 Series Subsystem |
| Output Channels | 8 isolated output channels with integrated HART modems |
| Communication Protocol | Output Control Signals + Pass-Through HART (v5/v6/v7) |
| Isolation Voltage | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 4.0W maximum from baseplate power rails |
| Mounting | Foxboro 200 Series DIN-rail baseplate (P0926KE or equivalent) |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 03:30 AM at a petrochemical refining unit. An critical control valve regulating boiler feed water stalls at 45% position during a load change. The main DCS shows the control block output at 68%, but the smart positioner fails to respond to new positioning commands while reporting a “HART Output Modem Offline” diagnostic on Channel 3. The onboard HART modem on an aging FBM215 card degraded, preventing modern positioner calibration frames from reaching the valve. Replacing the module with a bench-verified FBM215 (P0922AH) unit instantly re-establishes the digital communication pathway, allowing the positioner to perform a remote auto-stroke calibration and restoring normal feed water control before a thermal trip occurs.
Target Application Scenarios
- Smart Valve Positioners & Actuators: Sends demand positioning signals while polling real-time valve diagnostics (dynamic error, packing wear, supply air pressure).
- Variable Frequency Drives (VFDs): Controls drive speed demands while retrieving internal VFD diagnostic health and motor operating metrics via HART.
- Emergency Shutdown (ESD) Solenoids: Drives trip solenoids while executing partial stroke testing (PST) and capturing automated diagnostic feedback.
Field Case Study
A natural gas processing facility in Louisiana lost HART asset management pass-through across 8 critical control valve loops connected to a Foxboro 200 Series baseplate. Diagnostics pointed to a failed modem power rail on the active module. A bench-tested P0922AH replacement was dispatched overnight. The site team placed the active valve loops into manual bypass, hot-swapped the module on the powered rack, and restored demand outputs and HART diagnostics within 15 minutes.

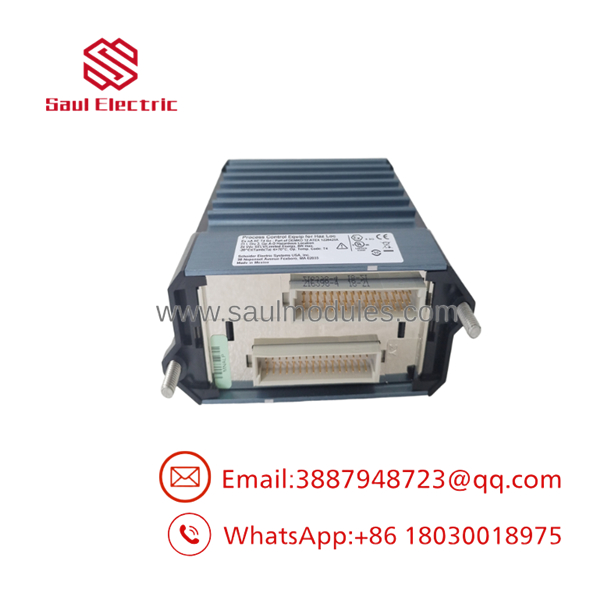

FBM215

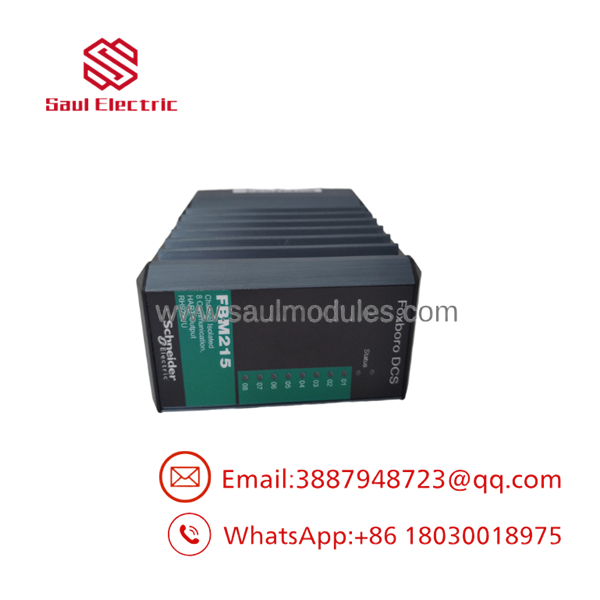

FBM215
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every / P0922AH module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Thorough inspection under 10x magnification to examine PCB trace health, edge-connector gold plating, locking tab integrity, and check for signs of thermal fatigue.
- Cold Power Rail Diagnostics: Resistance checks across power conversion circuitry, internal bus rails, and modem drivers to rule out component shorts or failed surge suppressors.
- Live Baseplate Bus Handshake: Module is slotted into a live Foxboro 200 Series baseplate connected to a Control Processor to confirm bus address recognition, module handshake, and proper status LED routines.
- 8-Channel Output & HART Communication Test: Smart positioners and precision loop calibrators are connected to all 8 output channels simultaneously. We verify analog/discrete output driver response while validating bidirectional FSK HART frequency modem handshakes and pass-through software telemetry.
- Anti-Static ESD Packaging: Cleared modules are solvent-cleaned, thoroughly dried, and sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse (HART Output) with FBM214 (HART Input)!
They share the same 200 Series form factor, but the is an Output card while the FBM214 is an Input card. Swapping an input card into an output module slot will fail database checks and prevent field device control.
- ❗ Verify Termination Assembly (TA) & Loop Resistance.
HART communications require adequate loop impedance (typically 230–250 Ω) to modulate FSK digital signals onto the loop. Ensure your Termination Assembly (TA) and field wiring meet Foxboro loop guidelines to prevent signal dropouts.
- ⚠️ Set Output Safety Fallback Modes.
The allows channel fallback state configuration (Hold Last Value or Fail to Zero/Preset) in the event of a DCS bus communication interruption. Always verify safety fallback parameters in the control database before putting new hardware live on critical loops.
- ❗ Bypass Active Loops Before Hot-Swapping.
While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an card immediately drops driving signals to all 8 output channels, which will cause connected field valves or drives to go to their fail-safe states. Place field loops in local manual bypass prior to extraction.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module cuts signal outputs to all 8 channels. Always transfer downstream valves, drives, or solenoids to manual bypass prior to removing the card.
Q: What is the exact difference between part numbers and P0922AH?
A: “” is the functional model designation used in DCS engineering and software documentation, while “” is the exact Foxboro hardware part number stamped on the module’s housing and PCB. They refer to the exact same physical product.
Q: Does the support both digital discrete and HART analog outputs?
A: Yes, the handles output control commands while maintaining full pass-through HART digital signal modulation for compatible smart field positioners and output transducers.
Q: What warranty covers these pre-tested modules?
A: Every () module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?
A: Factory lead times for specialized Foxboro 200 Series HART modules can stretch into weeks or months, and factory list pricing for mature platform hardware is high. Pre-tested surplus stock allows you to restore critical plant output loops and HART asset diagnostics immediately at a fraction of the cost.
