Core Product Summary
The Foxboro FBM201d (often styled as FBM201/d) is an 8-channel analog input fieldbus module engineered for the Foxboro I/A Series and EcoStruxure Foxboro Distributed Control System (DCS) architectures. It is specifically designed to accept and process DC voltage signals ranging from 0 to 10 V DC originating from field-mounted analog sensors and transmitters.
The module handles high-precision analog-to-digital signal conversion locally, routing digitized process variables securely over a redundant 2 Mbps fieldbus network to system control processors. Featuring strict channel-to-channel galvanic isolation and robust environmental packaging, the FBM201d ensures reliable data acquisition in harsh industrial control facilities.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | 8-Channel Analog Input Module (Voltage) |
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS (200 Series I/O) |
| Input Channels | 8 isolated and independent channels |
| Input Signal Range | 0 to 10 V DC |
| Input Channel Impedance | 10 MΩ nominal |
| Analog Accuracy | ±0.03% of span (including linearity) |
| A/D Conversion | Independent Sigma-Delta converter per channel |
| Module Power Supply Input | Redundant 24 V DC (+5%, -10%) |
| Power Consumption / Dissipation | 7 W maximum / 4 W heat dissipation (typical for series architecture) |
| Isolation Rating | Withstands 600 V AC for 1 minute between channels and ground |
Detailed Product Overview
The Foxboro FBM201d serves as a dependable measurement interface for high-level voltage outputs common in process measurement equipment. Each of its eight input channels utilizes independent sigma-delta analog-to-digital conversion paired with high input impedance (10 MΩ) to guarantee precise tracking of fast-changing or steady-state voltage loops without placing excessive load on field transmitters.
System configuration parameters—such as integration periods and rate-of-change limits—are managed directly through the host control environment. Physical installation relies on a modular baseplate framework that supports redundant power feeds and dual-pathed 2 Mbps fieldbus communications. Furthermore, strict galvanic isolation on every channel protects internal control networks against high common-mode voltage transients and ground faults typical of heavy industrial floors.

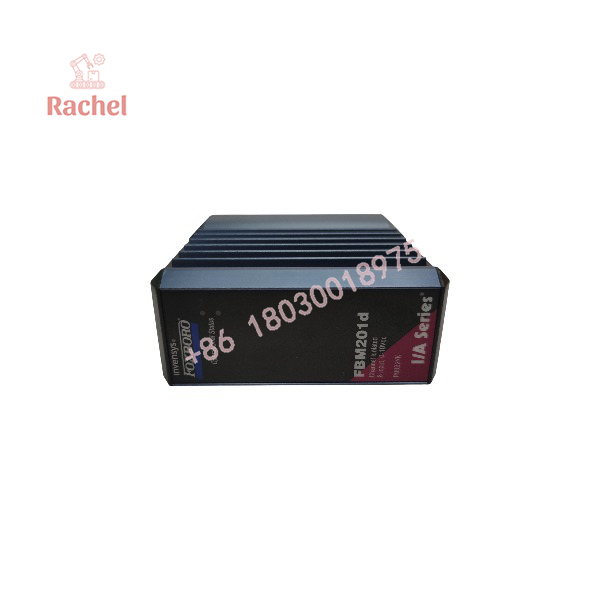

FBM201D

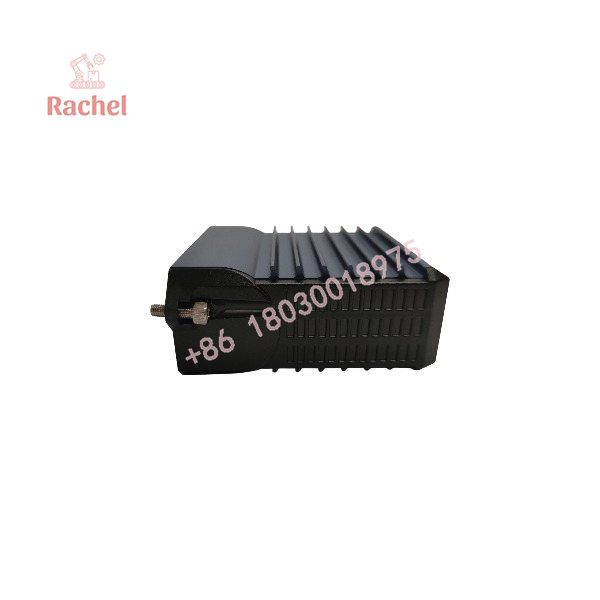

FBM201D
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Control System Platform | Foxboro I/A Series DCS / EcoStruxure Foxboro DCS | Connects via modular 200 Series baseplate infrastructure. |
| Communication Network | Redundant 2 Mbps fieldbus (Path A and Path B) | Interfaces with system processors (e.g., FCP) seamlessly with automatic path switching. |
| Termination Assemblies (TAs) | DIN-rail mounted TAs (Compression or Ring-Lug styles using Polyamide material) | Interfaced via standard 37-pin to 25-pin subsystem transition cables up to 30 meters long. |
| Environmental Enclosure | Certified for harsh environments up to ISA Standard S71.04 Class G3 | Designed with a rugged extruded aluminum or durable polymer housing suited for industrial plant spaces. |
Dimensions, Mounting & Connection Notes
- Form Factor: Compact modular plug-in card designed to occupy a single slot on a 200 Series modular baseplate.
- Mounting Options: Baseplates mount directly onto standard horizontal DIN rails or inside 19-inch equipment racks.
- Wiring Termination: Field signals route through a separate DIN-rail mounted Termination Assembly (TA) connected via multi-core system cables.
- Hot-Swapping Support: Engineered to allow module removal and insertion under power without disturbing field-side wiring or system communication trunk lines.
FAQ
What is the Foxboro FBM201d?
The Foxboro FBM201d is an 8-channel analog input fieldbus module built specifically to process 0 to 10 V DC voltage signals within Foxboro distributed control systems.
How does the FBM201d interface with the control processors?
It communicates across a redundant 2 Mbps fieldbus network linked to system field control processors, automatically failing over to the secondary communication path if the primary path drops.
Are the input channels isolated from one another?
Yes, each of the eight input channels features independent galvanic isolation from other channels and system ground, rated to withstand 600 V AC for one minute.
Can the module be replaced while the system is powered on?
Yes, the design permits online module replacement (hot-swapping) without disconnecting field wiring, base power, or network data cables.
What type of termination assemblies are used with this module?
It uses dedicated DIN-rail mounted termination assemblies available in compression screw or ring-lug configurations connected via standard subsystem cables.
