Description
Core Product Summary (Brand / Model / Key Attributes)
The Foxboro FBM207 is a 16-channel Voltage Monitor/Contact Sense Input Module for the Foxboro I/A Series and EcoStruxure Foxboro DCS 200 Series I/O subsystem. It monitors discrete DC voltage levels or contact/solid-state switch states and converts them to digital values on the redundant module Fieldbus.
The module supports voltage monitoring at 15–60 VDC, 120 VAC/125 VDC, and 240 VAC (via appropriate termination assemblies). Each channel is galvanically isolated. Configurable input filtering (4/8/16/32 ms or none), pulse counting up to 250 Hz, and support for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events application programs are provided. The module may be installed singly or as a redundant pair.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Voltage Monitor / Contact Sense Input Module |
| Input Channels | 16 isolated and independent discrete inputs |
| Supported Functions | Voltage monitoring or contact/solid-state switch sensing |
| Voltage Ranges (via TA) | 15–60 VDC; 120 VAC/125 VDC; 240 VAC |
| Logic One (On-State) – Voltage Monitor | 15 to 60 VDC |
| Logic Zero (Off-State) – Voltage Monitor | 0 to 5 VDC |
| Input Current (typical) | 1.4 mA at 5–60 VDC |
| Source Resistance Limits | On-state ≤ 1 kΩ at 15 VDC; Off-state ≥ 100 kΩ at 60 VDC |
| Filter / Debounce Time | Configurable: None, 4 ms, 8 ms, 16 ms, or 32 ms |
| Pulse Count Accuracy | No missing pulses for rates 0 to 250 Hz |
| Isolation | Galvanic isolation (channel-to-channel and channel-to-ground); group isolation with external excitation |
| Communication | Redundant 2 Mbps module Fieldbus |
| Power Supply (Redundant) | 24 V DC +5 % / –10 % |
| Environmental Rating | Suitable for Class G3 (harsh) environments |
| Application Programs | Discrete Input, Ladder Logic, Pulse Count, Sequence of Events |
| Redundancy | Single module or redundant pair with common termination assembly |
| Typical Part Number | P0914TD (and related revisions) |
Detailed Product Overview
The Foxboro FBM207 provides high-density discrete input acquisition for voltage presence or contact status in industrial control systems. Field signals connect through a voltage-matched termination assembly. For voltages above 60 VDC the termination assembly incorporates signal attenuation and optical isolation. Each of the 16 channels is independently galvanically isolated from the other channels and from system ground.
In voltage-monitor mode the module detects the presence or absence of DC voltage within the defined on/off thresholds. In contact-sense configurations (or when used with external excitation) it detects open or closed states of dry contacts or solid-state switches. Configurable digital filtering rejects contact bounce or electrical noise while still supporting pulse rates up to 250 Hz without missing counts.
The module executes Discrete Input, Ladder Logic, Pulse Count, or Sequence of Events application programs, giving flexibility for status monitoring, interlock logic, high-speed event capture, or SOE recording. It communicates with the associated Fieldbus Communications Module or Field Control Processor over the redundant 2 Mbps module Fieldbus. For critical applications the FBM207 can be installed as a redundant pair sharing a common termination assembly, with control software managing the redundancy.
The design is rated for Class G3 harsh environments and follows standard 200 Series mechanical and power conventions.
FBM207

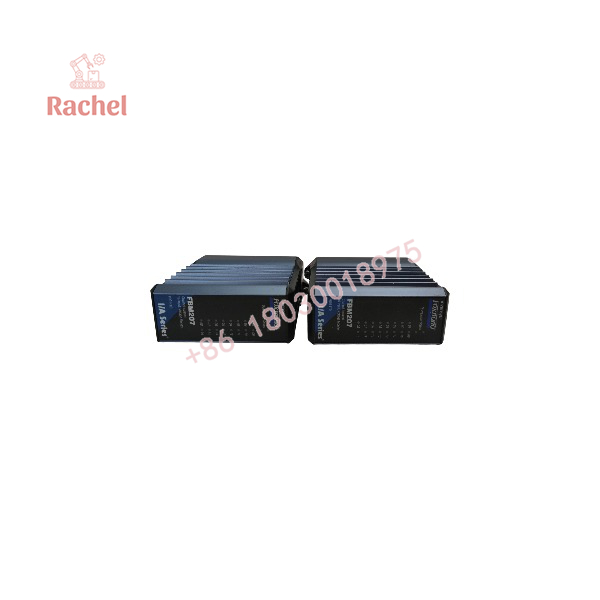

FBM207
Engineering Selection Highlights
- Choose FBM207 when 16 channels of discrete voltage monitoring or contact sensing are required across mixed voltage levels.
- Match the termination assembly to the actual field voltage (60 VDC, 120/125 V, or 240 V) to obtain correct attenuation and isolation.
- Use the configurable filter times to balance noise rejection against response speed for the application.
- Select pulse-count or Sequence of Events programs when high-speed event capture or accurate totalization is needed.
- Install as a redundant pair when the discrete signals are critical to plant control or safety interlocks.
- Confirm that the control software is configured for the appropriate application program and, if used, the redundant discrete input blocks.
- Verify source-resistance limits and wetting current compatibility with the field devices.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS | 200 Series Fieldbus Module subsystem |
| Fieldbus | Redundant 2 Mbps module Fieldbus | Connects to FCM or FCP |
| Power Supply | Redundant 24 V DC +5 % / –10 % | Standard 200 Series baseplate power |
| Termination Assembly | Voltage-matched TA (60 VDC / 120-125 V / 240 V) | Higher-voltage TAs include attenuation and optical isolation |
| Redundancy | Optional redundant pair | Requires redundancy adapter and common TA |
| Application Programs | Discrete Input, Ladder Logic, Pulse Count, SOE | Configurable filter time and program options |
| Environmental | Class G3 (harsh) | Suitable for industrial process areas |
Dimensions, Mounting & Connection Notes
The FBM207 is a standard 200 Series Fieldbus Module (approximately 102–114 mm high × 45 mm wide × 104 mm deep including mounting features). It mounts on a DIN-rail or modular baseplate. Field wiring is terminated on a dedicated termination assembly that may be local or remote. Higher-voltage termination assemblies contain additional conditioning circuitry. When used in a redundant pair the two modules share a single common termination assembly via a redundancy adapter. Installation follows normal 200 Series practices and must remain within Class G3 environmental limits.
FAQ
What is the Foxboro FBM207?
The Foxboro FBM207 is a 16-channel Voltage Monitor/Contact Sense Input Module that monitors discrete DC voltages or contact states for the I/A Series and EcoStruxure Foxboro DCS.
What voltage levels does it support?
Via the appropriate termination assembly it supports 15–60 VDC voltage monitoring and 120 VAC/125 VDC or 240 VAC monitoring or switch inputs.
How many channels does it have?
Sixteen isolated and independent discrete input channels.
Can the module be used redundantly?
Yes. It may be installed as a single module or as a redundant pair sharing a common termination assembly.
What filtering options are available?
Input filter/debounce time is configurable: none, 4 ms, 8 ms, 16 ms, or 32 ms.
Does it support pulse counting?
Yes. It captures pulses without missing counts for rates from 0 to 250 Hz.
What application programs does it execute?
Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events programs.
Verification & Troubleshooting Notes
- Confirm module identity by the FBM207 designation and part number on the label and by successful recognition on the Fieldbus.
- Verify that the termination assembly matches the field voltage level in use.
- Check that the 24 V DC redundant power is present and within tolerance.
- Observe channel status in the control system; incorrect on/off thresholds usually indicate a mismatch between field voltage and the selected TA.
- Review the configured filter time if contact bounce or noise is suspected.
- For redundant installations, confirm both modules of the pair are online and that control software is using the corresponding redundant discrete input blocks.
- Module replacement should be performed only after verifying power, Fieldbus integrity, and correct termination assembly matching.
