Product Introduction & Engineering Value
I’ve swapped more than a few of these over the years when plants decided to keep their existing 4-20 mA wiring but wanted device diagnostics and configuration data without running a second bus. The FBM214 sits on the standard 2 Mbps Module Fieldbus and acts as a HART master for up to eight field devices in point-to-point mode.
Each channel reads the analog current while simultaneously exchanging HART messages at 1200 baud. Group isolation keeps the eight loops electrically separate from module logic and ground. It remains a practical choice for plants that still run mixed analog-only and HART transmitters on the same baseplate.
Technical Specifications
Channels: 8 group-isolated
Supported Signals: 4-20 mA analog or HART FSK superimposed on 4-20 mA
HART Protocol: Version 6, point-to-point, master/slave, half-duplex, 1200 baud
Message Rate: 2 messages per second
Accuracy (includes nonlinearity): ±0.03% of full scale
Temperature Coefficient: 50 ppm/°C
Resolution: 15 bits
Update Rate: 100 ms
Sense Resistor: 61.9 Ω nominal
Total Input Resistance: 280 Ω minimum
Compliance Voltage: 18 V dc minimum at 20.5 mA
Power Requirements: 24 V dc ±5% (redundant), 7 W maximum
Operating Temperature: –20 to +70 °C (–4 to +158 °F)
Field Application & The “Trench” Experience
A Midwest chemical plant had eight critical level transmitters on a solvent recovery column that were still pure 4-20 mA. When they upgraded the transmitters to HART models during a turnaround, the existing FBM214 cards already in the cabinet accepted the new devices without any wiring changes. We simply enabled the HART ECB blocks, confirmed two messages per second were returning, and walked away. The analog values continued to update at the original scan rate; the only addition was remote range checking and status bits that previously required a handheld communicator at the vessel.
Niche applications that fit this module well:
- Multi-variable pressure and temperature transmitters on a high-pressure hydrogenation reactor where both process value and secondary variables are needed
- Flow transmitters on a batch reactor feed system that must report totalizer and diagnostic status over the same pair of wires
- Density and level probes on a storage tank farm where the control system still treats the primary variable as 4-20 mA but occasionally polls HART status

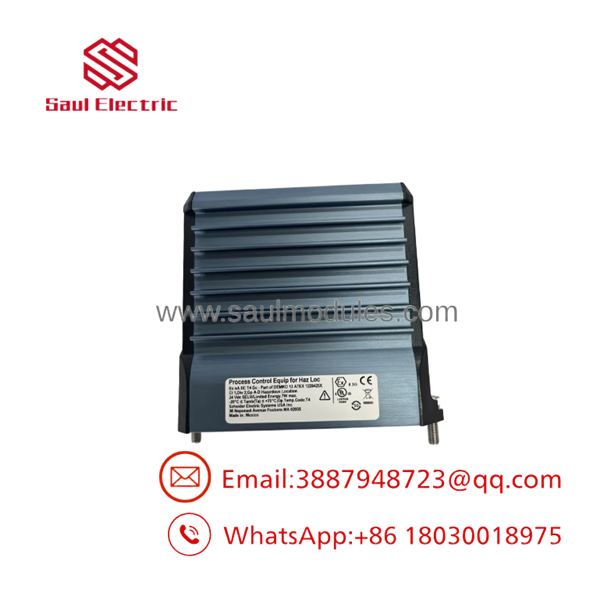

FBM214

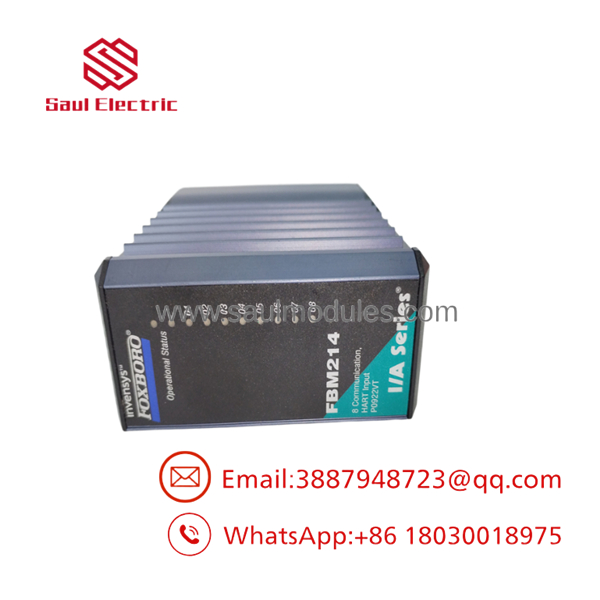

FBM214
Transparency SOP: QA & Testing
- Visual inspection of housing, connectors, and original labeling
- Power-up on a dual 24 V supply with Fieldbus link verification
- Analog accuracy sweep from 4 mA to 20 mA on every channel against a calibrated source
- HART communication test with a known good device on each channel (command 0 and command 3 responses confirmed)
- Isolation resistance check between the channel group and module logic
- Extended temperature soak while monitoring for communication dropouts or analog drift
The Veteran’s Tech Trap Guide
⚠️ Group isolation is not channel isolation. All eight loops share a common reference inside the module. Mixing externally powered and internally powered transmitters across the group without checking the Termination Assembly wiring diagram is a classic way to introduce ground loops that only appear under load.
PRO TIP: The FBM214 does not support HART burst mode. If a field device is left in burst mode it will flood the channel and you will lose reliable command responses. Always verify the device is set to polled mode before commissioning.
⚠️ Termination Assembly compatibility. The older group-isolated FBM214 uses different TAs than the later channel-isolated FBM214b. Using the wrong TA produces either open channels or incorrect power routing. Confirm the exact part number (commonly in the P0916BX / P0926EA family) against the original installation drawings.
Dynamic FAQ
Q: Does the FBM214 support both analog-only and HART devices on the same module? A: Yes. Any mix of standard 4-20 mA transmitters and HART devices is allowed on the eight channels.
Q: What is the practical difference between FBM214 and FBM214b? A: The original is group-isolated. The FBM214b provides individual channel isolation and is the preferred replacement in new or upgraded installations. Functionally both handle HART and 4-20 mA the same way.
Q: Can I poll secondary variables and device status from a HART transmitter? A: Yes. The module acts as a HART master and supports universal, common-practice, and device-specific commands at two messages per second per channel.
Q: Is calibration required after installation? A: No. The module and its Termination Assembly leave the factory calibrated. No field adjustment is possible or needed.
Q: Are New Surplus units original Foxboro product? A: Yes. Units are original OEM material that have passed full analog accuracy and HART communication testing before shipment.
Q: What warranty is provided? A: 12-month warranty covering defects in materials and workmanship from date of shipment for both New Surplus and fully tested refurbished modules.
