Description
Product Introduction
The Foxboro FBM217 with hardware code RH916XZ is a RoHS-compliant, high-density 32-channel discrete input Fieldbus Module engineered for Foxboro I/A Series and EcoStruxure DCS platforms. While older legacy revisions carry part numbers beginning with “P” (such as P0917JW or P0916JW), the “RH” prefix designates the modern, RoHS-compliant direct equivalent manufacturing run built to meet strict lead-free and environmental safety standards while maintaining 100% functional drop-in compatibility.
Designed to maximize cabinet channel density, the FBM217 RH916XZ processes 32 binary state inputs—such as motor auxiliary contacts, limit switches, relay status feeds, and pushbuttons—within a single 200 Series DIN-rail baseplate slot. Onboard electronics execute sequence-of-events (SOE) timestamping, configurable digital filtering, and ladder logic processing, backed by high-grade optical isolation to shield host Control Processors from field voltage surges and electrical noise.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number / Part Code | FBM217 / RH916XZ (RoHS Equivalent to P0917JW / P0916JW) |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 32 discrete input channels (Group Isolated) |
| Input Configurations | External DC Voltage Monitor or Contact Sense (via matching TA) |
| Environmental Compliance | RoHS Compliant (Lead-Free) |
| Isolation Voltage | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 3.5W maximum from baseplate power rails |
| Mounting | Foxboro 200 Series DIN-rail baseplate (P0926KE / RH916AQ or equivalent) |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:20 AM during an emergency maintenance shutdown at a refinery. The system engineer is replacing a faulty 32-channel discrete input module on a critical safety interlock rack. The original module on the schematic was listed as P0917JW, but the replacement unit pulled from warehouse reserve is labeled RH916XZ. Fearing a firmware or hardware incompatibility, the tech pauses work. After verifying that RH916XZ is simply Schneider’s RoHS-compliant part code for the exact same FBM217 module, the card is slotted into place. The baseplate recognizes the module instantly, clearing all 32 channel fault alarms without requiring database edits or software re-flashing.
Target Application Scenarios
- High-Density Switchgear & MCC Status: Reads run, stop, fault, and trip auxiliary contact states across extensive motor banks and breaker panels.
- Large Valve Manifold Monitoring: Processes open and close limit switch feedback across dense pneumatic and hydraulic valve blocks.
- Central Safety & Interlock Panels: Captures high-channel-count ESD pushbuttons, gas detection trip points, and panel door limit switches directly into DCS logic.
Field Case Study
A chemical manufacturing plant in Texas experienced signal drops across 32 vessel mixer status lines connected to a Foxboro 200 Series DIN-rail baseplate. Diagnostics flagged internal bus transceiver degradation on the aging installed module. We dispatched a bench-tested RH916XZ replacement module overnight. The site instrument technician placed the monitoring blocks in bypass, hot-swapped the card on the live baseplate, and restored 100% signal polling in under 10 minutes.

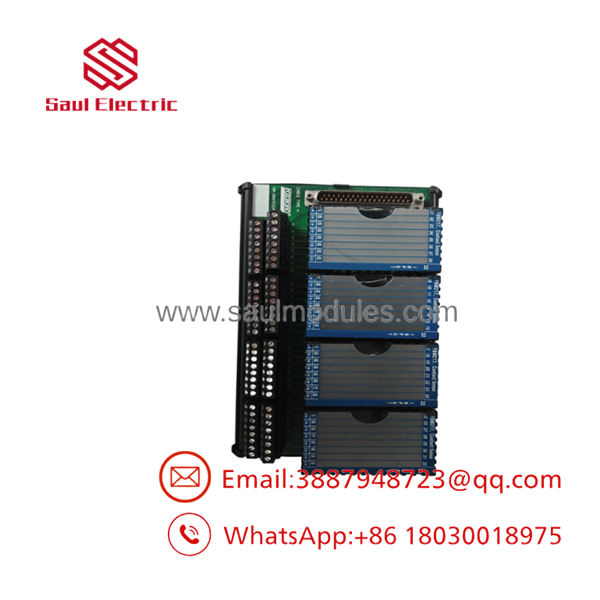

FBM217 RH916XZ

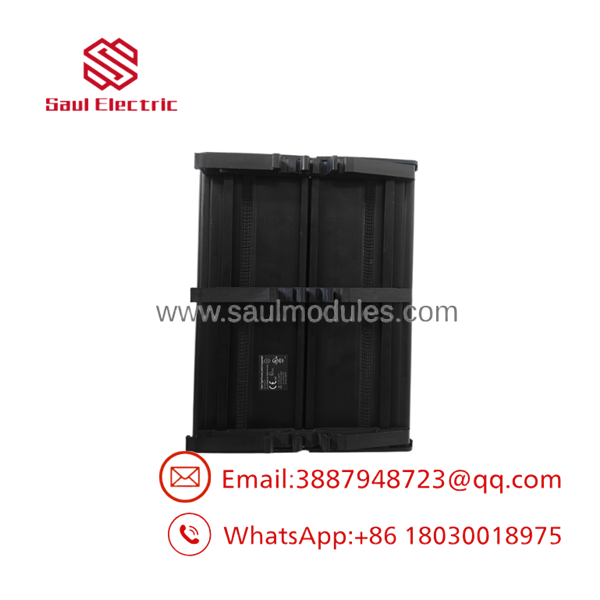

FBM217 RH916XZ
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FBM217 module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Inspection under high magnification to verify PCB trace integrity, edge-connector gold plating, housing latch mechanisms, and inspect for thermal stress on optocoupler banks.
- Cold Power Rail Diagnostics: Resistance checks across internal bus rails, power conversion circuitry, and optocoupler stages to rule out shorted components or degraded protection diodes.
- Live Baseplate Bus Handshake: Module is slotted into a live Foxboro 200 Series baseplate connected to a Control Processor to verify bus address recognition, module handshake, and proper status LED routines.
- 32-Channel High-Density State Test: Precision signal simulators toggle all 32 input channels simultaneously across open and closed logic states. We verify rapid state transitions, software timestamping, and input status LED synchronization in Foxboro I/A system software.
- Anti-Static ESD Packaging: Cleared modules are solvent-cleaned, thoroughly dried, and sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Part Code Cross-Reference: vs. P0917JW / P0916JW.Do not worry if your engineering drawings specify “P0917JW” or “P0916JW” while your physical replacement module is marked “”. The “RH” designation simply indicates Schneider Electric’s RoHS-compliant (lead-free) hardware run. They are 100% functionally and mechanically interchangeable.
- ❗ Verify Termination Assembly (TA) Power Sourcing.Depending on whether your field wiring uses external DC voltage monitoring or dry contact sensing, ensure you match the FBM217 with the correct high-density Termination Assembly (such as P0917JY or P0917JX / RH917JY). Wiring external field voltage into a dry-contact TA configuration can damage channel optocouplers.
- ⚠️ Group Isolation Boundaries.Because the packs 32 channels into a single module, channels are isolated in groups rather than individually per channel. Ensure your field wiring commons match the isolation group boundaries specified in Foxboro wiring guidelines to prevent ground loops.
- ❗ Bypass Active Logic Before Hot-Swapping.While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an module forces all 32 connected discrete channels to “BAD” status simultaneously, which will trigger automated system trips if safety interlock blocks aren’t bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module forces all 32 connected discrete channels to “BAD” status in the DCS. Place all affected control, alarm, and safety interlock blocks in Manual or Bypass mode prior to extraction.
Q: What is the exact relationship between and P0917JW / P0916JW?
A: “” is Schneider Electric’s RoHS-compliant hardware part number for the Foxboro 32-channel discrete input module. “” (assembly number) and “P0916JW” (board number) are legacy non-RoHS part numbers for the exact same module. is a direct drop-in replacement.
Q: Does the supply internal contact wetting power?
A: Contact wetting power availability depends on the specific Termination Assembly (TA) connected to the module. Certain TAs provide internal 24V DC loop power for dry field contacts, while others are designed for external DC voltage monitoring.
Q: What warranty covers these pre-tested modules?
A: Every () module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?
A: Factory lead times for high-density Foxboro 200 Series I/O hardware can stretch into weeks or months, and factory list pricing for mature hardware platforms is high. Pre-tested surplus stock allows you to restore critical plant interlocks and high-density monitoring immediately at a fraction of the cost.
