Description
Product Introduction & Engineering Value
The Foxboro FBM230 is a four-port Field Device System Integrator (FDSI) module used to bring serial field-device data into a Foxboro DCS. Each port can be independently configured for RS-232, RS-422, or RS-485, allowing one module to interface with different types of serial equipment.
The documented Foxboro part number is P0926GU. This is not a conventional analog or discrete I/O card; it performs protocol-oriented field-device integration. Schneider Electric documentation specifically identifies the FBM230 as a four-port serial FDSI module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro / Schneider Electric |
| Model | FBM230 |
| Foxboro Part Number | P0926GU |
| Module Type | Field Device System Integrator |
| Architecture | Simplex |
| Serial Ports | 4 |
| Port Configuration | Individually software-configurable |
| Physical Interfaces | RS-232 / RS-422 / RS-485 |
| Power Input | Redundant 24 VDC +5% / -10% |
| Maximum Consumption | 7 W |
| Heat Dissipation | 7 W maximum |
| Fieldbus | 2 Mbps Foxboro fieldbus |
| Calibration | Not required |
| Environment | Designed for industrial process-control applications |
Schneider Electric’s current Foxboro documentation confirms the 24 VDC input range, 7 W maximum consumption, EMC/safety compliance information, and absence of calibration requirements.
The FBM230’s four serial ports can be configured independently, giving the module considerably more flexibility than a single-interface serial gateway.
Field Application & the “Trench” Experience
A common shutdown problem is not a failed transmitter or PLC. It is a third-party package that has stopped communicating with the DCS. The FBM230 is often the interface sitting between those worlds.
Consider a process unit with several legacy analyzers. One instrument uses RS-232, another uses RS-485, and a third requires a different serial configuration. Replacing the FBM230 with a generic serial converter may solve one connection while breaking the Foxboro DCS integration layer. The FBM230 is specifically designed to integrate field-device protocols into the DCS.
Typical applications include:
- Modbus integration for package equipment
- Serial analyzer and meter integration
- Legacy third-party PLC data acquisition
- Process-unit instrument communication through Foxboro DCS
Transparency SOP: QA & Testing
For New Surplus or Refurbished P0926GU inventory:
1. Identification check
Confirm both and P0926GU where applicable. Record the module revision, serial number, and nameplate information.
2. Physical inspection
Inspect the PCB, connectors, terminal assembly interface, mounting hardware, and enclosure. Check for corrosion, contamination, moisture exposure, damaged components, and previous repair work.
3. Power verification
Verify operation using the documented redundant 24 VDC supply specification. The maximum specified consumption is 7 W.
4. Port verification
Test the available serial interfaces using an appropriate test configuration. Verify RS-232, RS-422, and RS-485 behavior according to the configured port function.
5. DCS integration test
Where the appropriate Foxboro test environment is available, verify module communication with the DCS and confirm that configured field-device data is transferred correctly.

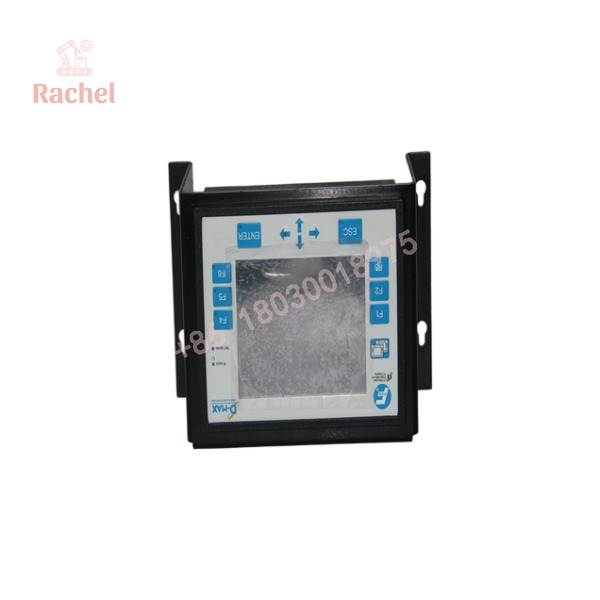

FBM230

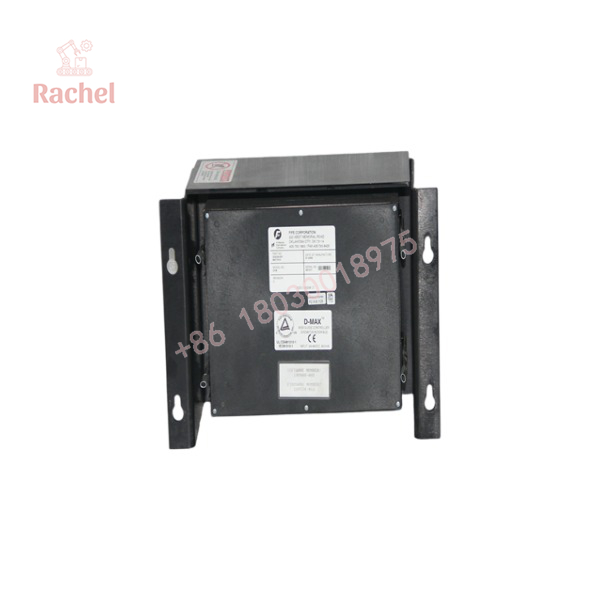

FBM230
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing FBM230 with FBM231.
The FBM231 is the redundant counterpart. FBM230 is the simplex version. Do not substitute one for the other without checking the system architecture.
⚠️ Trap #2 — Treating the four ports as identical wiring.
The ports can be configured for RS-232, RS-422, or RS-485. The software configuration and physical wiring must agree.
⚠️ Trap #3 — Forgetting the FDSI configuration.
The module is not merely a passive serial converter. Foxboro documentation describes software-configured field-device integration, including port configuration and DCI-related data mapping.
PRO TIP: When replacing an FBM230, back up the existing FDSI configuration before removing the module. Record port baud rate, stop bits, protocol driver, device address, and DCI mappings.
Dynamic FAQ
What is the Foxboro FBM230?
The is a Foxboro Field Device System Integrator (FDSI) module with four serial ports. It interfaces serial field devices with the Foxboro DCS.
What is the Foxboro part number for FBM230?
The documented Foxboro part number is P0926GU.
Which serial interfaces does FBM230 support?
Each of its four ports can be individually configured for RS-232, RS-422, or RS-485.
Is FBM230 a standard I/O module?
No. It is an FDSI communication/integration module. Its purpose is to integrate field-device communications into the Foxboro DCS rather than directly process conventional analog or discrete field signals.
Is New Surplus FBM230 acceptable for a DCS spare?
Yes, provided the exact /P0926GU identification is verified and the module passes appropriate power, communication, and—where possible—DCS integration testing.
What warranty should I request?
Request written coverage for power-up operation, all applicable serial ports, module communication, and functional performance. For refurbished stock, ask whether the actual unit was tested in a Foxboro-compatible environment or only inspected electrically.
