Description
Core Product Summary
The Foxboro FBM237 (including part variants such as P0914XS and RH914XS) is an 8-channel analog output fieldbus module engineered for the Foxboro I/A Series and EcoStruxure Foxboro Distributed Control System (DCS) architectures. It is designed to accept control outputs from system processors and drive standard 0 to 20 mA (or 4 to 20 mA) current loops to field-mounted final control elements such as valves, actuators, and positioners.
The module provides high-accuracy digital-to-analog conversion locally on each channel, supporting single-unit deployment or fault-tolerant redundant pairing (1:1 module redundancy) on a shared termination assembly. Featuring strict channel-to-channel galvanic isolation, built-in current limiting, and passive HART signal compatibility, the FBM237 ensures reliable, high-integrity process control execution in demanding industrial facilities.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | 8-Channel Analog Output Module (Current) |
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS (200 Series I/O) |
| Output Channels | 8 isolated and independent output channels |
| Output Signal Range | 0 to 20.4 mA DC |
| Output Load Capacity | 750 Ω maximum |
| Analog Accuracy | ±0.05% of span (between 0.1 mA and 20 mA) |
| Resolution | 13 bits |
| Output Processing Delay | 30 ms maximum |
| Module Power Supply Input | Redundant 24 V DC (+5%, -10%) |
| Power Consumption / Dissipation | 7 W maximum / 5 W heat dissipation |
| Isolation Rating | Withstands 600 V AC for 1 minute between channels and ground |
Detailed Product Overview
The Foxboro FBM237 functions as a dedicated current loop driver interfacing between control processors and final control devices. Each of its eight channels features independent digital-to-analog conversion, current regulation, and galvanic isolation, protecting internal bus logic from common-mode voltage spikes and field-induced electrical noise.
While the module handles standard analog control loops, its output circuitry meets high-impedance requirements for passive co-existence with HART-enabled instruments, allowing handheld communicators to query field devices without loop disruption. For critical loops requiring high availability, two FBM237 modules can be configured as a redundant pair on a single termination assembly, allowing seamless master-tracker tracking and online live replacement of a faulted unit without tripping process outputs.

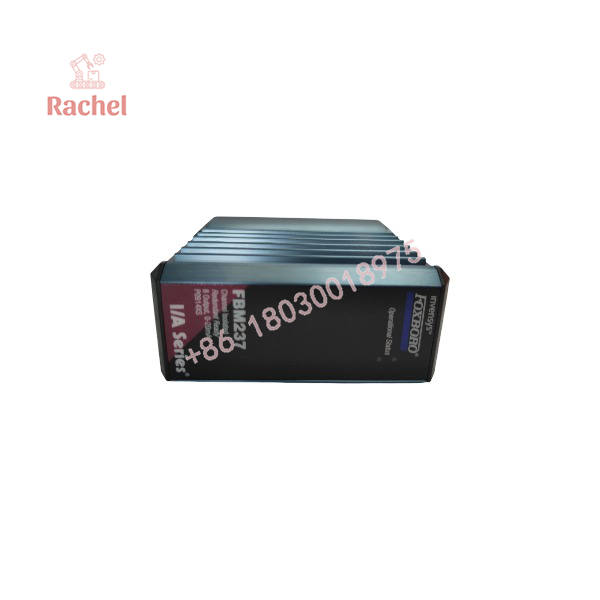

FBM237

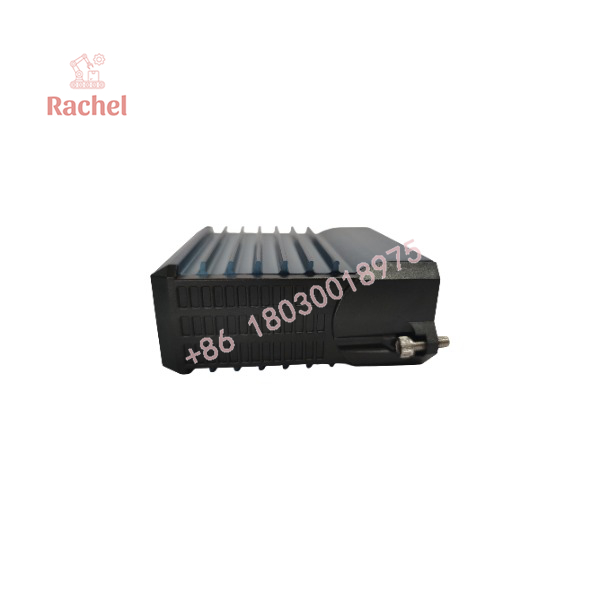

FBM237
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Control System Platform | Foxboro I/A Series DCS / EcoStruxure Foxboro DCS | Connects via modular 200 Series baseplate infrastructure. |
| Communication Network | Redundant 2 Mbps fieldbus (Path A and Path B) | Links to Field Control Processors (FCP/FCM) with automated path failover. |
| Termination Assemblies (TAs) | DIN-rail mounted TAs (Compression screw or ring-lug styles) | Interfaced via standard multi-core subsystem transition cables; supports shared TAs for redundant module setups. |
| Environmental Enclosure | Certified for harsh environments up to ISA Standard S71.04 Class G3 | Built with a ruggedized extruded aluminum enclosure rated for corrosive industrial spaces. |
Dimensions, Mounting & Connection Notes
- Form Factor: Compact modular plug-in card with an extruded aluminum housing.
- Dimensions: Height: 102 mm (114 mm with mounting lugs) × Width: 45 mm × Depth: 104 mm.
- Unit Mass: Approximately 185 g to 284 g (0.4 to 0.63 lb).
- Mounting Options: Baseplates mount onto horizontal or vertical 35 mm DIN rails, or within 19-inch racks using conversion kits.
- Hot-Swapping Support: Fully supports live insertion and extraction under power on active baseplates without disturbing field wiring or network communications.
FAQ
What is the Foxboro FBM237?
The Foxboro FBM237 is an 8-channel analog output fieldbus module that generates 0 to 20 mA current signals to command field actuators and valves within Foxboro distributed control systems.
Does the FBM237 support module redundancy?
Yes. The module is redundant-ready; two FBM237 units can be deployed as a matched pair on a common termination assembly to provide single-fault tolerance and high system availability.
Is the FBM237 a HART communication module?
No. The FBM237 is a dedicated 0–20 mA analog output module. However, its output impedance design is passive-compatible with HART loops, meaning it will not interfere if connected to loops utilizing HART field instruments and communicators.
What is the maximum output load resistance supported?
Each channel can drive an external loop load resistance of up to 750 Ω.
Can the module be replaced while the industrial process is running?
Yes, the hot-swappable baseplate design permits an operator to extract and replace a failed FBM237 module under power without disconnecting field wiring or shutting down loops.
