Foxboro FCM2F2 P0914YZ Fieldbus Communications Module

Description

Product Introduction

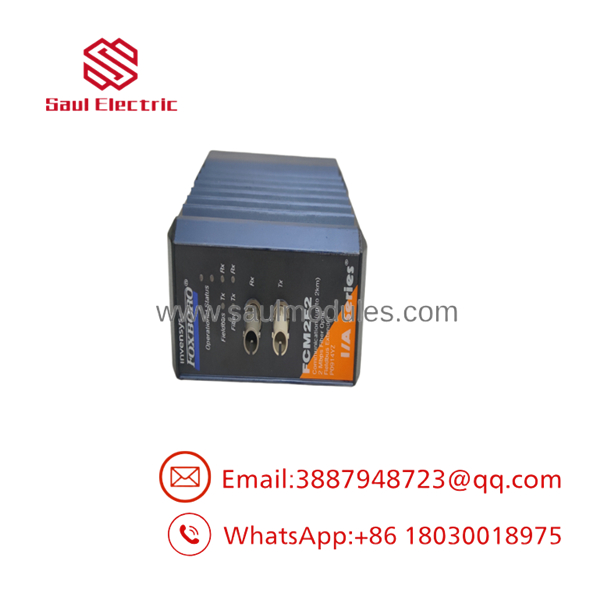

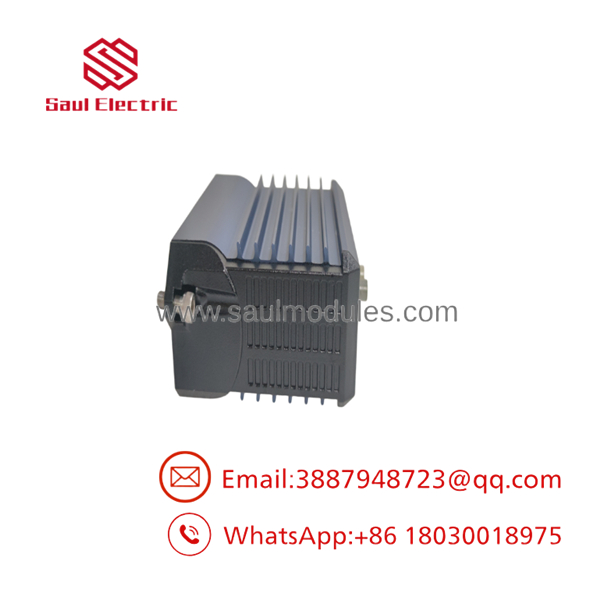

The Foxboro FCM2F2 (Part Number P0914YZ) is a specialized 200 Series Fieldbus Communications Module / Coupler engineered for Foxboro I/A Series and EcoStruxure DCS platforms. Designed to solve distance limitations and high electrical noise challenges, the FCM2F2 converts 2 Mbps HDLC copper fieldbus communications from Control Processor (CP) baseplates into fiber optic signals for long-distance transmission to remote Fieldbus Module (FBM) racks.

By deploying fiber optics, the FCM2F2 allows remote DIN-rail baseplate enclosures to be located up to 2 km away from the main DCS control room cabinet without signal degradation or packet delay. Furthermore, optical fiber transmission provides total electrical immunity against heavy lightning ground surges, high-voltage switching noise, and severe industrial ground potential differences between process units.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 02:15 AM at a tank farm facility located 1.2 kilometers from the central refinery control house. The operator console triggers a “REMOTE FIELDBUS BUS A DISCONNECT” alarm across all remote I/O racks at Tank Farm 4. A nearby electrical substation switching event created a ground surge that killed the primary copper-to-fiber driver on an aging FCM card. The shift instrument tech retrieved a bench-tested FCM2F2 (P0914YZ) module from emergency stores. Swapping the card into the live 200 Series baseplate and snapping the ST fiber jumpers into place restored primary fiber fieldbus link synchronization in under 6 minutes, bringing real-time tank gauging back online.

Target Application Scenarios

• Long-Distance Remote I/O: Links remote field enclosures (tank farms, offsite water treatment, loading racks) located up to 2 km away from central Control Processors.
• High EMI / Substation Environments: Routes DCS fieldbus links through high-voltage switchgear rooms, motor control centers (MCCs), or heavy electrical noise areas where copper cable would suffer severe packet loss.
• Plant-to-Plant Galvanic Isolation: Prevents ground loops and ground potential shifts between separate buildings or distinct process units.

FCM2F2 P0914YZ

FCM2F2 P0914YZ

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FCM2F2 / P0914YZ module undergoes a strict 5-stage workbench validation process prior to dispatch:

1. Inbound Visual & Mechanical Inspection: Magnified inspection of PCB traces, edge-connector gold contacts, side locking levers, and optical ST port barrels to check for scratches, contamination, or physical stress.
2. Cold Power Rail Diagnostics: Resistance checks across internal power conversion circuitry and bus interface lines to rule out internal short circuits.
3. Live Baseplate Bus Handshake: Module is mounted on a live Foxboro 200 Series baseplate connected to a Control Processor to confirm bus address recognition, module handshake, and proper status LED initialization.
4. Fiber Optic Power & Multi-Kilometer Loopback Test: Optical power meters verify clean 850 nm Tx optical launcher output levels. The module is linked across a calibrated 2 km optical fiber spool to a remote FBM rack to verify error-free 2 Mbps HDLC fieldbus transmission with zero frame drops.
5. Anti-Static ESD Packaging: Cleared modules receive optical port dust capping, contact cleaning, thorough drying, and are sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Confuse (Fiber) with FCM2E4 / FCM2E10 (Ethernet Converters)!

  The is strictly a Fiber Optic 2 Mbps HDLC Fieldbus Coupler. Slotting an into a position configured for a 100 Mbps Ethernet Fieldbus Extender card will cause hardware mismatch errors.

• ❗ Keep Fiber Optic Connector End-Faces Clean.

  Dust or oil on the ST fiber connectors is the #1 cause of optical signal attenuation and intermittent fieldbus communication errors. Always clean fiber jumpers with lint-free optical wipes and keep dust caps on unused optical ports.

• ⚠️ Observe Fiber Bend Radius Limits.

  When dressing fiber optic patch cables inside the cabinet or routing to the matching Termination Assembly, strictly adhere to minimum bend radius guidelines to prevent optical micro-bends that degrade signal strength.

• ❗ Bypass Redundant Fieldbus Before Hot-Swapping.

  While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an active module will force all fieldbus traffic to failover to Channel B (or lose communication entirely if redundancy is not active). Always verify Channel B health before pulling Channel A’s card.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the Foxboro module while the baseplate is powered?

A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, extracting the module immediately drops fiber communication on that specific fieldbus channel. Ensure the secondary redundant fieldbus path is healthy before removing the card.

Q: What is the exact difference between part numbers , P0914YZ, and RH914YZ?

A: “” is the functional model designation used in DCS engineering software, “P0914YZ” is the standard Foxboro hardware part number, and “RH914YZ” is Schneider Electric’s RoHS-compliant (lead-free) hardware equivalent. and RH914YZ are 100% functionally and mechanically interchangeable.

Q: What type of fiber cable does the require?

A: The uses standard 62.5/125 µm or 50/125 µm Multi-Mode Glass Fiber terminated with ST connectors at an 850 nm optical wavelength.

Q: What warranty covers these pre-tested modules?

A: Every ( / RH914YZ) module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.

Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?

A: Factory lead times for specialized Foxboro 200 Series fieldbus communication couplers can stretch into weeks or months, and factory list pricing for mature platform hardware is high. Pre-tested surplus stock allows you to restore critical fiber optic fieldbus links immediately at a fraction of the cost.
