The Foxboro P0904HA is a heavy-duty system power supply module engineered for the Foxboro I/A Series distributed control system (DCS). Designed to support system racks and node enclosures, the P0904HA delivers clean, tightly regulated DC power to critical processor electronics, control communication buses, and system backplanes.
Built to withstand harsh industrial environments, the P0904HA includes built-in protection against line surges, thermal overload, and output over-voltage. When deployed in dual-redundant power configurations, it allows continuous 24/7 operation—enabling hot-swap replacement without interrupting running Control Processors (CPs) or active process loops.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | P0904HA (RoHS Equivalent: RH904HA) |
| Series | Foxboro I/A Series Power Subsystem |
| Input Voltage Range | 100–240 V AC / High-Voltage DC (universal input depending on rack) |
| Core Function | System backplane & processor rail power distribution |
| Redundancy | Dual Redundant / N+1 Configuration Capable |
| Status Indicators | Onboard Power OK / Fault Status LEDs |
| Protection Features | Short circuit, over-voltage, thermal shutdown protection |
| Mounting | Dedicated Foxboro Power Enclosure / System Rack Slot |
| Operating Temp Range | 0°C to +60°C (+32°F to +140°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:45 AM during a summer heatwave at a chemical processing plant. Ambient temperatures in Remote Instrument Enclosure (RIE) 3 spiked after an air conditioning unit failed. An old primary power supply in the central I/A Series rack suffered thermal degradation, triggering a “POWER SUPPLY FAULT” alarm at the main operator station. Because the rack was configured with dual P0904HA modules, the secondary power unit instantly absorbed 100% of the rack load with zero voltage drop on the internal bus rails. The on-call technician replaced the degraded unit with a bench-tested P0904HA spare, restoring full dual-redundant power backup before cabinet temperatures affected control hardware.
Target Application Scenarios
- Central DCS Enclosure Powering: Provides primary operating power for Foxboro I/A Series processor nests and system bus backplanes.
- High-Availability Redundant Cabinets: Deployed in pairs to guarantee continuous uptime for critical safety interlocks, boiler controls, and continuous reaction units.
- Legacy System Upgrades & Spares: Essential replacement module for maintaining existing I/A Series control infrastructure without expensive rack re-engineering.

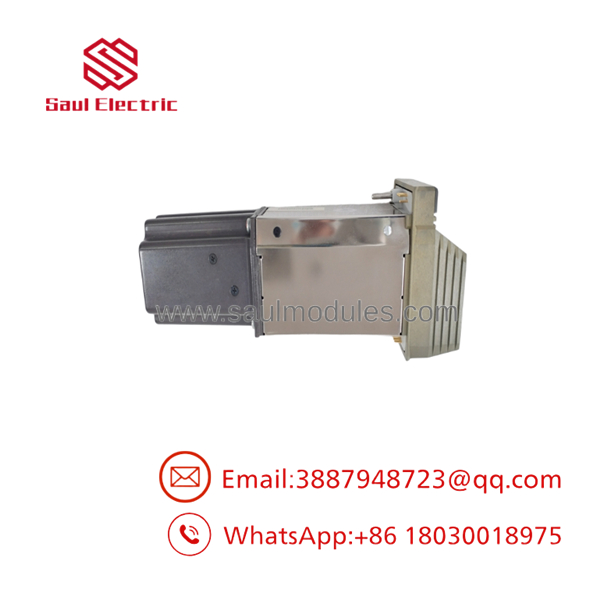

P0904HA

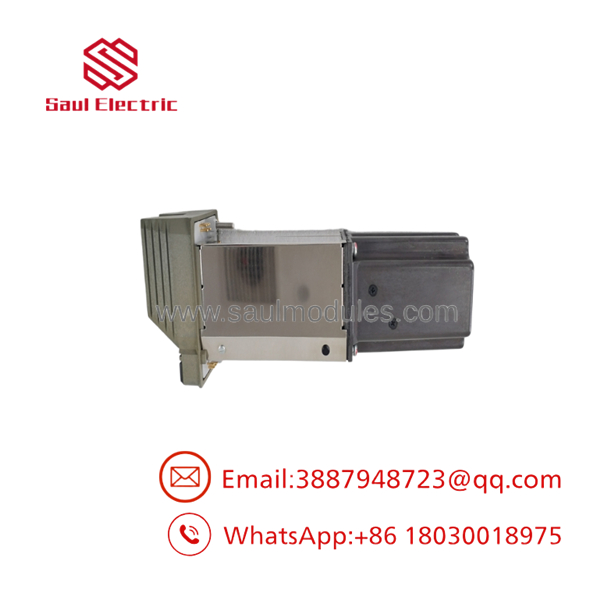

P0904HA
Transparency SOP: Quality Assurance & Testing
Every power supply module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: High-magnification check of edge connector gold contacts, housing latches, vents, and internal filter capacitors for signs of swelling or thermal stress.
- Cold Component & Isolation Testing: Resistance and dielectric breakdown checks across input power stages, transformer windings, and output buses to rule out internal short circuits.
- Full Rated Burn-In Load Testing: Mounted on a live Foxboro test rack and loaded using active electronic load banks to verify output regulation, thermal stability, and low ripple performance under maximum continuous current.
- Redundant Failover Simulation: Paired with a secondary module in a live rack setup. Primary input power is cut abruptly to verify instantaneous load transition, zero bus voltage fluctuation, and proper fault alarm contact closure.
- Anti-Static & Protective Packaging: Cleared modules receive terminal contact cleaning, thorough drying, and are sealed in heavy anti-static ESD bags before custom foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Verify Specific Rack / Mounting Footprint:
Ensure the matches your specific I/A Series power enclosure or rack slot architecture before installation. Form factors vary across legacy Foxboro power nests.
- ❗ Maintain Adequate Cabinet Ventilation:
Power supplies generate heat under heavy load. Ensure cabinet cooling fans are operational and intake vents near the are clear of dust and debris to prevent thermal shutdown.
- ⚠️ Confirm RoHS Part Number Equivalents ( vs. RH904HA):
represents the standard build, whileRH904HAdesignates Schneider Electric’s RoHS-compliant equivalent. They are 100% form, fit, and functionally interchangeable on the rack. - ❗ Bypass Power Fault Alarms Prior to Removal:
While redundant power racks support live hot-swapping, pulling a failed module will trip the hardware fault contact. Inform control room operators before extracting the unit from an active cabinet.
Frequently Asked Questions (FAQ)
Q: What is the main function of the Foxboro ?
A: The is a system power supply module that converts incoming utility power into regulated internal voltage rails to power Foxboro I/A Series DCS racks, processors, and system communication buses.
Q: Can I hot-swap a power supply module while the system is running?
A: Yes, if installed in a dual-redundant power rack alongside a functioning secondary power supply. You can pull and replace the failed module without interrupting host controller operation or field process loops.
Q: What is the difference between part numbers and RH904HA?
A: “” is the standard Foxboro hardware part number, and “RH904HA” is Schneider Electric’s RoHS-compliant (lead-free) equivalent. Both share identical dimensions, electrical specs, and pinouts.
Q: What warranty covers these pre-tested modules?
A: Every / RH904HA power supply module sold includes a full 12-Month Functional Warranty. If the unit experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
