Foxboro P0916CC Termination Assembly I/A Series

Description

Product Introduction & Engineering Value

The Foxboro P0916CC is not the FBM237 electronics module itself. It is the associated termination assembly (TA) used with the FBM237 in Foxboro I/A Series 200 I/O installations. That distinction matters when ordering a replacement because the FBM and its termination hardware have different part numbers and functions.

For maintenance teams working with an installed I/A Series system, P0916CC provides the field-side termination point for the FBM237’s analog output channels. Emerson documentation also confirms that this FBM237/P0916CC combination can be connected into DeltaV 4–20 mA output architectures through Flex.Connect wiring.

Technical Specifications

The Schneider Electric I/A Series documentation shows the P0916CC/P0916QC termination arrangement connected to the and identifies the associated field connection as a 0–20 mA analog output interface.

Important specification note: supplier listings contain conflicting claims for P0916CC dimensions, temperature ratings, terminal count, and enclosure ratings. Those figures should not be treated as authoritative without the applicable Foxboro drawing or hardware revision. The manufacturer documentation confirms the / relationship and signal function, which are the more important identification criteria for procurement.

Field Application & the “Trench” Experience

A realistic replacement scenario is a process plant with an older I/A Series 200 cabinet controlling several modulating valves. During a cabinet inspection, one output circuit shows intermittent field termination problems. The maintenance team initially suspects the FBM itself. A loop check shows otherwise: the controller-side output is healthy, but the field wiring interface has a mechanical termination problem.

The replacement requirement is therefore , not simply another . Once the TA is replaced and the existing termination cable and channel assignments are verified, the maintenance team can perform point-to-point loop checks without changing the control strategy.

Emerson’s documentation confirms that the / combination represents eight analog outputs and provides a documented migration path into DeltaV 4–20 mA output CHARM architectures.

Niche applications

• Control-valve positioning in refinery process units — eight 4–20 mA output loops associated with an .
• Steam-system pressure control — analog outputs driving valve positioners or other final control elements.
• Process heater control — output loops commanding fuel or airflow control devices.
• I/A Series-to-DeltaV modernization — retaining existing field wiring while using an appropriate Flex.Connect solution.

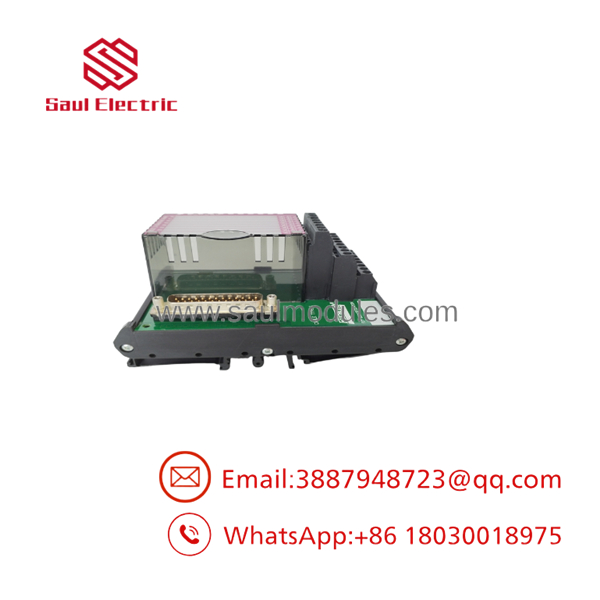

P0916CC

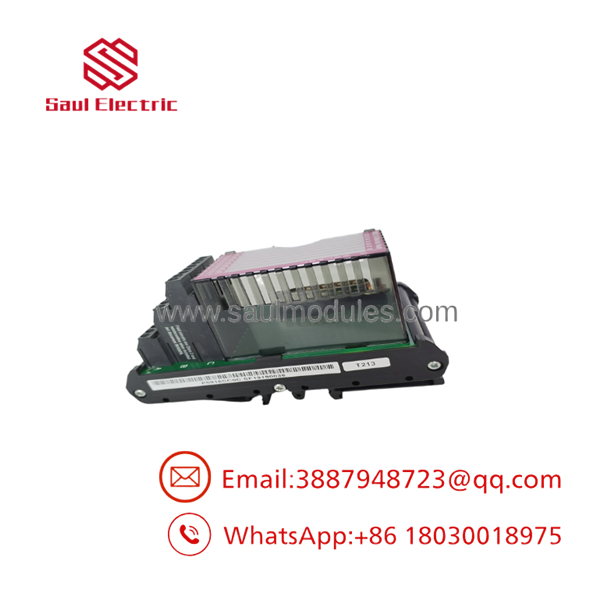

P0916CC

Transparency SOP: QA & Testing

For new-surplus or refurbished inventory, a sensible incoming-inspection procedure should include:

1. Part-number verification — confirm the physical marking is and that the hardware corresponds to the required termination assembly.
2. Physical inspection — check the enclosure, terminal area, mounting hardware, connectors, and cable interface for cracks, corrosion, contamination, or mechanical damage.
3. Electrical/interface inspection — verify termination continuity and inspect the interface against the applicable Foxboro wiring documentation.
4. System compatibility review — confirm that the installed FBM is and that the cabinet’s termination arrangement matches the configuration.
5. Documentation review — record condition, serial/traceability information where available, and the applicable hardware revision before shipment.

A termination assembly should not be represented as electrically equivalent to an I/O electronics module. is the field termination hardware associated with .

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering the FBM instead of the TA

and are closely associated, but they are not the same physical item. Emerson’s documentation explicitly lists them together as . Verify which component has actually failed before ordering.

⚠️ Trap #2 — Assuming every listing has accurate specifications

Online listings disagree substantially on dimensions, temperature range, channel count, and enclosure ratings. Do not use an aftermarket listing as the final engineering authority. Use the applicable Foxboro drawing for cabinet-level replacement decisions.

PRO TIP: Photograph the existing termination assembly and record the position, termination cable routing, and channel numbering before removing anything. This is particularly useful when several similar I/A Series termination assemblies are installed next to each other.

⚠️ Trap #3 — Ignoring the redundancy arrangement

The Foxboro documentation shows a different termination arrangement for redundant installations, including a redundant adapter. If the application uses redundant modules, verify the complete termination architecture rather than replacing one component in isolation.

Dynamic FAQ

Is an I/O module?

No. is the termination assembly associated with the Foxboro . The provides the I/O electronics, while the provides the corresponding field termination interface.

How many analog output channels does the / combination support?

The documented / combination supports eight analog outputs. Emerson’s Flex.Connect documentation maps these eight outputs to eight DeltaV 4–20 mA output CHARM channels.

Can be used for an I/A Series input module?

Do not assume compatibility based solely on the P0916 prefix. P0916AA, P0916AC, P0916AE, P0916BV, , and other termination assemblies correspond to different I/O functions. is specifically documented with analog output hardware.

Can the existing installation be migrated to DeltaV?

Yes, where the specific system and modernization design are compatible. Emerson’s DeltaV Flex.Connect documentation explicitly lists / → DeltaV 8-channel 4–20 mA output CHARM connectivity.

What should be verified before ordering a replacement?

At minimum, verify , the associated , I/A Series 200 hardware configuration, termination-cable arrangement, and whether the installation is redundant. For critical replacement work, compare the physical assembly against the applicable Foxboro drawing.

How should “New Surplus” stock be evaluated?

New-surplus status should be supported by physical inspection and traceability rather than the seller’s description alone. Confirm the part marking, packaging condition, connector/terminal condition, storage history where available, and warranty terms. A supplier’s 12-month warranty, for example, is a commercial warranty and should not be confused with a manufacturer’s current production warranty.
