Description
Product Introduction
The Foxboro P0916NJ-0B is a specialized high-voltage discrete output mounting base and termination assembly engineered for the Foxboro 200 Series I/O subsystem. Tailored to support 240 VAC discrete output operations (typically hosting or interfacing with FBM242 discrete output modules), this base provides secure landing and isolation paths for high-voltage AC field devices.
Featuring a heavy-duty DIN-rail mounting arrangement, the P0916NJ-0B facilitates high-density panel wiring by serving as the robust physical and electrical transition layer between field actuators (solenoids, motor contactors, alarms) and the DCS system backbone.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | P0916NJ-0B (Family: P0916NJ) |
| Compatible Module | Foxboro FBM242 Discrete Output Module |
| Channel Capacity | 16 Discrete Channels |
| Voltage Rating | 240 VAC (Externally Sourced Power) |
| Isolation | High-voltage channel-to-bus and channel-to-channel isolation |
| Mounting | Standard 35 mm DIN Rail / Vertical Cabinet Rail |
| Connection Type | Integrated multi-pin header & high-voltage screw terminal landings |
Application Scenarios & The “Trench” Experience
The Trench Story
When retrofitting a power plant’s soot-blower system, field technicians needed to route 240 VAC switching circuits directly through standard DCS cabinets without risking noise injection into low-voltage analog racks. By utilizing the P0916NJ-0B base assemblies on dedicated isolated DIN rails, the engineering crew isolated the high-voltage AC field lines safely at the cabinet boundary. The pre-tested bases snapped directly onto the rails and allowed simple multi-pin ribbon extensions back to the main FBM rack, reducing cabinet wiring time by over 40%.
Target Application Scenarios
- High-Voltage AC Actuation: Interfacing 240 VAC solenoids, motorized valves, and heavy contactors directly to FBM242 modules.
- Severe Environment Isolation: Providing high dielectric protection between noisy high-voltage field lines and sensitive control backplanes.
- Modular Cabinet Marshalling: Simplifying panel layout by mounting output bases vertically on cabinet walls rather than crowding horizontal rack slots.

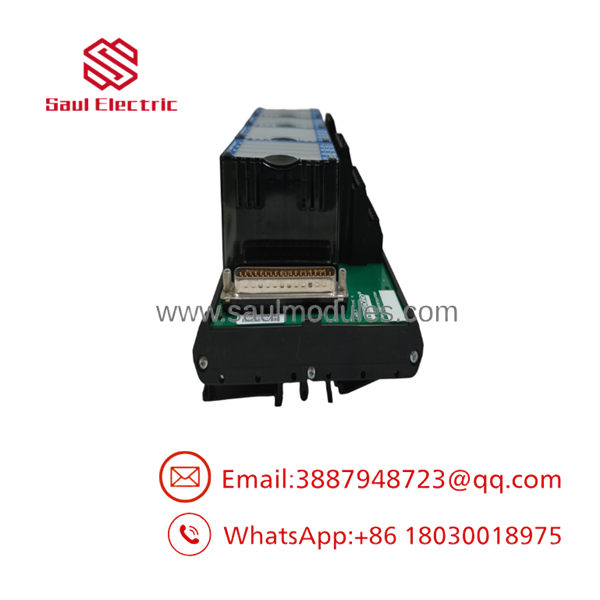

P0916NJ-0B

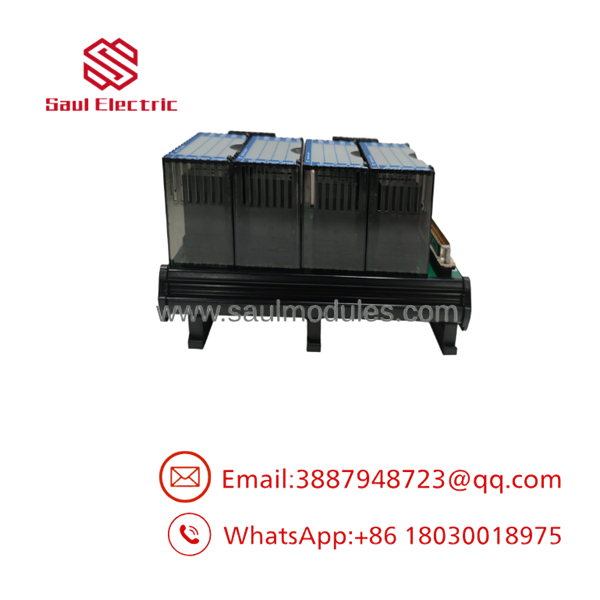

P0916NJ-0B
Transparency SOP: Quality Assurance & Testing
Each P0916NJ-0B unit undergoes a 5-step bench test before shipping:
- Mechanical & Terminal Integrity Check: Visual audit for housing stress cracks, broken DIN-rail retention springs, or bent connector pins.
- Point-to-Point Continuity Validation: Automated trace test confirming full electrical continuity from terminal screws to internal baseplate connectors.
- High-Voltage (Hi-Pot) Insulation Test: Verified insulation resistance at high AC potentials to ensure safe operation up to 240 VAC without flashover risks.
- Live FBM242 Channel Functional Simulation: Installed on an active FBM242 test bench to confirm clean, chatter-free signal pass-through under operational loads.
- ESD Cleaning & Protective Packaging: Contact-cleaned, dried, enclosed in anti-static ESD shielding, and packed in customized impact-absorbing foam.
The Veteran’s Tech Trap Guide
- ⚠️ Verify AC Voltage Levels (240 VAC Rating):Ensure field power matches the 240 VAC output specification of the P0916NJ-0B assembly. Using 24 VDC or 120 VAC sourcing modules without verifying base compatibility can lead to unexpected switching thresholds or channel faults.
- ❗ Part Number Formatting & Misspellings:“P0916N] OB” is a common OCR/typo variation for or P0916NJ-08. Ensure drawings and purchase orders cite to prevent part fulfillment delays.
- ⚠️ Check FBM Module Seating:When mounting the FBM242 onto the base, press firmly on both top and bottom latches to ensure full contact with the internal backplane header.
- ❗ External Fusing Protection:Because the unit handles external 240 VAC power feeds, install appropriate line fuses on field supply lines to protect the assembly from short circuits in field solenoids.
Frequently Asked Questions (FAQ)
Q: What does the base module do?
A: The provides a DIN-rail mounting base and field connection interface specifically designed for 240 VAC discrete output operations with Foxboro modules.
Q: Is interchangeable with P0916NJ-08?
A: Yes, and P0916NJ-08 belong to the same product base family, with suffix codes indicating minor revision levels or manufacturing series. They share the same form factor and 240 VAC field functionality.
Q: Does the include the FBM module itself?
A: Normally, the base () and the active FBM module (e.g., ) are supplied separately, though surplus units are sometimes sold as mated sets.
Q: What warranty comes with these units?
A: All tested base units include a 12-Month Replacement Warranty. If a component fails under standard operating conditions within one year, it is replaced immediately.
