Foxboro P0917XQ Termination Assembly I/A Series 200

Description

Product Introduction & Engineering Value

P0917XQ is a Foxboro I/A Series 200 termination assembly used with the FBM228 family of field I/O hardware. It sits between the plant wiring and the Fieldbus Module, so its electrical configuration matters just as much as its mechanical fit.

For a legacy cabinet replacement, the safest approach is straightforward: identify the installed TA, identify the associated FBM, and verify the terminal assignment before moving conductors. A connector that fits is not sufficient evidence of compatibility.

Technical Specifications

Engineering note

The P0917XQ suffix should be treated as a specific hardware configuration, not merely an ordering variation. Publicly available Foxboro documentation covers multiple termination assemblies across the I/A Series 200 architecture. Therefore, field voltage, isolation, channel arrangement, and terminal assignment should be verified from the applicable Foxboro documentation for the installed FBM228 configuration rather than inferred from the model number.

Field Application & the “Trench” Experience

A familiar outage scenario: an older I/A Series cabinet has intermittent field signals. The FBM diagnostics look normal, but several related points are affected. Maintenance initially suspects the field instruments. After checking the loops, the common termination hardware becomes the more likely failure point.

That distinction is important with P0917XQ. The TA is part of the physical signal path. Replacing the FBM without inspecting the termination assembly can leave the original problem untouched.

Practical application scenarios

• Motor starter feedback: running, stopped, fault, and permissive contacts.
• MOV status monitoring: valve-open and valve-closed limit switches.
• Package-equipment interlocks: discrete status signals from pumps, fans, compressors, and auxiliary skids.

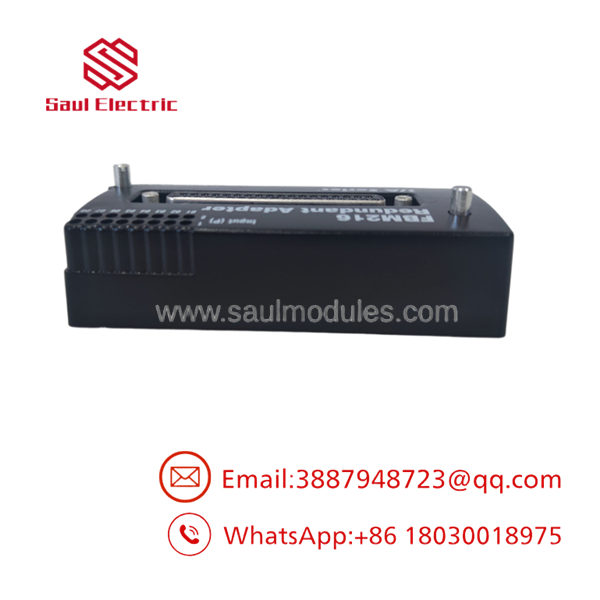

P0917XQ

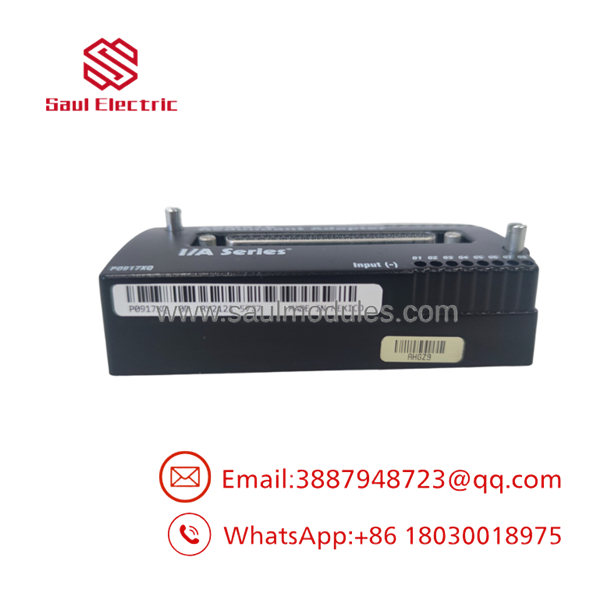

P0917XQ

Transparency SOP: QA & Testing

For New Surplus or Refurbished P0917XQ stock, a useful QA procedure should include:

• Part identification: Confirm the physical P0917XQ marking and any visible revision information.
• Mechanical inspection: Check connectors, terminals, mounting hardware, and enclosure/board condition.
• Electrical inspection: Verify accessible continuity and termination paths against the correct technical documentation.
• Contact inspection: Look for oxidation, bent contacts, contamination, or signs of overheating.
• System simulation: If an FBM228 test environment is available, perform representative signal testing.
• Final record: Document the part number, condition, test status, and warranty before shipment.

A visual inspection alone is not a functional test.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming is interchangeable with every P0917-series TA

Don’t make that assumption. Foxboro termination assemblies can have different electrical configurations despite similar mechanical construction.

PRO TIP: Match the complete TA part number, not simply the P0917 prefix.

⚠️ Trap #2 — Confusing the TA with the FBM

is termination hardware. It should not be ordered as a substitute for an FBM228 module.

If the system fault remains after an FBM replacement, inspect the field termination path before replacing additional electronics.

⚠️ Trap #3 — Moving wires without a point-to-point record

Legacy I/A Series cabinets may have years of field modifications. The as-built drawing and actual wiring may not always match.

Photograph the original installation. Record each conductor. Verify the destination against the approved I/O documentation before energizing the replacement.

Dynamic FAQ

What is Foxboro ?

is a Foxboro I/A Series 200 termination assembly associated with the FBM228 family of field I/O hardware.

Is the same as ?

No. is the termination assembly; refers to the associated Fieldbus Module hardware. They have different functions.

Can I replace with another Foxboro termination assembly?

Only after confirming electrical and mechanical compatibility. The correct substitute must match the associated FBM configuration, field signals, terminal arrangement, and isolation requirements.

What information should I provide when requesting a replacement?

Provide the complete part number, photos of the label, associated FBM part number, cabinet/system information, and available wiring or termination drawings. This gives a supplier enough information to check the correct configuration.

How should New Surplus be verified?

Request actual-part photographs, identification-label confirmation, condition information, available electrical test results, and a written warranty. New Surplus should not automatically be represented as current factory production.

Is warranty available?

Warranty depends on the supplier and condition of the individual unit. For critical control-system spares, obtain the warranty period and failure/return terms in writing before issuing the purchase order.
