Foxboro P0961CA FBM Termination Assembly I/A Series 200

Description

Product Introduction & Engineering Value

P0961CA is a Foxboro I/A Series 200 termination assembly used in the field-I/O architecture. It is the termination hardware, not the electronic Fieldbus Module, so the two should not be confused when diagnosing an I/O fault or preparing a replacement order.

For an installed legacy cabinet, the practical approach is simple: identify the exact TA, identify its associated FBM, and verify the field wiring before transferring conductors. Similar Foxboro hardware is not automatically interchangeable.

Technical Specifications

Engineering note

I would not assign P0961CA a specific channel count, voltage range, isolation type, or associated FBM based solely on the part-number pattern. Those parameters need to be confirmed against the applicable Foxboro documentation or the actual installed assembly.

That is particularly important with legacy Foxboro termination hardware, where different TA variants can serve different I/O configurations.

Field Application & the “Trench” Experience

Picture a maintenance team troubleshooting an intermittent I/O problem during a short shutdown. The FBM passes its basic diagnostics, but several field points remain unstable. Inspection eventually points toward the termination hardware.

The replacement appears straightforward until the spare-parts cabinet produces a visually similar Foxboro TA.

Don’t make the substitution by appearance.

Before removing P0961CA, photograph the identification label, document the associated FBM, and record the terminal wiring. Then compare those details against the replacement and the approved I/O documentation.

Niche application scenarios

• Motor starter feedback: running, stopped, fault, and auxiliary status.
• Valve position indication: discrete open/closed limit-switch signals.
• Equipment permissive monitoring: discrete contacts used for process sequencing and interlocks.

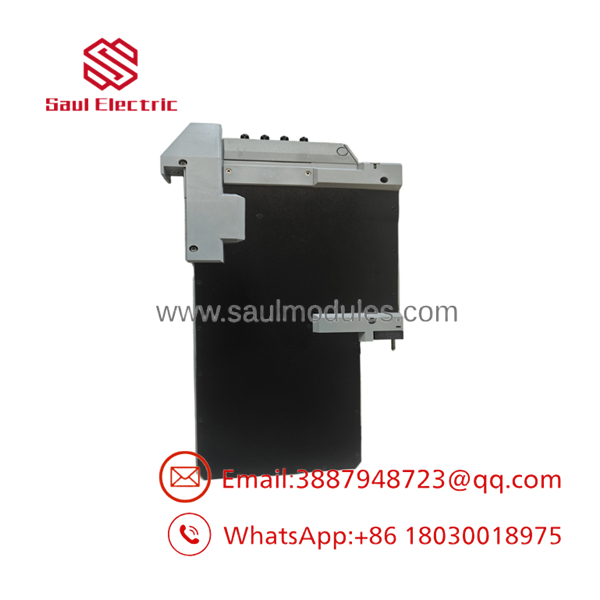

P0961CA

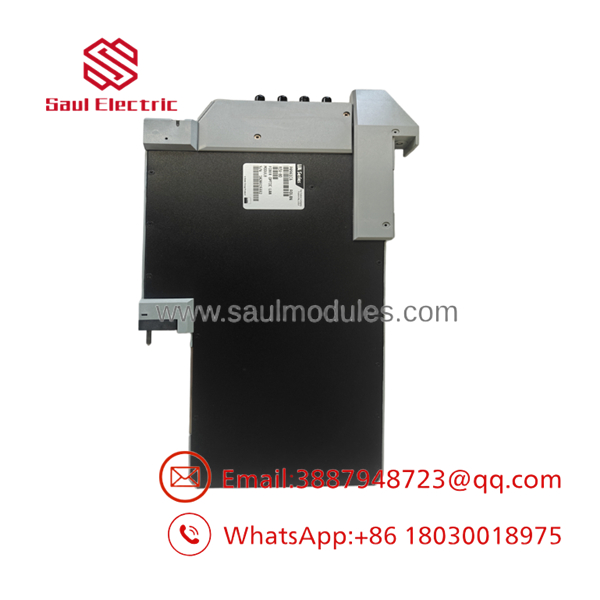

P0961CA

Transparency SOP: QA & Testing

For New Surplus or Refurbished P0961CA stock, a controlled QA process should include:

1. Identification — Verify the physical unit is marked P0961CA.
2. Visual inspection — Check terminals, connectors, board surfaces, mounting hardware, and evidence of corrosion or overheating.
3. Connector inspection — Look for bent, oxidized, contaminated, or damaged contacts.
4. Electrical checks — Verify accessible continuity and termination paths against the applicable documentation.
5. Functional verification — If compatible Foxboro test equipment is available, simulate representative field circuits through the associated FBM.
6. QA documentation — Record the part number, condition, test scope, and warranty information.

For procurement, ask specifically what was tested. “Tested” is not a sufficient description by itself.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming P0961-series hardware is interchangeable

The prefix alone does not establish compatibility. Match the complete part number and the associated I/O configuration.

PRO TIP: Require an actual-unit photograph showing the complete label before approving surplus inventory.

⚠️ Trap #2 — Replacing the TA without isolating the fault

The field device, wiring, TA, FBM, and communication path are separate parts of the signal chain. Establish the failure point before replacing expensive control hardware.

⚠️ Trap #3 — Trusting the old cabinet drawing blindly

Legacy cabinets can contain undocumented modifications. Photograph and record the actual wiring before removing the existing TA, then reconcile it with the latest approved drawing.

Dynamic FAQ

What is Foxboro ?

is a Foxboro I/A Series 200 termination assembly used within the system’s field-I/O termination architecture.

Is a Fieldbus Module?

No. It is termination hardware. The associated FBM is a separate electronic component.

Can I replace with another Foxboro termination assembly?

Only after verifying compatibility. Confirm the complete TA part number, associated FBM, field-signal characteristics, terminal arrangement, and isolation requirements.

What information should I provide when sourcing ?

Provide the complete part number, photographs of the actual installed assembly, associated FBM model, cabinet information, and available I/O or wiring documentation.

How can I verify New Surplus ?

Request actual-part photographs, identification markings, condition details, testing information, and written warranty terms. If the unit is advertised as unused, confirm whether it has ever been installed or energized.

Is supplied with a warranty?

Warranty terms depend on the supplier and stock condition. For a critical automation spare, obtain the warranty duration and return conditions in writing before purchase.
