Product Introduction
The Foxboro FBM207c (Part Number P0917MF) is a high-density, 16-channel discrete input Fieldbus Module engineered specifically for 48V DC contact sensing within Foxboro I/A Series and EcoStruxure DCS networks. While standard digital cards like the FBM207b supply 24V DC wetting power, the FBM207c generates a regulated 48V DC loop potential directly from the card. This makes it the ideal interface for long field cable runs where line resistance causes unacceptable voltage drops on lower-voltage sensing circuits.
Built to process rapid state changes from remote field switches, relay contacts, and interlocks, the FBM207c executes onboard sequence-of-events (SOE) timestamping, ladder logic, and configurable digital filtering. Each channel features heavy-duty galvanic isolation, protecting the host 200 Series backplane from high-voltage field spikes, earth faults, and stray common-mode noise.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM207c / P0917MF / RH917GY |
| Series | Foxboro 200 Series Subsystem |
| Input Channels | 16 galvanically isolated discrete channels |
| Contact Sense Voltage | 48V DC ±15% (internal wetting power) |
| Short-Circuit Current | 3.2 mA typical per channel |
| Logic One (ON) Resistance | 1.0 kΩ maximum |
| Logic Zero (OFF) Resistance | 100 kΩ minimum |
| Isolation Voltage | 600V AC channel-to-channel and channel-to-ground |
| Power Dissipation | 5.0W maximum from baseplate |
| Operating Temp Range | -20°C to +60°C (-4°F to +140°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 02:45 AM during torrential rain at a cross-country pipeline booster station. A mainline isolation valve trips, but the control room console displays an ambiguous “Fault – Contact Unstable” alarm instead of a clear valve status. The field limit switches are located 800 feet away in a damp valve pit. The original 24V DC contact loop suffered severe voltage drop across wet junction boxes, preventing the input card from registering a solid ON state. Upgrading the local rack channel to a 48V DC FBM207c module punched right through the line resistance, restoring crisp contact verification and allowing the operator to restart pipeline flow safely.
Target Application Scenarios
- Long-Distance Field Switches: Drives 48V DC contact wetting power across extended cable runs to remote breaker panels, limit switches, and valve positioners.
- Power Substation Interlocks: Monitors high-voltage circuit breaker auxiliary contacts, disconnector switches, and transformer trip relays.
- Mining & Bulk Material Conveyors: Reads long pull-wire emergency stop switches and conveyor belt alignment sensors exposed to harsh environmental degradation.
Field Case Study
A utility plant in Indiana experienced chronic contact chatter on outdoor coal-handling safety gates linked to a Foxboro 200 Series DIN-rail baseplate. Voltage drop on the 24V sensing line was causing false open-circuit trips. We supplied a bench-tested FBM207c (P0917MF) module to site via morning air freight. The lead electrician bypassed the interlock logic, slotted the FBM207c into the baseplate, and connected the 48V-compatible termination assembly. Contact stability reached 100%, permanently eliminating false trips caused by long cable runs.

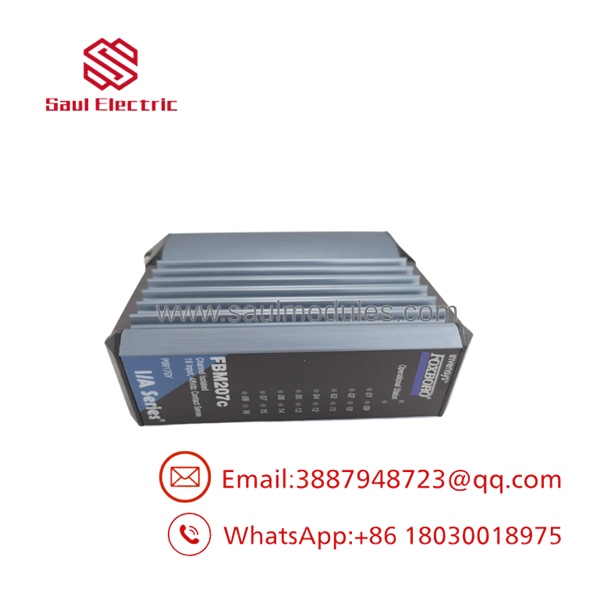

FBM207c

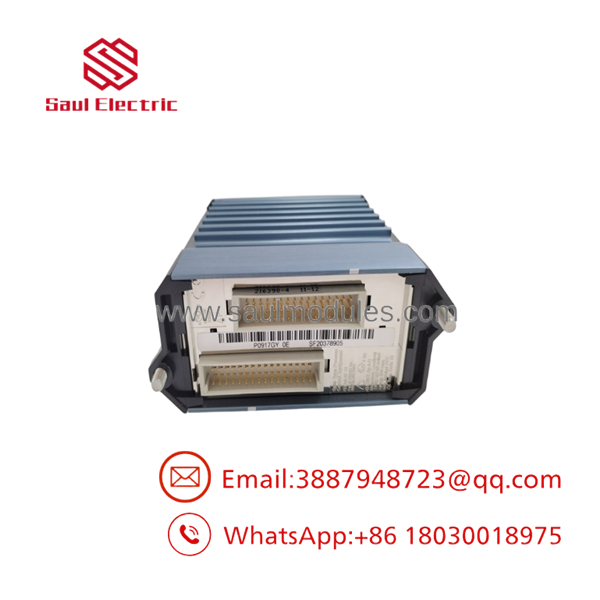

FBM207c
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FBM207c module undergoes a strict 5-stage bench validation process prior to dispatch:
- Inbound Visual & Pin Verification: Inspection under 10x magnification to verify PCB trace integrity, zero thermal discoloration on 48V power conversion stages, and clean gold edge-connector plating.
- Cold Power Rail Checks: Ohmmeter continuity testing across internal bus lines and optocoupler stages to rule out shorted components or degraded transient absorption diodes.
- Live Baseplate Bus Handshake: The FBM207c is mounted into a live Foxboro 200 Series baseplate powered by a Control Processor to verify bus address identification and status LED behavior.
- 16-Channel 48V Wetting Test: Precision resistance loads simulate open (100kΩ+) and closed (1kΩ) field contacts across all 16 channels simultaneously. We measure the onboard 48V DC wetting supply voltage under load to confirm zero thermal sag.
- Anti-Static ESD Packaging: Cleared modules undergo contact solvent cleaning and are sealed in heavy-duty anti-static ESD shielding bags prior to foam cell packing.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Mix Up FBM207 (60V External), FBM207b (24V Internal), and FBM207c (48V Internal)! They look virtually identical on the DIN rail! However, the FBM207c outputs 48V DC contact sense voltage directly from the card pins. If you connect external 120V AC or an unisolated power source to an FBM207c channel, you will blow out the internal 48V regulator and fry the front-end optocouplers.
- ❗ Verify Termination Assembly (TA) Compatibility. The FBM207c requires a matching 48V DC-compatible Termination Assembly (such as the P0917MF TA). Using a TA designed for 120V AC voltage monitoring with an FBM207c card will cause incorrect status readings or hardware faults.
- ⚠️ Watch for Redundant Pair Power-Diode ORing.When running FBM207c modules as a redundant pair, contact sense power from each module is diode OR’d together inside the redundant baseplate adapter. If one module’s internal 48V supply fails, the second module maintains field contact power seamlessly. Take a moment to verify dual power LED status on both cards.
- ❗ Bypass Active Safety Logic Before Hot-Swapping. While Foxboro 200 Series baseplates support live insertion and removal, pulling an FBM207c card instantly drops 48V wetting power to all 16 connected contacts. This forces all associated software blocks to “BAD” status, which will trip downstream logic if not manually bypassed first.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro FBM207c module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates fully support Hot Swap (Live Insertion and Removal). However, pulling the module removes 48V wetting power from all 16 field contacts immediately. Place all affected software control blocks in Manual or Bypass mode prior to extraction.
Q: What is the main difference between the FBM207b and the FBM207c?
A: The FBM207b provides 24V DC contact sense wetting power. The FBM207c provides a higher 48V DC contact sense wetting power. The FBM207c is chosen specifically for longer field cable runs or environments where higher wetting voltage is needed to cut through contact oxidation and line resistance.
Q: Does the FBM207c require an external power supply for field contacts?
A: No. The FBM207c generates its own internal 48V DC contact sense voltage from the baseplate power rails and routes it to dry field contacts via the Termination Assembly. No external contact wetting power supply is required.
Q: What warranty covers these pre-tested FBM207c modules?
A: Every FBM207c (P0917MF) module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy surplus or pre-tested stock instead of ordering directly from Schneider Electric?
A: Direct OEM lead times for mature or specialized Foxboro 200 Series variants can stretch into months, and factory list prices for replacement hardware are high. Pre-tested surplus stock allows you to restore critical plant interlocks immediately at a fraction of the cost.
