Description
Core Product Summary

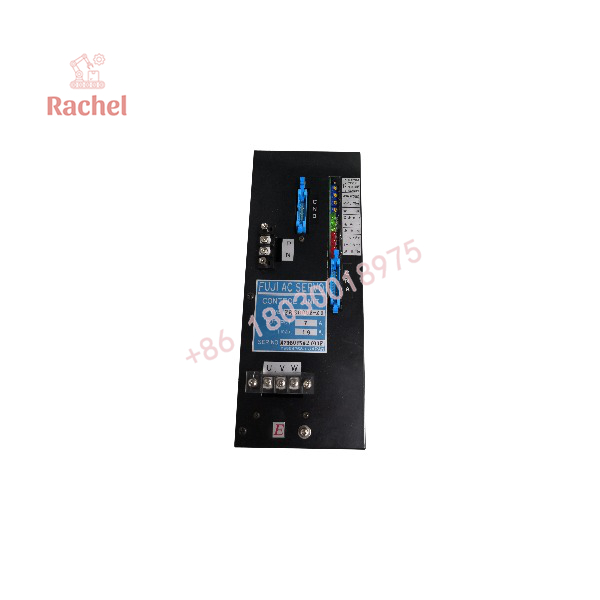

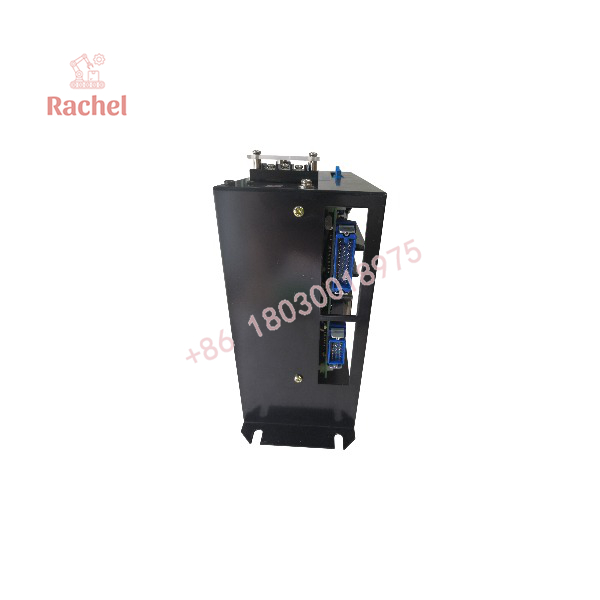

The Fuji Electric FRS800B is an industrial AC servo control unit used in motion-control equipment. It is listed in industrial parts catalogs under Fuji Electric’s servo-control products, with one catalog describing the FRS800B as a 19 A AC servo control unit. The exact rating and operating conditions should be verified against the unit’s nameplate and original documentation before engineering use.
For replacement projects, identification is particularly important because the related FRS800B-Z designation also appears in parts catalogs and may represent a different configuration. Do not treat the two model numbers as interchangeable without confirmation. Before installation, verify the compatible servo motor, power supply, feedback connections, control interface, and mounting arrangement.
Key Technical Specifications
| Parameter | Available information |
|---|---|
| Manufacturer | Fuji Electric |
| Model | FRS800B |
| Product type | AC servo control unit |
| Product category | Industrial servo / motion control |
| Current rating | 19 A reported in a parts catalog; verify against the nameplate |
| Related model | FRS800B-Z; verify variant compatibility |
| Rated input voltage | Not confirmed |
| Output power | Not confirmed |
| Compatible motor models | Not confirmed |
| Feedback type | Not confirmed |
| Communication interface | Not confirmed |
| Dimensions | Not confirmed |
| Mounting details | Confirm from the applicable manual |
| Environmental ratings | Not confirmed |
Unverified values are intentionally omitted rather than inferred from other Fuji Electric servo products.
Engineering Selection Highlights
- Servo-system component: Intended for AC servo control applications.
- Model-specific replacement: Confirm the complete model designation before procurement.
- Current-rating verification: Check the stated 19 A catalog reference against the actual unit label and manual.
- Motor and feedback matching: Ensure that the replacement is compatible with the existing motor and feedback arrangement.
- Variant control: Distinguish FRS800B from FRS800B-Z during purchasing and installation.
- Documentation-led commissioning: Use the correct wiring diagrams and setup procedures rather than applying parameters from a different servo system.
System Compatibility and Integration Requirements
| Integration area | Required check |
|---|---|
| Servo motor | Confirm the exact motor model and electrical compatibility. |
| Power input | Verify voltage, phase, frequency, and protective-device requirements from the manual. |
| Motor output | Confirm the wiring and ratings required by the connected motor. |
| Feedback system | Verify encoder or other feedback type, connectors, and pin assignments. |
| Command interface | Confirm the control signals and interface used by the existing machine. |
| Protective circuits | Check grounding, overcurrent protection, and emergency-stop integration. |
| Mechanical installation | Verify enclosure clearance, mounting, and cable routing. |
| Replacement variant | Confirm whether the installed unit is FRS800B or FRS800B-Z. |
Dimensions, Mounting, and Connection Notes
Reliable dimensions and terminal assignments have not been confirmed for the exact FRS800B configuration.
Before replacing the unit:
- Photograph the nameplate and all model suffixes.
- Record the connected servo motor’s model number.
- Compare power and motor terminals with the original wiring diagram.
- Verify feedback connectors and control-signal wiring.
- Check mounting dimensions, ventilation clearance, and grounding requirements.
- Follow the equipment manufacturer’s isolation and commissioning procedures.
Servo drives can retain hazardous voltage after the power supply is disconnected. Observe the manufacturer’s specified discharge interval and electrical safety procedure before handling terminals.
Detailed Product Overview
Servo control function
A servo control unit works with a compatible motor and feedback system to regulate motion according to the machine’s command signals. The exact control functions, supported feedback devices, and adjustment procedures for the FRS800B must be established from its technical documentation.
Electrical and motor compatibility
The catalog reference to a 19 A rating is useful as an identification clue, but it should not be treated as a complete sizing specification. Input voltage, output characteristics, motor compatibility, overload behavior, and operating limits must be confirmed before the unit is selected for a replacement.
Maintenance and replacement
For legacy servo equipment, the original configuration is often the most reliable starting point. Preserve the existing wiring records, parameter settings, motor identification, and fault history where available. Before commissioning a replacement, verify the motor direction, feedback operation, protective functions, and machine interlocks according to the approved procedure.
FRS800B
FRS800B
Applications and System Role
As an AC servo control unit, the FRS800B belongs to the motion-control category of industrial automation equipment. Servo control units are commonly used where machinery requires controlled motor movement and coordinated positioning.
Potential system contexts include:
- Automated manufacturing machinery
- Servo-driven positioning and feed mechanisms
- Industrial equipment with closed-loop motor control
- Replacement and maintenance of legacy motion-control systems
These are general servo-control application categories, not verified end-use specifications for every FRS800B installation.
Frequently Asked Questions
Q1: What is the Fuji Electric FRS800B?
It is identified in industrial parts catalogs as an AC servo control unit.
Q2: What is the current rating of the FRS800B?
One parts catalog lists 19 A. Confirm the value and its rating conditions from the unit nameplate or original manual before using it for engineering calculations.
Q3: Is the same as -Z?
They are listed as separate model designations. Do not assume interchangeability without manufacturer documentation or verified cross-reference information.
Q4: Which servo motor is compatible with the FRS800B?
The compatible motor model has not been confirmed from the available information. Check the original equipment documentation and motor nameplate.
Q5: What is the rated input voltage?
A reliable input-voltage specification has not been established here. Use the label and applicable manual rather than assuming a standard servo-drive voltage.
Q6: What information is needed to purchase a replacement?
Provide the complete model number, nameplate photograph, connected motor model, quantity, and required condition. These details help distinguish the correct unit from related variants.
Q7: What should be checked before commissioning?
Verify electrical compatibility, feedback wiring, control signals, grounding, protective circuits, and the applicable configuration procedure before enabling the servo system.
