Product Introduction
The Galil DMC-1842 REV:H is a high-performance, 4-axis motion controller board designed for the standard PCI bus architecture. Built for demanding multiaxis positioning tasks, this card integrates seamlessly into industrial PCs to command either step or servo motors across four independent or coordinated axes. It remains a staple in legacy automation racks, precision CNC setups, and semiconductor fabrication tools where PCI slot connectivity is still required.
Revision H represents a refined hardware iteration of the DMC-18×2 family. It delivers high-speed trajectory calculation, uncommitted digital I/O, and dedicated encoder feedback channels without taxing the host computer’s processor. If you are servicing an existing line running custom Galil DMC code or replacement motion control cards, sticking with the exact REV:H hardware revision prevents unexpected bus timing glitches or signal-level discrepancies during drop-in replacement.
Key Technical Specifications
| Parameter | Value |
| Bus Interface | 32-bit PCI (5V / 3.3V compatible) |
| Number of Axes | 4 axes (configured for servo, stepper, or mixed) |
| Processor | 32-bit RISC processor |
| Positioning Resolution | 32-bit quadrature tracking |
| Minimum Sample Time | 125 µs per axis (62.5 µs for 1–2 axes) |
| Command Output | ±10V Analog (Servo) / Step & Direction (Stepper) |
| Encoder Interface | Quadrature encoder inputs up to 12 MHz |
| Digital I/O | 8 uncommitted inputs, 8 uncommitted outputs |
| Dedicated Inputs | Forward/Reverse limits, Home switch, Abort input per axis |
| Communication Ports | Main 100-pin SCSI-type connector, RS232 auxiliary |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Application Scenarios & The “Trench” Experience
It usually happens at 2 AM on a Friday. A critical PCB pick-and-place gantry throws a fatal axis-position error, grinding the line to a dead halt. The plant engineer swaps the motor drive, but the PCI bus fails to hand off commands—the old DMC-1842 board took a voltage spike through an unisolated limit switch line. Without an exact replacement card on hand, you face thousands of dollars in lost throughput for every hour the machine sits idle while your team attempts to refactor modern Ethernet-based controllers into legacy PC control software. Having a pre-tested DMC-1842 REV:H card ready to slide into the chassis is the difference between a 20-minute repair and a two-week shutdown.
- Semiconductor Wafer Handling – 4-Axis Wafer Transfer Arms – Demands synchronized 4-axis motion control with real-time encoder feedback to prevent wafer clipping.
- Precision CNC & Engraving Machines – X-Y-Z-A Coordinated Interpolation – Requires tight vector calculation and continuous look-ahead trajectory planning over the PCI bus.
- Automated Packaging Machinery – Multi-head Flying Cut-off Drives – Uses high-speed hardware interrupts and registration capture to match conveyor speeds dynamically.
- Medical Diagnostic Equipment – Automated Sample Pipetting Racks – Demands quiet stepper driver output signals paired with strict limit-switch safety overrides.

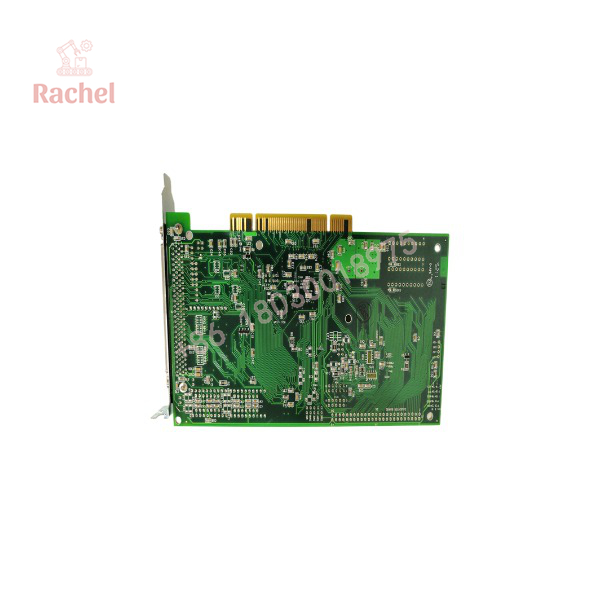

DMC-1842 REV H

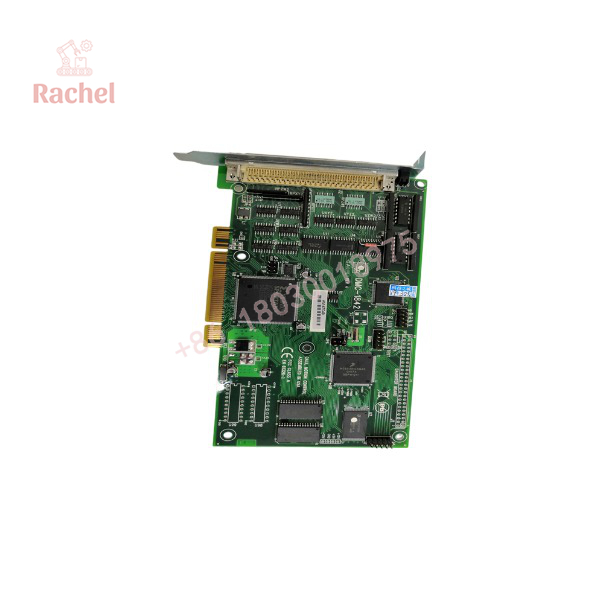

DMC-1842 REV H
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Galil test benches. Every DMC-1842 REV:H undergoes a rigorous 5-step validation process before it gets wrapped:
- Inbound Inspection: Visual audit under high magnification for trace corrosion, trace cracks, blown capacitors, bent 100-pin connector pins, and OEM revision authenticity check.
- Live Rig Testing: Slotted into an industrial PCI test chassis running Galil Suite / SmartTerm. Verifies board identification, PCI handshake, and register initialization.
- Electrical Parameter Checks: High-speed oscilloscope monitoring of Step/Direction pulse frequency generation, ±10V analog command output linearity, and encoder channel quadrature signal decoding.
- Firmware Verification: Logging exact onboard firmware version, checking EEPROM flash sanity, and restoring factory default calibration settings.
- Final QC & Anti-Static Packaging: Cleared boards are cleaned with solvent-free electronic contact cleaner, sealed in heavy-duty ESD shielding bags, and packed in custom foam enclosures.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Watch Out for 100-Pin Connector Strain!
The high-density 100-pin SCSI-style connector on the bracket is notorious for pin damage if heavy interconnect cables (like the ICM-1900 or ICM-2900 breakout boards) hang without strain relief. Always secure cable mounting screws tightly to the card bracket, or you will experience intermittent axis limit faults.
❗ Firmware vs. Software API Conflicts
If your host PC uses older Galil WDK or GalilTools drivers written for Revision A through E, dropping in a REV:H card might throw a driver communication error. Verify that your host software application supports REV:H register structures before swapping.
⚠️ Check Jumpers Before Applying Power!
Take a photo of the jumper block configuration on your dead card before pulling it from the PC. Jumpers handle vital hardware defaults, including 5V vs. 12V encoder power supplies and single-ended versus differential analog command lines. Plug in a board with mismatched jumpers, and you might send 12V directly into a 5V encoder!
❗ Ground Loops Will Fry the Board
The DMC-1842 uses a common ground plane for the PCI bus and digital I/O lines unless an optoisolated breakout module (like the ICM-1900 with opto options) is used. Ensure your motor drive ground and PC chassis ground are bonded to the same earth ground point to avoid ground loop current traveling through the PCI edge connector.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Galil DMC-1842 REV:H hot-swappable?
A: Absolutely not. Pulling or inserting a PCI card while the motherboard is powered will fry the edge connector traces, the PCI bus controller chip, and likely damage your host PC’s motherboard. Always completely isolate power before servicing.
Q: Can I use this card with modern 64-bit Windows 10 or Windows 11 PCs?
A: It depends on your motherboard and driver setup. The card itself relies on a physical 32-bit PCI slot (not PCI Express). While Galil provides 64-bit drivers via their software suite for PCI cards, you will need an industrial motherboard featuring a native 32-bit PCI slot or an active PCI-to-PCIe bridge card.
Q: What is the main difference between hardware Revision H and earlier revisions (like Rev A or D)?
A: Revision H includes manufacturing revisions that address component obsolescence, improved noise immunity on the encoder inputs, and tighter voltage regulation on the onboard processor. Program logic written in Galil code (.dmc) remains backward compatible across revisions.
Q: Is this unit brand new from Galil?
A: The DMC-1842 series is a legacy product line. Our stock consists of high-quality New Surplus (unused original stock) or fully reconditioned units tested to factory specs. We source through vetted global OEM surplus inventories and back every card directly.
Q: What warranty comes with this DMC-1842 REV:H card?
A: Every DMC-1842 REV:H card sold includes a comprehensive 12-month functional warranty. If the card experiences any operational or component failure during normal use within one year, we will repair or replace it immediately.
