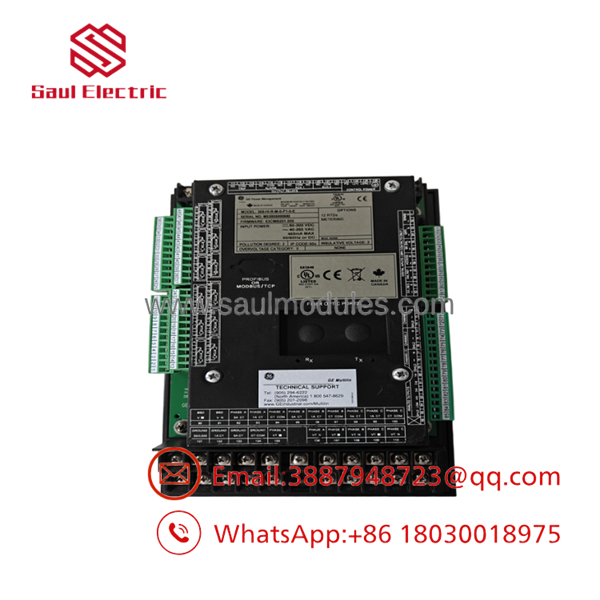

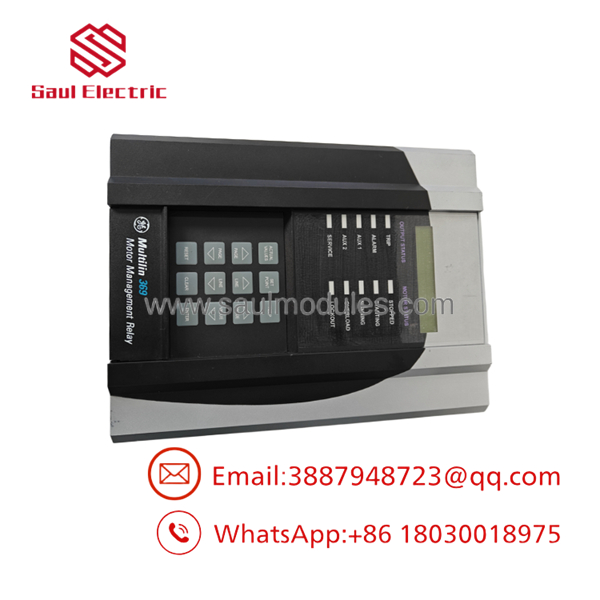

The GE 369-HI-R-M-0-P1-0-E is a fully configured GE Multilin 369 Motor Management Relay intended for medium-sized AC motors operating in critical industrial processes. It combines motor protection, thermal modeling, electrical metering, temperature monitoring, event recording, and Profibus DPV1 communications within a single protection platform.
This particular configuration is one of the more feature-rich versions of the 369 family. It includes 12 RTD temperature inputs, the advanced metering package, Profibus DPV1 networking, and the Enhanced Diagnostics package. Plants already using Siemens PCS 7 or Profibus-based automation frequently selected this configuration because it eliminated the need for additional communication gateways while providing direct access to motor operating data.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Multilin |
| Model | 369-HI-R-M-0-P1-0-E |
| Product Family | Multilin 369 |
| Product Type | Digital Motor Management Relay |
| Control Power | 50–300 VDC / 40–265 VAC |
| RTD Inputs | 12 Built-in |
| RTD Types | Multiple supported sensor types (configured in software) |
| Metering Package | Included |
| Communication Interface | Profibus DPV1 |
| Local Configuration Port | RS232 |
| Rear Communication Port | RS485 |
| Standard Protocol | Modbus RTU |
| Event Recorder | Enhanced |
| Motor Health Report | Included |
| Security Audit Trail | Included |
| Analog Outputs | Four (one base plus three added by metering package) |
| Mounting | Non-drawout Panel Mount |
| Product Status | Legacy Product |
Application Scenarios & The “Trench” Experience
Here’s one that usually happens during the worst possible week.
A 4 MW compressor motor trips repeatedly during startup. Current looks normal. Operators blame the VFD. Electrical maintenance checks the breaker. Still nothing. The actual problem turns out to be an overheated bearing detected by an RTD connected to the 369 relay. Without temperature monitoring, that motor probably would have suffered bearing failure instead of a controlled shutdown.
Typical applications include:
- Power Generation — Boiler feed pumps where winding and bearing RTDs provide early thermal protection.
- Oil & Gas — Large compressor motors integrated into Siemens PCS 7 through Profibus DPV1.
- Mining — Conveyor drives requiring thermal overload, locked-rotor protection, and detailed event records.
- Water Treatment — High-capacity pumps monitored for overload, undercurrent, and winding temperature.
- Pulp & Paper — Induced draft fans where continuous electrical metering assists predictive maintenance.
Field Replacement Example
A chemical plant experienced repeated trips on a 6.6 kV blower motor during summer operation. The existing relay had failed internally after years of service. Because the replacement was the identical 369-HI-R-M-0-P1-0-E configuration, engineers restored the archived settings through EnerVista, verified the Profibus node address, performed secondary injection testing, and returned the blower to service before the scheduled process restart. Replacing the relay took less than a shift. Replacing the motor would have taken weeks.
- 369-HI-R-M-0-P1-0-E
- 369-HI-R-M-0-P1-0-E
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Multilin relay platforms whenever practical.
- Inbound Inspection
- Verify OEM labels and complete ordering code.
- Inspect keypad, LCD, enclosure, and communication ports.
- Check terminals for wear or unauthorized repairs.
- Live Rig Testing
- Apply rated HI control voltage.
- Confirm successful startup.
- Test relay outputs, digital inputs, display, and alarm functions.
- Electrical Parameter Checks
- Verify analog outputs.
- Confirm RTD input operation.
- Test Profibus communication hardware when applicable.
- Firmware Verification
- Record firmware revision.
- Document hardware revision.
- Verify compatibility with EnerVista configuration files.
- Final QC & Packaging
- Functional inspection.
- Anti-static protection.
- Shock-resistant packaging.
- Serial number traceability.
The Veteran’s Tech Trap Guide
⚠️ Verify the Profibus address before powering up.
Duplicate Profibus DPV1 node addresses can stop communication across the entire segment. Check the existing address before removing the original relay.
❗ Don’t ignore the RTD configuration.
This relay includes 12 RTD inputs. If the replacement configuration doesn’t match the installed RTD type or channel assignments, you’ll get false temperature alarms or, worse, miss a genuine overheating condition.
⚠️ Save the settings before replacement.
If the original relay still communicates, back up the complete configuration using EnerVista. Years of customized protection logic and thermal settings are difficult to recreate manually.
❗ Match firmware revisions whenever possible.
Loading a configuration created on a newer firmware revision into an older relay can generate configuration errors or disable certain features. Always compare firmware before commissioning.
Frequently Asked Questions (FAQ)
Q1. What does the P1 option mean?
P1 specifies a Profibus DPV1 communication interface. It enables the relay to exchange protection status, measurements, alarms, and diagnostics with compatible industrial control systems.
Q2. Does this relay include RTD monitoring?
Yes. The R option provides 12 factory-installed RTD inputs for monitoring winding, bearing, or ambient temperatures. These inputs can be configured for different sensor types through relay settings.
Q3. Is this relay hot-swappable?
No. The Multilin 369 is a non-drawout relay. Isolate control power, follow lockout/tagout procedures, and verify all wiring before replacement.
Q4. What does the Enhanced (E) option include?
The E package adds an enhanced faceplate, Motor Health Report, expanded event recorder, learned motor data, motor start data logging, and a security audit trail.
Q5. Can this relay replace another Multilin 369?
Usually yes, provided the ordering code matches. Control power range, communication interface, RTD option, firmware revision, and metering package should all be verified before installation.
Q6. Why are these units still available if production has ended?
Most available inventory comes from plant spare-part programs, cancelled modernization projects, or verified industrial surplus channels. Although the product family has been discontinued, many facilities continue to support installed 369 relays because replacing the entire motor protection scheme would require engineering changes, testing, and production downtime.
Q7. What warranty is typically offered?
Most industrial automation suppliers provide a 12-month warranty covering functional defects under normal operating conditions. Before commissioning, verify the firmware revision, Profibus configuration, RTD setup, and complete ordering code against the original relay.
