GE C6M-9UH-00K UR9CH UR Series C60 CPU Module

Description

Product Introduction

The GE C6M-9UH-00K UR9CH is the CPU module used in selected GE Multilin C60 Universal Relay protection systems. It performs the primary protection calculations, programmable logic execution, communications management, event recording, and relay diagnostics that allow the protection relay to supervise critical power system equipment.

In our field experience, replacing the CPU module is considerably less disruptive than replacing an entire protection relay. However, success depends on matching the exact hardware option and firmware revision. One thing to watch out for is firmware compatibility. A newer CPU card may require a corresponding relay firmware version before an existing settings file can be restored correctly.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Generator breaker protection failures rarely announce themselves.

A gas turbine is ready to synchronize after scheduled maintenance. The breaker refuses to close because the protection relay fails its startup diagnostics. Every field input checks out. CTs and VTs are healthy. Hours later the maintenance team identifies a failed CPU module inside the relay rather than a wiring problem.

Typical applications include:

• Combined Cycle Power Plants — Generator circuit breaker protection where high-speed protection logic is essential.
• Steam Turbine Units — Breaker supervision and synchronization protection.
• Utility Substations — Protection of generator breaker assemblies integrated with SCADA.
• Industrial Cogeneration — Generator feeder protection with event recording and communications.
• Large Process Plants — Protection of captive power generation systems.

Field Replacement Example

During a scheduled outage, a utility replaced a failed C6M-9UH-00K UR9CH CPU module in a C60 relay after repeated processor diagnostic alarms. Engineers backed up the relay settings with EnerVista before removal, installed the replacement CPU, verified firmware compatibility, restored the settings database, and completed secondary injection testing before returning the generator breaker to service. The replacement avoided a complete relay changeout and significantly reduced commissioning time.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boards; we test them on compatible GE Multilin UR Series relay platforms whenever practical.

• Inbound Inspection
  • Verify complete ordering code.
  • Inspect PCB, connectors, and processor components.
  • Confirm OEM labels and serial numbers.
  • Screen for repair history or counterfeit indicators.
• Live Functional Testing
  • Install in a compatible UR relay chassis.
  • Verify successful startup.
  • Confirm processor initialization.
  • Test front panel communication.
• Electrical Parameter Checks
  • Verify supply voltages.
  • Confirm CPU-to-backplane communication.
  • Test memory integrity and hardware diagnostics.
• Firmware Verification
  • Record installed firmware.
  • Verify hardware revision.
  • Confirm compatibility with EnerVista configuration files.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Full serial number traceability.

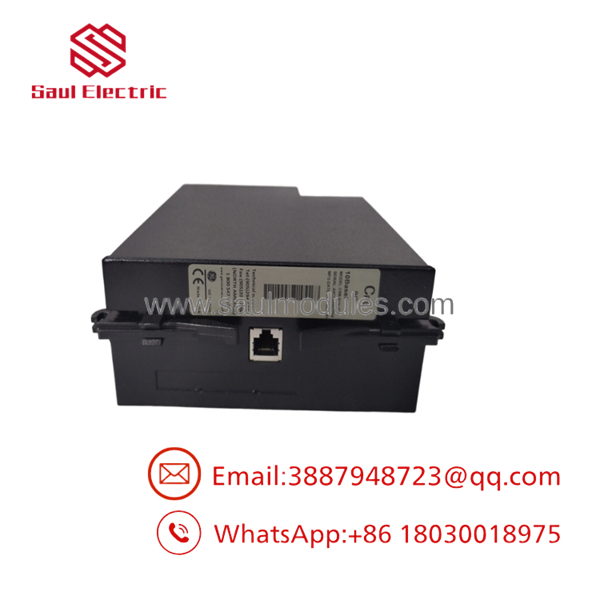

C6M-9UH-00K UR9CH

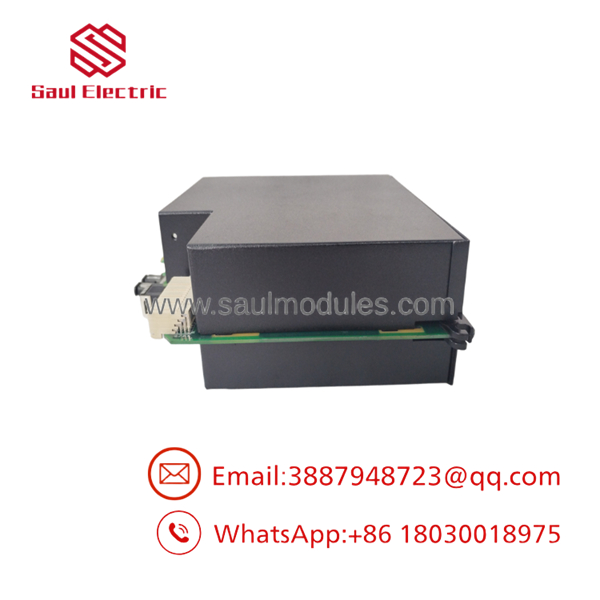

C6M-9UH-00K UR9CH

The Veteran’s Tech Trap Guide

⚠️ Always save the relay settings first.

Before replacing the CPU module, upload the complete settings file, event records, and configuration database using EnerVista. Losing customized protection settings can extend commissioning from minutes to several hours.

❗ Match the firmware revision.

A replacement CPU with incompatible firmware may reject the existing settings file or generate unexpected configuration alarms. Verify compatibility before installation.

⚠️ Don’t diagnose the CPU first.

Many UR relay startup problems originate from failed power supplies, CT/VT interface boards, or internal communication modules. Confirm the relay’s diagnostic logs before replacing the processor.

❗ Follow full protection testing after installation.

Replacing the CPU is not the end of the job. Perform secondary injection tests, verify trip outputs, communications, programmable logic, and event recording before placing the protected generator breaker back into operation.

Frequently Asked Questions (FAQ)

Q1. What is the C6M-9UH-00K UR9CH?

It is the main CPU module used in selected GE Multilin C60 Universal Relay protection systems, responsible for executing protection algorithms, communications, diagnostics, and relay logic.

Q2. Which relay uses this CPU module?

Available documentation associates with the GE Multilin C60 Generator Circuit Breaker Protection Relay.

Q3. Can I replace only the CPU board?

Yes, provided diagnostics confirm that the CPU module is defective and the remaining relay hardware is operating normally. After replacement, restore the relay configuration and perform complete functional testing.

Q4. Will replacing the CPU erase relay settings?

It can. Always create a complete backup using EnerVista UR Setup before removing the existing CPU. Configuration files should be restored only after verifying firmware compatibility.

Q5. Is this module still manufactured?

No. The UR9CH is a legacy UR Series spare part. Most available units originate from industrial surplus inventories or certified refurbishment programs.

Q6. Why do CPU modules fail?

Actual processor failures are relatively uncommon. More frequent causes include aging electronic components, power disturbances, electrostatic damage during maintenance, or long-term thermal stress inside relay panels.

Q7. What warranty is typically provided?

Most industrial automation suppliers provide a 12-month warranty on functionally tested new surplus or professionally refurbished CPU modules. Before energizing the relay, verify the hardware revision, firmware version, protection settings, and communication configuration to ensure compatibility with the existing UR relay platform.
