Description
3. Key Technical Specifications
- Part Number: DL-1200/RTU
- Function: Digital input processing for Remote Terminal Units
- Inputs: Multiple isolated digital input channels
- System: Integrates with GE DL-1200 RTU platform
- Application: SCADA data acquisition and remote monitoring
- Communication: Supports standard RTU protocols
- Construction: Rugged industrial module design
- Mounting: Chassis or rack installation in RTU cabinet
- Operating Conditions: Designed for harsh industrial environments
- Features: Real-time status monitoring and control signal processing
- Compatibility: Part of broader DL-1200 RTU I/O family
4. Product Introduction & Supply Chain Strategy
The GE DL-1200/RTU is a digital input module that collects discrete signals from field devices for processing within the DL-1200 Remote Terminal Unit. It enables reliable monitoring of equipment status, alarms, and binary inputs in SCADA and automation networks.
New Surplus availability supports efficient inventory turnover and minimizes stock-outs in active RTU deployments. It reduces total cost of ownership by providing OEM-level reliability without the risks of refurbished I/O that can cause intermittent signal errors or downtime in remote operations. This approach complements vendor-managed stock strategies for ongoing system support.

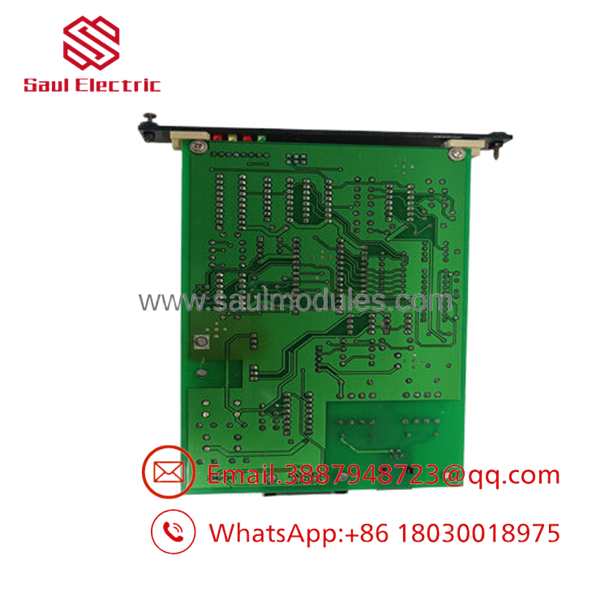

- DL-1200 RTU

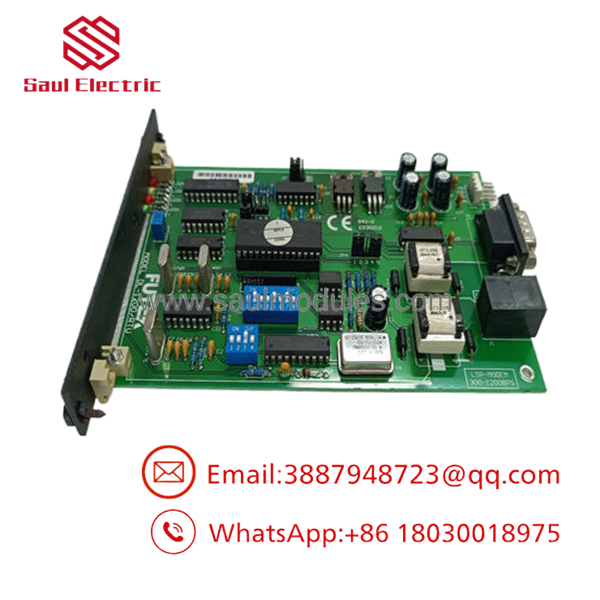

- DL-1200 RTU
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out/tag-out power to the RTU chassis. Wear ESD protection and photograph existing module wiring, terminal assignments, and addressing. Document input signal types and configurations.
Stage 2: Removal De-energize the affected section. Disconnect field wiring from the old module terminals. Remove mounting screws and extract the module carefully.
Stage 3: Installation (Clone & Seat) Install the new DL-1200/RTU module in the same slot. Replicate terminal wiring exactly according to photos and drawings. Secure the module and verify connections.
Stage 4: Power-On & Testing Restore power and check module status indicators. Verify each digital input registers correctly in the RTU or SCADA system. Perform loopback or field signal tests to confirm proper operation.
6. Firmware/Software Versions & Upgrade Notes
The DL-1200/RTU digital input module operates with the main RTU controller firmware. No separate firmware is loaded directly on the I/O module.
Ensure the RTU processor firmware is compatible with the I/O configuration. Firmware upgrades on the controller should be tested offline first to avoid disrupting active inputs or protocol communications during hardware swaps.
7. Frequently Asked Questions (FAQ)
Q: Is the DL-1200/RTU a genuine New Surplus module? Yes. It is original GE stock that has not been installed or used in the field, with full QC testing completed.
Q: Why is New Surplus preferred for RTU I/O modules? Digital input modules in remote locations must deliver uninterrupted signal accuracy. Refurbished parts can introduce noise, false readings, or failures that impact SCADA reliability and operational decisions.
Q: Is this module obsolete? DL-1200 systems are established platforms. Strategic spares like this digital input module help sustain operations while evaluating long-term migration paths.
Q: What is the typical application? It acquires digital status signals from switches, breakers, relays, and other binary devices for remote monitoring and control in utility and industrial SCADA systems.
Q: Does it require special configuration? Wiring follows standard terminal mapping. Address and scaling are handled in the main RTU controller or SCADA software.
Q: What warranty is provided? We offer a 1-2 year warranty covering manufacturing defects and normal performance in RTU applications.
Q: Can it be hot-swapped? Follow manufacturer guidelines. Many RTU I/O modules support live replacement with proper procedures, but always confirm with system documentation to protect ongoing operations.
