Description
Product Introduction & Engineering Value
When turbine control cabinets and industrial DC drive racks demand reliable switching of high-voltage contactor coils, the GE DS200CDBAG1ABA steps in as the rugged power driver interface. Operating primarily within the SPEEDTRONIC Mark V turbine control framework and EX2000 excitation systems, this board bridges sensitive microprocessors with heavy electromagnetic field coils.
The card utilizes power switching transistors mounted alongside wire-wound ceramic resistors, onboard inductive suppression diodes, and localized fuse protection. This discrete power architecture prevents high-voltage switching inductive kickbacks from creeping back into the main control bus, saving main processor cards from severe electrical damage during rapid contactor cycling.
Technical Specifications
| Parameter | Specification |
| Board Revision Code | DS200CDBAG1ABA (Base: CDBA, Group: G1, Revision: ABA) |
| System Compatibility | GE SPEEDTRONIC Mark V Turbine Control / EX2000 Excitation |
| Power Drive Outputs | High-current solid-state driver channels for DC contactor coils |
| Terminal Connections | Heavy-duty green screw-terminal blocks (1TB array) |
| Bus Interface | Pin-header connectors for ribbon cable system bus links |
| Circuit Protection | Onboard cartridge fuse (FU1), metal-oxide varistors (MOVs), flyback diodes |
| Thermal Dissipation | Board-mounted ceramic power resistors with high-heat standoff pads |
| Mounting Configuration | Standard card-rack standoff holes with grounded corner eyelets |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Field Application & The “Trench” Experience
During an annual turnaround on a combined-cycle power plant, the main generator field breaker failed to close during pre-commissioning checks. Operators observed a persistent “Contactor Coil Driver Open” fault on the operator interface. Troubleshooting revealed that an unexpected voltage spike had blown the output driver transistor on the existing CDBA board, leaving the main field contactor de-energized. Our field technician swapped in a bench-certified DS200CDBAG1ABA unit, verified fuse integrity, and restored full generator excitation within 25 minutes of arriving at the rack.
Niche Application Scenarios:
- Frame 7/9 Gas Turbine Starter Systems: Driving heavy DC cranking motor contactors during turbine purge and ignition cycles.
- Synchronous Generator Excitation Cubicles: Managing emergency field-discharge contactor switching sequences.
- Heavy DC Industrial Drives: Controlling main line loop contactors and dynamic braking resistor solenoids.

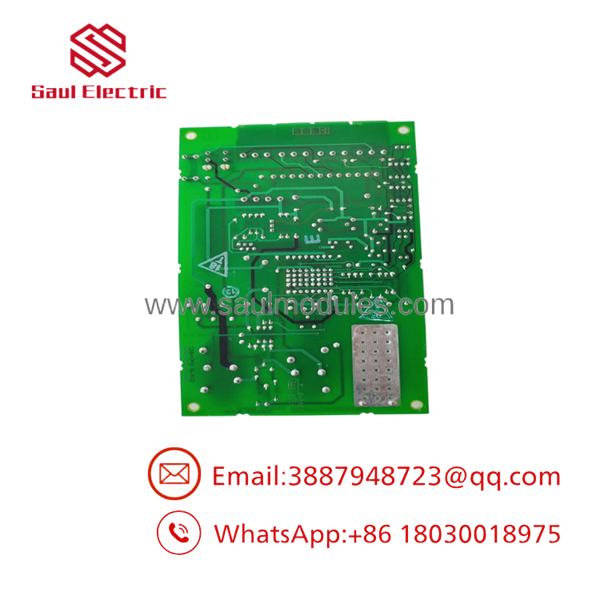

- DS200CDBAG1ABA

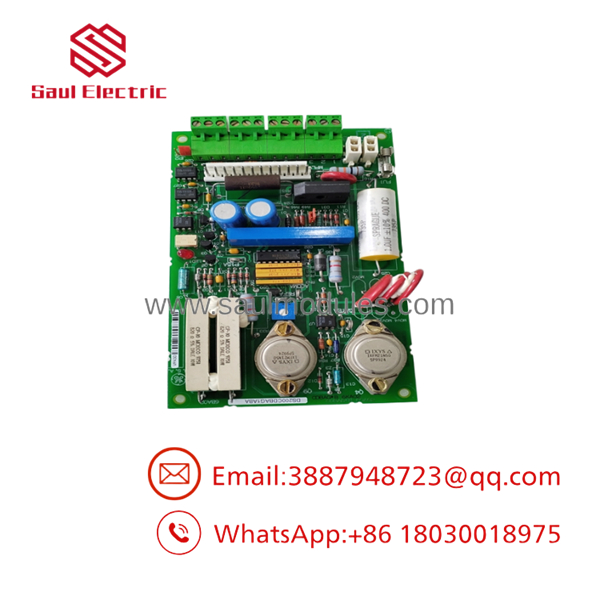

- DS200CDBAG1ABA
Transparency SOP: QA & Testing
- Visual & Structural Audit: Microscopic inspection of heat sinks, ceramic resistors, and copper traces to detect thermal fatigue or stress fractures.
- Semiconductor & Passive Bench Checks: Testing power switching transistors, flyback protection diodes, and MOVs for leakage or degradation.
- Fuse & Power Rail Isolation: Continuity testing across fuse FU1 and static resistance measurements across backplane power lines.
- Live Coil Drive Simulation: Installing the board on a live Mark V test bench to trigger real-world inductive contactor loads under full voltage.
- Thermal Imaging Cycle: Monitoring wire-wound ceramic resistors with FLIR cameras under continuous drive conditions to verify heat dissipation.
- ESD Preservation: Vacuum-sealing the card in static-shielding bags with fresh desiccation packs prior to dispatch.
The Veteran’s Tech Trap Guide
⚠️ Match the Revision Suffix (ABA): GE revision codes matter. While base board numbers like DS200CDBA define the underlying circuit layout, the trailing letters (G1ABA) indicate specific component ratings and trace revisions. Dropping an earlier G1A card into a system expecting an ABA revision can lead to premature driver failure under high current loads.
PRO TIP: Mind the inductive flyback diodes! If you burn out this board repeatedly, don’t just keep replacing the card—check the external contactor coil itself. A shorted internal coil or a damaged external flywheel diode on the contactor frame will instantly blast high voltage back into the DS200CDBAG1ABA switching transistors upon de-energization.
⚠️ Check the Ceramic Resistor Clearances: The large white ceramic resistors run hot by design. When installing or handling the card, ensure these resistors are not bent flat against adjacent capacitors or signal lines. They require physical air space to prevent heat damage to surrounding board traces.
Dynamic FAQ
A: The DS215 series is generally a newer manufacturing iteration of the DS200 series. While they often share identical pinouts and drive functions, you should always verify form-fit-function compatibility with your specific Mark V panel documentation before substituting a 215-series card for a 200-series card.
Q: Do I need to reflash firmware when replacing this board?
A: No. The is a hardware driver card without onboard programmable EEPROMs. It processes direct physical control signals from the main controller; simply swap the hardware, match the wiring, and restore power.
Q: What indicates that the onboard fuse FU1 has blown?
A: When FU1 opens, all downstream contactor outputs on the board lose power, resulting in a loss of driver function without affecting main bus communication logic. You can check continuity across FU1 with a multimeter.
Q: Are these boards available as new or refurbished?
A: Due to the mature lifecycle of GE SPEEDTRONIC Mark V hardware, these units are supplied as fully bench-tested New Surplus or factory-certified Refurbished stock.
Q: What warranty comes with this driver board?
A: All replacement boards carry a full 1-year replacement warranty covering all electronic components under normal operating conditions.
