Description
Core Product Summary (Brand / Model / Key Attributes)
The GE DS200DCFBG1BGB is a DC Feedback Power Supply Board (functional acronym DCFB) manufactured by General Electric for the Mark V series and related drive platforms. It supplies control-level power to the drive and 115 VAC power to enclosure fans.
The board is used in AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000 systems. It accepts input voltages in the range of 38–115 VAC from a control power transformer and incorporates circuits for control-level supplies, motor field power, driver stages for SCR gate pulse generators, and AC/DC signal monitoring. Configuration is performed via on-board jumpers and DIP switches. Diagnostic indication is provided by LEDs and a neon lamp for fuse status. The associated instruction manual is GEI-100028.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Part number | DS200DCFBG1BGB |
| Functional description | DC Feedback Power Supply Board |
| Functional acronym | DCFB |
| Series compatibility | Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, EX2000 |
| Input voltage | 38–115 VAC (via control power transformer) |
| Instruction manual | GEI-100028 |
| Configurable jumpers | 12 (13 on certain later revisions) |
| DIP switches | 7 |
| Protective fuses | 3 |
| Status indicators | 2 LEDs + 1 neon lamp (fuse diagnostics) |
| Test points | 5 |
Detailed Product Overview
The GE DS200DCFBG1BGB is a power supply and feedback board designed for GE industrial drive and excitation systems based on the Mark V architecture. When installed, it receives AC power (typically 38–115 VAC) from the control power transformer and generates the regulated control-level voltages required by the drive electronics. It also supplies 115 VAC to enclosure cooling fans.
In addition to power distribution, the board contains circuits that process motor-related feedback signals, including armature current and voltage, motor field current, and AC line current. It provides driver circuits for the SCR gate pulse generators used in the motor field power path. An analog representation of motor voltage is made available for communication with the SDCC or LDCC control boards.
Configuration options are set by twelve jumpers (or thirteen on certain later revisions) and seven DIP switches. Three protective fuses safeguard the power circuits; their status is indicated by two LEDs and one neon lamp. Five test points allow measurement of key voltages and signals during commissioning or troubleshooting.
The board is intended for use only in the compatible GE drive families listed above. In EX2000 applications the functional role differs slightly from its use in the pure drive platforms. Installation, jumper settings, and any maintenance must follow the procedures given in GEI-100028 and the system-level documentation for the host drive.

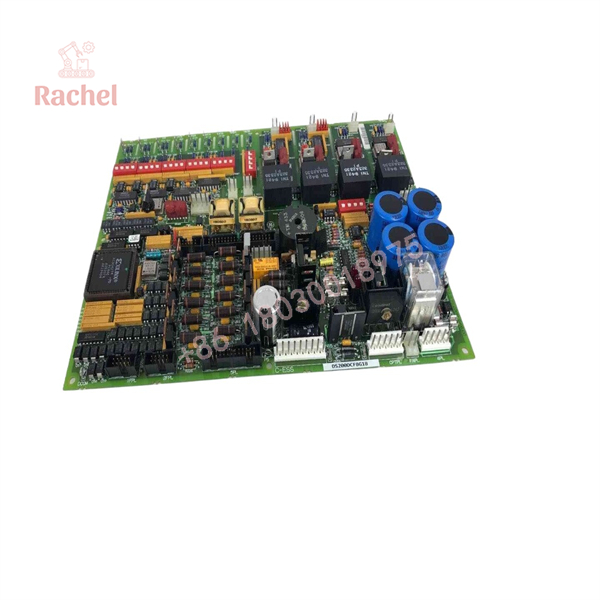

DS200DCFBG1BGB

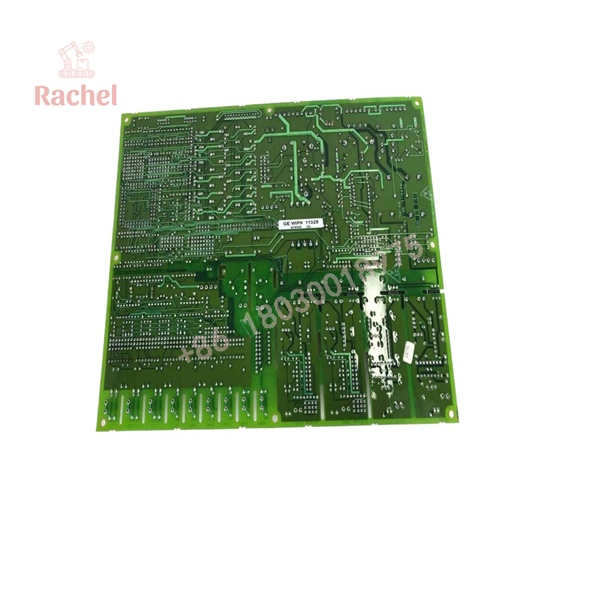

DS200DCFBG1BGB
Engineering Selection Highlights
- Confirm the exact part number DS200DCFBG1BGB (including revision suffix) against the installed unit or the system parts list.
- Verify compatibility with the specific drive family (AC2000, CB2000, DC2000, FC2000, ME2000, or EX2000).
- Ensure the control power transformer supplies a voltage within the 38–115 VAC range.
- Set jumpers and DIP switches according to the application requirements documented in GEI-100028.
- Observe fuse status LEDs and the neon indicator after power-up.
- Use the five test points for voltage verification during installation or maintenance.
- Follow GE-recommended handling, storage, and electrostatic-discharge precautions for printed-circuit boards.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host platforms | Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, EX2000 | Confirm exact system type |
| Input power | 38–115 VAC from control power transformer | Frequency range depends on input |
| Control boards | Interfaces with SDCC / LDCC | Provides analog motor-voltage representation |
| Configuration | Jumpers and DIP switches | Refer to GEI-100028 |
| Diagnostics | LED and neon fuse indicators, five test points | Visual and measurement points |
FAQ
What is the GE DS200DCFBG1BGB?
It is a DC Feedback Power Supply Board (DCFB) used in GE Mark V and related drive systems (AC2000, CB2000, DC2000, FC2000, ME2000, EX2000). It supplies control-level power and enclosure-fan power and processes motor feedback signals.
What input voltage does the board accept?
38–115 VAC supplied via the control power transformer.
What circuits are included on the board?
Control-level power supplies, motor field power circuits, driver circuits for SCR gate pulse generators, and AC/DC monitoring circuits for armature, field, and line signals.
How is the board configured?
By twelve (or thirteen) jumpers and seven DIP switches. Settings must follow the application requirements in manual GEI-100028.
What diagnostic features are provided?
Two LEDs and one neon lamp indicate fuse status. Five test points allow measurement of key voltages and signals.
Which manual applies to this board?
GEI-100028 (Power Supply Board Manual).
