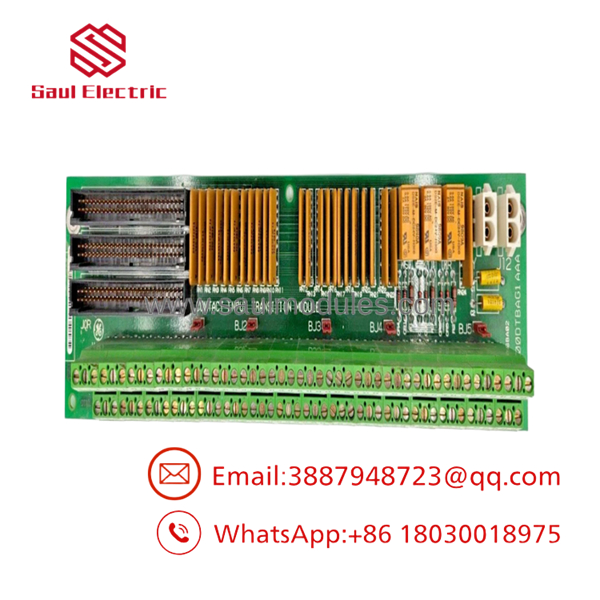

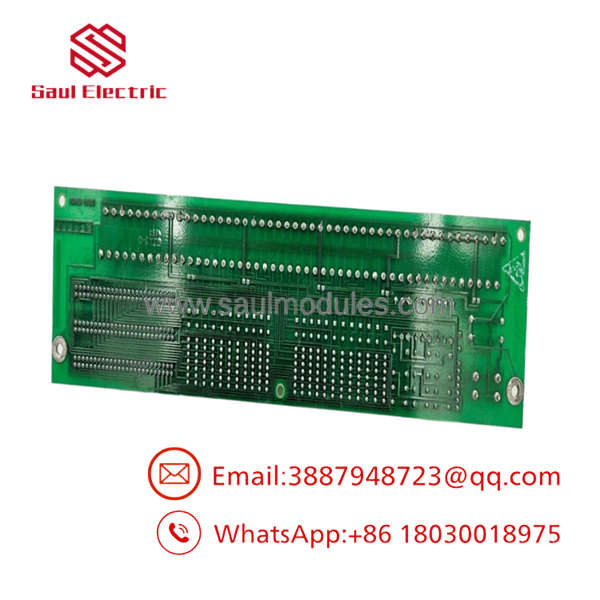

GE DS200DTBAG1AAA Digital Terminal Board

Description

Product Introduction

The GE DS200DTBAG1AAA operates as a primary digital terminal board within legacy GE Speedtronic Mark V turbine control systems and Innovation Series drives. It acts as the direct physical interface for field wiring, receiving discrete dry-contact signals from limit switches, pressure permissive contacts, and auxiliary relays, while routing digital command signals out to control devices.

Positioned upstream of the main control processors, the DTBAG1AAA board features robust onboard isolation, optical coupling pathways, and passive surge suppression. This architecture protects sensitive downstream microprocessors from ground loops, high-voltage field spikes, and electrical noise native to industrial power generation environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A combined-cycle facility experiences a lock-out during a scheduled startup routine. Diagnostic logs point to a dropped permissive signal from the main steam isolation valve—even though the physical switch in the field is fully engaged. Tracing the cabinet leads to a burnt trace and failed isolation diode on the aging DTBA terminal board caused by a recent field ground fault. With the turbine sitting idle and power grid penalties mounting by the hour, swapping in a fully bench-tested terminal card restores field signal integrity and allows the unit to sync to the grid.

• Gas Turbine Systems – Emergency Stop & Permissive Circuits – Routes field limit switch states and protective Interlock signals to the core processing core.
• Steam Turbine Control – Auxiliary Valve Monitoring – Captures discrete status indications from hydraulic actuators and steam drain valves.
• Heavy Industrial Drives – Large AC/DC Drive Cabinets – Interfaces external start/stop interlocks, fault resets, and breaker auxiliary contacts to the drive controller.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V racks.

1. Inbound Inspection: Physical check under magnification for trace damage, cracked terminal blocks, cold solder joints, and original GE part number etching (DS200DTBAG1AAA).
2. Ribbon Header Integrity Check: Inspection of all multi-pin ribbon connectors for bent, corroded, or pushed-back pins.
3. Continuity & Circuit Isolation: High-potential and point-to-point electrical checks across field terminals to verify no shorted channels or blown trace paths.
4. Live Rig Handshake: Mounted into a energized test rack to verify discrete signal pass-through and communication handshakes with the primary control processors.
5. Anti-Static Packaging: Sealed in static-shielding ESD bags with fresh desiccant prior to protective foam packaging.

DS200DTBAG1AAA

DS200DTBAG1AAA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Map the Jumpers First: The DTBA board uses hardware jumpers to set control voltages and pull-up resistor paths. Take a clear, high-resolution photo of the jumper positions on the old card before you loosen a single screw. Trust me on this—misconfigured jumpers can pull down an entire 125V DC control bus.
• ❗ Label Every Single Field Wire: Screw terminals look straightforward until you have 40 loose wires hanging in a tight cabinet. Tag each wire according to the terminal strip numbers on the board before disconnecting.
• ⚠️ Inspect the Ribbon Cable Lutches: The plastic retention latches on the ribbon headers can become brittle after decades of thermal cycling inside control cabinets. Handle cable connectors gently so you don’t snap the locking ears on the new board.
• ❗ Verify Field Voltage State: Always isolate power to the field contact loops before swapping this board. An active 125V DC field wetting voltage touched against an adjacent signal pin will instantly destroy the onboard surface-mount components.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the “G1AAA” suffix mean in the part number?

A: G1 designates the functional group (Group 1 version), while AAA represents the specific revision history of the artwork and component layout. A G1AAA revision incorporates all early factory baseline updates for this board type.

Q: Can I replace a DS200DTBAG1AAA with a DS200DTBAG1AAB or higher revision?

A: Generally, yes. GE terminal boards are backward compatible within the same group category (G1). However, always verify that jumper configurations on the newer revision match your original board setup exactly.

Q: Is firmware flashing required after installing this terminal board?

A: No. The DS200DTBAG1AAA is a hardwired passive/interface terminal board without flashable microcontrollers. It requires no software installation or firmware downloading; it operates strictly on hardware passthrough and local component logic.

Q: Why buy surplus or reconditioned Mark V boards instead of going through the OEM?

A: The Mark V system platform is mature and widely discontinued by GE. Surplus inventory provides access to original, genuine OEM components without waiting for custom manufacturing runs or paying exorbitant legacy replacement fees.

Q: What warranty is provided with this board?

A: This board comes backed by a full 12-month replacement warranty from the date of delivery, covering all functional operations and hardware integrity.
