Description
Product Introduction & Engineering Value
Ask any veteran drive tech who has serviced legacy GE power conversion racks: when a three-phase bridge drops a leg, the FCGD card is the first suspect on the list. The GE DS200FCGDH1B serves as the critical gate drive interface, turning low-voltage CPU timing signals into precise, high-current pulses that trigger heavy-duty SCRs.
Without clean, noise-free gate pulses, phase-controlled rectifiers risk firing asymmetric currents, leading to severe harmonic noise, blown fuses, or tripped DC drive breakers. Keeping a tested DS200FCGDH1B on hand prevents minor firing discrepancies from degrading entire motor armatures or generator excitation fields.
Technical Specifications
- Board Classification: Firing Control Gate Drive PCB (FCGD)
- System Integration: GE SPEEDTRONIC Mark V, EX2000 Excitation, DC2000 Drives
- Gating Target: Silicon Controlled Rectifiers (SCRs) / Thyristor Bridge Assemblies
- Isolation Rating: Pulse-transformer isolation rated for high common-mode transient voltage suppression
- Input Interface: High-density ribbon cable header receiving firing angle commands from the main processor
- Feedback Circuits: Integrated line current/voltage zero-crossing detection monitoring
- Visual Indicators: Surface-mounted status LEDs for supply rail verification and channel pulse monitoring
- Operating Ambient: -30°C to +65°C (-22°F to +149°F)
- Form Factor: Slide-in card cage installation with front edge connectors
Field Application & The “Trench” Experience
A steel rolling mill experienced erratic torque spikes on a 3,000 HP DC stand motor. Drive logs recorded intermittent phase imbalance alarms under heavy billet passes. Oscilloscope traces at the bridge showed missing gate pulses on phase B, pointing to a failing pulse transformer on the aging FCGD card. Our field technician swapped the board with a bench-tested DS200FCGDH1B, verified signal symmetry across all six gate legs, and had the mill rolling steel again before the shift ended.
Niche Application Scenarios:
- Large DC Drive Armature Supplies: Managing six-pulse or twelve-pulse thyristor firing angles under dynamic motor loads.
- Generator Static Excitation Systems: Supplying precise gate control to main excitation bridges during utility synchronization.
- Heavy-Duty Pump Soft-Starters: Regulating voltage ramp profiles during high-inertia pump motor startup cycles.
Transparency SOP: QA & Testing
- [ ] Visual Component Audit: Microscopic inspection of pulse transformers, optocouplers, and signal traces for thermal discoloration or micro-cracks.
- [ ] Passive Component Verification: Measuring resistor networks and diodes for proper forward voltage and impedance ratings.
- [ ] Signal Isolation Check: High-pot testing insulation resistance between gate drive output channels and backplane logic connections.
- [ ] Simulated Gate Load Testing: Connecting the board to a live six-pulse simulator to evaluate gate pulse rise times, pulse width, and peak current.
- [ ] Zero-Crossing Synchronization Test: Verifying firing timing accuracy relative to simulated three-phase AC reference waveforms.
- [ ] ESD Vacuum Packaging: Sealing in anti-static shielding bags with fresh desiccants to preserve board integrity in transit.

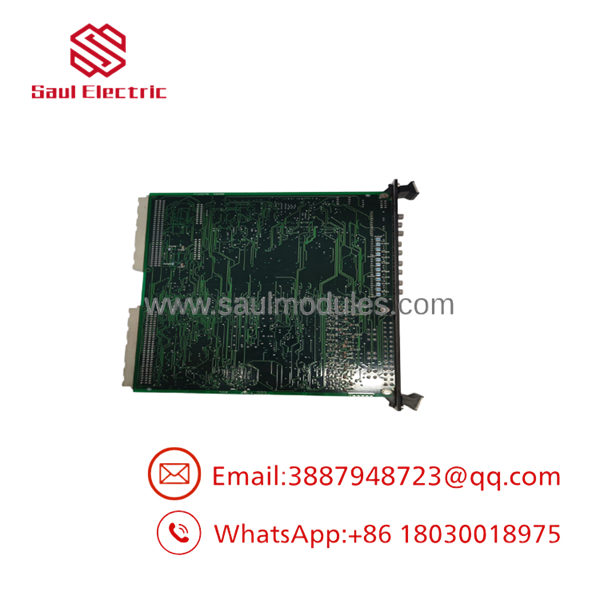

- DS200FCGDH1B

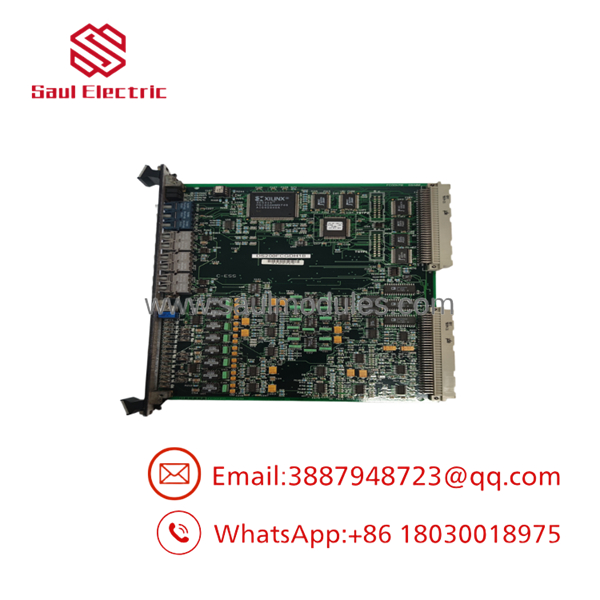

- DS200FCGDH1B
The Veteran’s Tech Trap Guide
⚠️ Verify Gate Cathode Cable Continuity: Before powering up a replacement DS200FCGDH1B, inspect the twisted-pair leads running to the SCR gate/cathode terminals. A loose or frayed gate wire will reflect high voltage back into the driver card, destroying the fresh pulse transformer instantly upon excitation.
PRO TIP: Scope the pulses under load! Always use a differential probe or floating oscilloscope to check firing waveforms on the test points before dropping the drive back into full production. Uneven pulse amplitudes usually mean an upstream power rail voltage drop or a misseated ribbon cable.
⚠️ Mind the Revision Suffix (H1B): Ensure the group and revision numbers match your existing cabinet specs. Inserting an unmatched group revision into a high-speed excitation rack can alter firing pulse rise times and cause dV/dt misfiring in sensitive SCR bridges.
Dynamic FAQ
Q: What does the “FCGD” acronym stand for in GE nomenclature? A: It stands for Firing Control Gate Drive. This indicates the PCB’s dedicated job of driving SCR gates within power conversion bridges.
A: No. The is an analog/discrete gate driver card. It receives firing commands directly from the main processor; no onboard firmware flashing is needed.
Q: What causes pulse transformer failure on this board? A: Shorted SCR gate-cathode junctions, extreme line surges, or excessive cabinet thermal stress are the primary causes of breakdown in onboard pulse transformers.
Q: Are these replacement boards brand new or tested surplus? A: Due to the maturity of GE Mark V and DC2000 systems, these boards are available as fully certified New Surplus or factory-refurbished stock, fully bench-tested before shipping.
Q: What warranty is provided with this firing control card? A: Every unit comes backed by a 1-year replacement warranty covering all functional performance and electronic components under standard operating conditions.
