GE DS200FCRRG1AKD Field Control Regulator Board FCRR

Description

3. Product Introduction

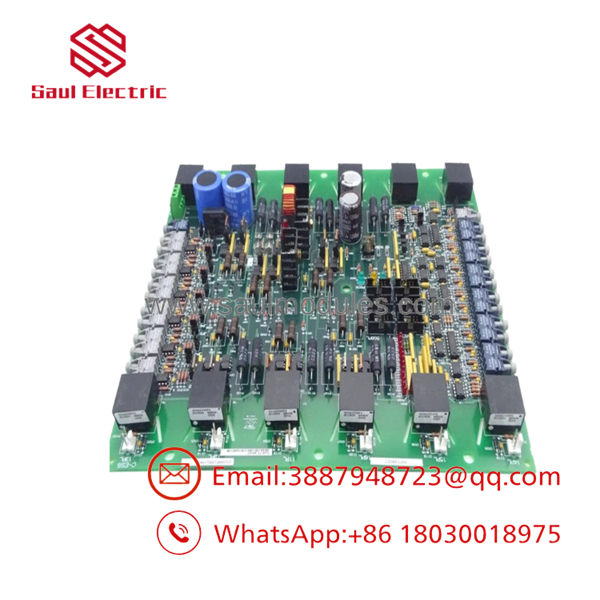

The GE DS200FCRRG1AKD functions as a Field Control Regulator Board (FCRR) within legacy GE Speedtronic Mark V turbine systems, Directo-Matic 2000 drives, and heavy-duty industrial DC drive architectures. Positioned within the drive regulator rack, the FCRR board maintains precise control over the main generator or motor field current to stabilize output voltage, speed, and torque.

Equipped with onboard digital processors, socketed firmware PROMs, and SCR gate pulse generators, the DS200FCRRG1AKD monitors real-time field current feedback via CTs and shunts. It dynamically adjusts SCR firing angles to prevent over-excitation, thermal overload, or field loss conditions.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During heavy-load operation on an industrial motor drive, the system trips unexpectedly on a field current imbalance fault. Diagnostic logging points to irregular SCR firing pulses originating from an aging field regulator card. Maintenance technicians perform lock-out/tag-out, unseat the degraded module, and transfer the socketed parameter PROMs onto a replacement DS200FCRRG1AKD board. Once re-seated and verified against DIP switch settings, the drive powers up cleanly with smooth field current regulation across the operating curve.

• DC Motor Field Control – Flux & Torque Regulation – Manages field weakening and full-field current loops in large industrial drives.
• Turbine Generator Excitation – Field Current Stabilization – Regulates exciter field current within Mark V turbine control racks.
• Drive System Maintenance – Modular Drop-In Replacement – Replaces failing regulator channels without requiring backplane rewiring.

6. Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Audit: High-magnification inspection for trace fractures, solder fatigue, thermal stressing around pulse transformers, and connector pin integrity.
2. Firmware Socket Integrity Check: Inspecting EPROM socket pins for oxidation or mechanical bending to ensure clean address/data bus contacts.
3. Power Rail Bench Verification: Supplying regulated DC power to verify internal 5V, 15V, and reference voltage rails.
4. SCR Firing Pulse & Signal Test: Injecting simulated current feedback to measure firing pulse symmetry and amplitude on an oscilloscope across all output channels.
5. Anti-Static ESD Packaging: Sealed in heavy-duty ESD static-shielding bags with fresh desiccant packages prior to protective foam packaging.

DS200FCRRG1AKD

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ ALWAYS TRANSFER YOUR SOCKETED PROMs: The DS200FCRRG1AKD relies on socketed EPROMs containing drive-specific parameter maps and firmware. Carefully extract and transfer the PROMs from your original board using an ESD-safe tool.
• ❗ POWER DOWN THE RACK BEFORE EXTRACTING: Backplane slots carry active logic and bus voltages. Hot-swapping the card can damage onboard microprocessor lines or trigger unintended SCR firing.
• ⚠️ MATCH DIP SWITCHES AND JUMPERS: Hardware DIP switches on the card set address configurations and feedback gain levels. Match all switch positions pin-for-pin before restoring power.
• ❗ USE FULL ESD PROTECTION: CMOS logic ICs and microprocessors on the board are sensitive to static discharge. Always wear a grounded ESD wrist strap when handling the card.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the DS200FCRRG1AKD board?

A: It is a Field Control Regulator Board (FCRR) that manages field current regulation, SCR gate pulse generation, and field protection loops in GE drives and Mark V systems.

Q: Is the DS200FCRRG1AKD backward-compatible with earlier revisions like G1A or G1C?

A: Yes. Revisions like G1AKD represent cumulative functional updates and are backward-compatible, provided original socketed PROMs and DIP switch configurations are transferred.

Q: Does replacing this board require laptop software configuration?

A: Typically no. Operational parameters are stored in the socketed PROMs. Swapping the original PROMs over to the replacement card handles parameter migration.

Q: What warranty coverage comes with this module?

A: Every unit is backed by a full 12-month replacement warranty covering SCR pulse execution, microprocessor stability, and signal processing accuracy.
