3. Key Technical Specifications
- Insulation Voltage: 300 V
- Fuse Rating: 5 x 20 mm, 250 V, 2.5 A
- RTD Inputs: 3 RTDs (stator/bearing), programmable types (100 Pt, 100 Ni, 120 Ni, 10 Cu)
- RTD Range: –40 to 200 °C (–40 to 400 °F)
- RTD Accuracy: ±2 °C / ±4 °F
- Overload Curves Trip Time Accuracy: ±1% of displayed value
- Control Power: 120/240 V AC or 125 V DC typical (verify label)
- Communications: 2-wire RS485 Modbus
- Analog Output: 4-20 mA (AN option)
- Contact Ratings: 10 A resistive, 250 V AC
- Ambient Temperature: –20 to +60 °C operating
- Mounting: Panel mount with IP class enclosure
4. Product Introduction & Supply Chain Strategy

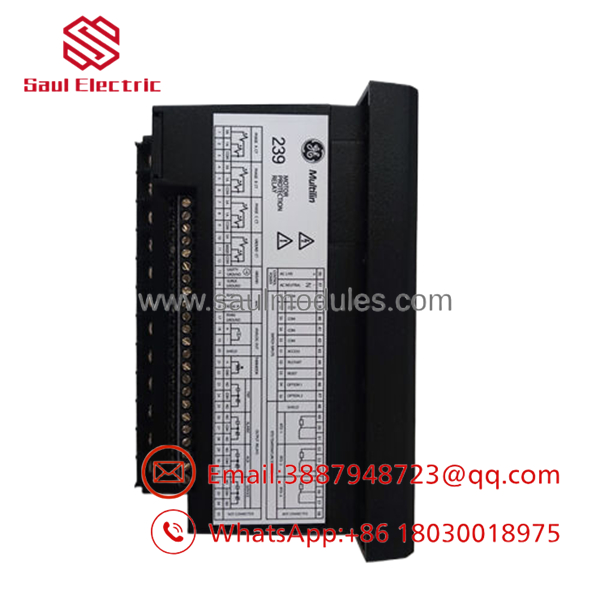

The GE 239-RTD-AN is a motor protection relay that safeguards three-phase AC motors against overload, thermal damage, phase faults, and other conditions that cause failure. It includes built-in RTD monitoring for stator and bearing temperatures plus an analog output for process integration. This relay serves critical applications in pumps, fans, compressors, and conveyors across manufacturing, utilities, and oil & gas facilities.
Buying this as New Surplus delivers strong total cost of ownership by securing genuine OEM stock before full obsolescence hits. It avoids the high risks of refurbished units that carry hidden capacitor or relay degradation leading to unplanned downtime costing tens of thousands. Strategic buffer stock of 1-2 units on-site acts as insurance against long lead times on legacy parts while minimizing carrying costs through vendor-managed options for slow movers. This approach supports reliable plant operations without excess obsolete inventory.
- 239-RTD-AN
- 239-RTD-AN
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out and tag-out the motor starter. Gather an ESD wrist strap, screwdriver set, and camera. Photograph the existing module’s DIP switches, terminal wiring, and any jumper settings for exact replication. Verify control power specifications match your system.
Stage 2: Removal Power down the panel. Carefully extract the old relay by loosening mounting screws and sliding it out straight to prevent bending backplane pins or damaging connectors. Inspect the backplane for debris.
Stage 3: Installation (Clone & Seat) Set DIP switches and jumpers on the new 239-RTD-AN to match the photos exactly. Align the module with the panel cutout and seat it firmly into the connectors. Secure with mounting hardware. Reconnect all wiring per the documented layout.
Stage 4: Power-On & Testing Apply power and check the 24V rails for shorts. Monitor front-panel LEDs for RUN status versus ERR or TRIP. Verify Modbus communications, test RTD readings, and download or confirm motor protection settings. Perform a functional test under no-load before returning to service.
6. Firmware/Software Versions & Upgrade Notes
Recommended firmware for the 239-RTD-AN is revision 2.6x or the version documented on the unit label. Use GE Multilin 239PC software version 2.6x or newer for configuration.
Firmware upgrades require matching the exact order code options (RTD-AN). Backward compatibility is generally maintained, but verify settings after any change. Downgrading firmware during a hardware swap risks communication timeouts or protection element mismatches. Always document the current firmware version before replacement and test thoroughly in a controlled environment.
7. Frequently Asked Questions (FAQ)
Why is this New Surplus unit priced lower than current OEM new but higher than refurbished options? Our units come from authorized channels and verified OEM stock. Pricing reflects real acquisition costs for genuine legacy parts while delivering full expected lifespan and a solid warranty. Refurbished options carry unknown internal wear that often leads to early failure.
Are these really new? Yes. These are New Surplus units in original packaging, opened only for quality verification. They show zero wear on connectors, no soldered repairs, and come with traceable documentation. They are not pulled from decommissioned equipment.
What is the obsolescence status? The 239 series is discontinued. We recommend maintaining 1-2 units of buffer stock for critical motors. Last-time-buy opportunities are limited, so plan accordingly to avoid extended stock-outs.
Can this relay be hot-swapped? We advise against hot-swapping whenever possible. Proper lock-out/tag-out and full power-down minimizes risks to the backplane and ensures safe configuration transfer.
Will my existing motor settings and programming transfer? Settings are stored in the relay. Document all parameters before removal. After installation, verify and reload settings if needed using the 239PC software to prevent protection gaps.
What warranty do you provide? We offer a 1 year warranty on these New Surplus units, covering defects in materials and workmanship under normal operating conditions.
Do you support cross-site sharing or consignment for multiple plants? Yes. We can consolidate inventory across locations and discuss vendor-managed or consignment arrangements for high-value slow-moving spares to optimize your overall carrying costs.
