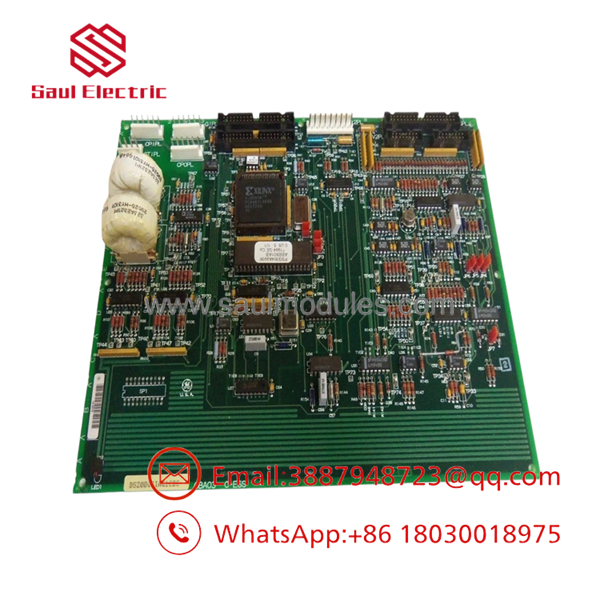

GE DS200GSIAG1CEC Mark V Common DC Bus Board

Description

Product Introduction & Engineering Value

The DS200GSIAG1CEC belongs to the drive-control portion of the legacy GE Mark V Speedtronic platform. Its function is associated with common DC-bus regeneration, so it should be treated as drive/power-control hardware rather than a conventional turbine I/O card.

The final configuration characters are important. The G1CEC version is documented separately from other DS200GSIAG1 configurations. GE’s Mark V catalog contains numerous GSIA variants, making full part-number matching essential during replacement.

Technical Specifications

The documented board configuration includes three 40-pin connectors, two 16-pin connectors, one 8-pin connector, six jumpers, and multiple test points.

The part-number breakdown also identifies the GSIA functional acronym, normal PCB coating, Group 1 configuration, and the C/E/C revision sequence.

Specification caution: Public documentation does not provide sufficient authoritative information to state exact DC-bus voltage, regenerative current, switching frequency, thermal limits, or other power-stage ratings for the DS200GSIAG1CEC. Those values should be taken from the applicable GE system documentation rather than inferred from the part number.

Field Application & the “Trench” Experience

A Mark V drive begins generating a regeneration-related fault during a controlled deceleration. The motor and mechanical load check out, but the DC-bus behavior does not match the expected operating sequence.

The maintenance team first checks the surrounding power circuit, cabling, and drive diagnostics. Only then do they pull the DS200GSIAG1CEC. Before installing the spare, they photograph all six jumper positions and compare every connector with the original board.

That last check is not paperwork. It is configuration control. A visually similar GSIA board can have a different revision or application, and installing it without verification can introduce another fault into an already unstable drive.

Specific application scenarios:

• GE Mark V common DC-bus drive systems
• Regenerative braking during drive deceleration
• Legacy turbine auxiliary-drive maintenance
• Mark V drive cabinet refurbishment
• Obsolescence replacement for discontinued GSIA boards

DS200GSIAG1CEC

Transparency SOP: QA & Testing

For DS200GSIAG1CEC, a meaningful inspection should proceed in this order:

1. Part-number confirmation
Verify the complete DS200GSIAG1CEC marking on the actual PCB.

2. Revision verification
Confirm the C/E/C configuration and compare it with the customer’s installed board.

3. Physical inspection
Inspect PCB traces, solder joints, capacitors, resistors, integrated circuits, connectors, test points, and signs of thermal stress.

4. Jumper mapping
Record all six jumper positions before removal or installation.

5. Connector inspection
Check the three 40-pin connectors, two 16-pin connectors, and 8-pin connector for bent contacts, oxidation, cracked housings, and poor mechanical retention.

6. Functional testing
Use an appropriate Mark V drive test procedure to verify the board’s regenerative interface and control functions. A continuity test alone is not adequate.

7. Final QA record
Document actual-unit photographs, revision, jumper configuration, test results, material condition, and warranty.

For New Surplus, confirm that the actual PCB has never been installed or energized. For Refurbished, request the repair scope and functional test report.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not substitute by the GSIA prefix alone.
GE lists many GSIA boards, including DS200GSIAG1B, DS200GSIAG1C, DS200GSIAG1CDC, DS200GSIAG1CEC, and DS200GSIAG1CFD. They are separate catalog configurations.

⚠️ Trap #2 — Record the jumper configuration.
The has six jumpers. Their positions should be documented before removing the original board.

⚠️ Trap #3 — Do not diagnose the board from a regeneration fault alone.
A DC-bus or regeneration alarm can originate in surrounding power electronics, wiring, load conditions, or another drive component. The board should be condemned only after the complete fault path has been checked.

PRO TIP: When sourcing a replacement, request a photograph showing the entire PCB and its part-number label, not just a generic DS200GSIAG1 product image.

Dynamic FAQ

Q: What is the GE DS200GSIAG1CEC?
A: It is a GE Mark V Common DC Bus Regenerative Board, with the functional acronym GSIA.

Q: What is the difference between DS200GSIAG1CEC and DS200GSIAG1B?
A: They are different GSIA configurations. The carries the C/E/C revision sequence and should not be treated as automatically interchangeable with the G1B version.

Q: How many connectors are on the DS200GSIAG1CEC?
A: The documented configuration has three 40-pin connectors, two 16-pin connectors, and one 8-pin connector.

Q: Does the board have jumpers and test points?
A: Yes. The published technical description identifies six jumpers and multiple test points.

Q: How should New Surplus authenticity be verified?
A: Request actual-unit photographs, the complete identification, confirmation that it has never been installed or energized, and any available factory packaging or traceability information.

Q: What should I request for a Refurbished unit and warranty?
A: Ask for the refurbishment scope, connector and jumper inspection, functional test procedure/results, actual-unit photographs, serial traceability, and written warranty/DOA terms. Do not accept a generic “tested OK” statement for a critical Mark V regenerative board.
