GE DS200IAXSG1ABB IGBT Snubber Interface Board

Description

3. Product Introduction

The GE DS200IAXSG1ABB functions as an IGBT Snubber Board (IAXS) within GE Innovation Series drives, Speedtronic Mark V turbine control auxiliary drives, and heavy-duty industrial AC/DC drive cabinets. Positioned directly adjacent to the power phase assemblies, the IAXS board dampens dangerous di/dt and dv/dt voltage spikes created during high-frequency IGBT switching.

Featuring heavy-duty bleeder/damping resistor arrays and direct mounting terminals for snubber capacitors, the DS200IAXSG1ABB limits voltage overshoot across power switching devices. By clamping inductive voltage spikes, it prevents thermal breakdown of main inverter IGBTs and stabilizes phase output currents under heavy load shifts.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During rapid acceleration under heavy mechanical load, a 500HP Innovation Series motor drive trips repeatedly on an IGBT over-voltage fault (VCE desaturation alarm). Field diagnostics reveal charred bleeder resistors on the phase-A snubber board due to thermal breakdown. Maintenance personnel execute full LOTO procedures, discharge the main DC bus, and install a bench-tested DS200IAXSG1ABB module. After torquing the terminal connection studs to spec and restoring bus power, the drive accelerates smoothly with voltage transients clamped well below trip thresholds.

• AC/DC Drive Inverter Bridges – Voltage Spike Dampening – Clamps turn-off inductive voltage spikes across high-power IGBT switches.
• Turbine Auxiliary Drives – Power Conditioning – Protects auxiliary pump and fan drive power modules in Speedtronic Mark V enclosures.
• Drive Overhaul & Maintenance – Power Module Refresh – Replaces thermally degraded snubber cards during scheduled drive overhauls.

6. Transparency SOP: Quality Assurance & Testing

1. Visual & Thermal Audit: High-magnification check for solder cracking, trace lifting, and thermal discoloration on high-power resistor networks.
2. Resistor & Capacitor Impedance Test: Ohmic verification of all bleeder/dampening resistors against factory tolerances to detect drift or open circuits.
3. High-Voltage Isolation Verification: Dielectric withstand testing between power bus tracks and grounding pads to ensure zero trace breakdown under high voltage.
4. Mechanical Fastener Check: Inspecting heavy-current mounting holes and screw terminals for thread integrity and contact surface flatness.
5. Anti-Static ESD Packaging: Encapsulated in heavy-duty ESD static-shielding bags with fresh desiccant packages prior to protective foam packaging.

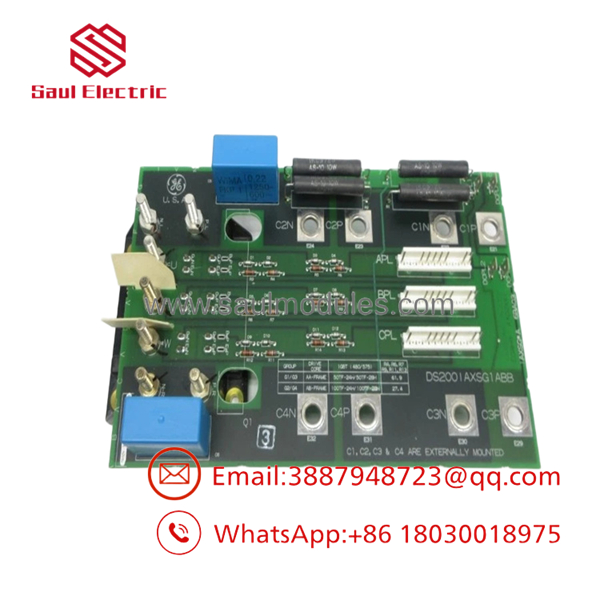

DS200IAXSG1ABB

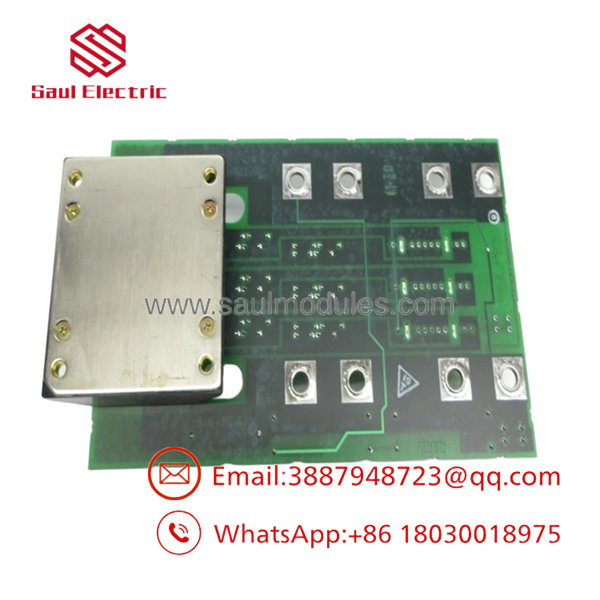

DS200IAXSG1ABB

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ VERIFY DC BUS IS FULLY DISCHARGED: The IAXS card connects directly to high-voltage DC bus bars. Always measure DC bus voltage with a calibrated meter and wait for discharge lamps to extinguish completely before handling.
• ❗ TORQUE MOUNTING SCREWS TO SPEC: Loose mounting hardware on high-current snubber terminals causes high contact resistance, arcing, and localized thermal destruction of both the board and the IGBT module.
• ⚠️ CHECK ASSOCIATED IGBTs BEFORE POWER-UP: A blown snubber board is often caused by a failing or shorted IGBT module. Always test phase IGBT junctions with a multimeter before installing a new IAXS card.
• ❗ CLEAN CONTACT SURFACES: Remove all oxidation and old thermal paste from the bus mounting points prior to securing the replacement card to ensure maximum electrical contact.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the DS200IAXSG1ABB board?

A: It is an IGBT Snubber Board (IAXS) designed to absorb voltage spikes and high-frequency electrical noise generated during high-speed IGBT power switching.

Q: Is the DS200IAXSG1ABB backward-compatible with earlier revision DS200IAXSG1A boards?

A: Yes. Revisions like G1ABB represent cumulative design revisions and updated component tolerances. It serves as a direct drop-in replacement for earlier G1A or G1ABA variants.

Q: Does replacing this snubber card require software calibration or parameter setup?

A: No. The DS200IAXSG1ABB is a hardware protection board consisting of passive resistor and capacitor circuits; no software setup or flashing is required.

Q: What warranty coverage comes with this module?

A: Every unit is backed by a full 12-month replacement warranty covering component resistance tolerance, trace continuity, and insulation integrity.
