GE DS200IMCPG1BCA Motor Control Board Mark V

Description

Product Introduction & Engineering Value

The GE DS200IMCPG1BCA is an IMCP-series printed circuit board used within GE’s legacy Mark V control architecture. The DS200 family contains numerous application-specific boards, so the full part number is the practical starting point for replacement sourcing.

For an engineer maintaining an installed Mark V system, the objective is usually straightforward: replace the failed board without introducing an undocumented hardware change. That means comparing the complete board number, revision, connectors, configuration hardware, and cabinet documentation before installation.

Technical Specifications

Technical caution: Exact electrical ratings, terminal assignments, I/O configuration, connector pinouts, and board-specific operating parameters should be confirmed from the applicable GE Mark V documentation. Public information should not be used to infer undocumented specifications from the DS200IMCP designation.

Field Application & the “Trench” Experience

With Mark V hardware, the board that caused the alarm is not always the board that caused the problem.

Picture a drive-control cabinet during a scheduled outage. The maintenance team identifies DS200IMCPG1BCA as the suspect board. A visually similar DS200 spare is sitting in the storeroom. Instead of installing it immediately, the technician compares the full identification, connector layout, configuration hardware, and cabinet drawings.

The spare turns out to be a different configuration.

That small verification prevents a second fault during commissioning. The correct IMCP board is installed, associated wiring is checked, and the drive is returned to service under controlled conditions.

Niche application scenarios

• GE Mark V drive-control cabinets: replacement of an IMCP-series PCB in installed legacy equipment.
• Industrial motor-control maintenance: retaining existing Mark V hardware during planned outages.
• Legacy drive-system life extension: replacing individual circuit boards instead of undertaking an immediate complete controls migration.

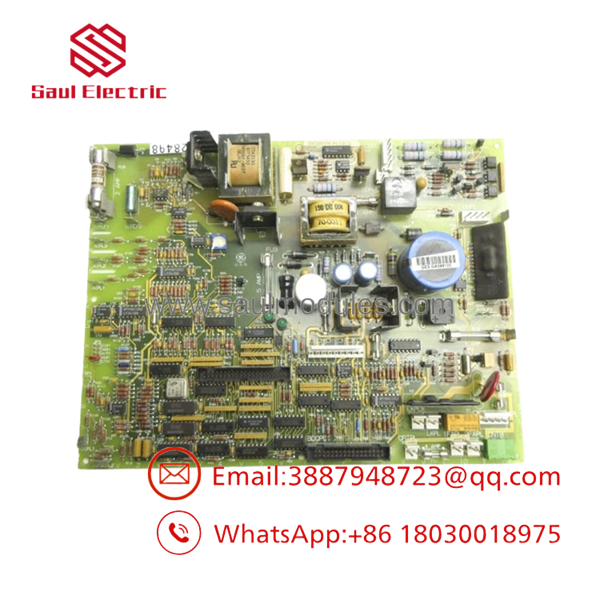

DS200IMCPG1BCA

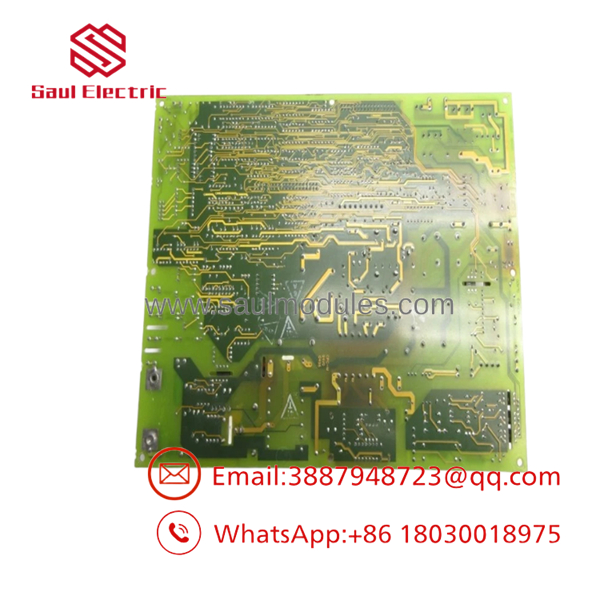

DS200IMCPG1BCA

Transparency SOP: QA & Testing

A useful QA procedure for the DS200IMCPG1BCA should include:

1. Identity verification — Confirm DS200IMCPG1BCA, revision markings, and available serial/traceability information.
2. Physical inspection — Examine components, PCB traces, solder joints, connectors, mounting points, and signs of overheating or contamination.
3. Configuration check — Record jumpers, switches, and other configurable hardware where applicable.
4. Electrical screening — Check for shorts, abnormal resistance, damaged components, and obvious electrical stress.
5. Functional testing — Where a compatible Mark V test setup exists, verify relevant board functions under controlled conditions.
6. Documentation — Record condition, test results, traceability, and warranty.

For New Surplus units, confirm whether the actual board has ever been installed or modified. A warehouse label alone is not enough to establish unused condition.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t procure by family name alone.
“DS200 IMCP” is insufficient. Specify DS200IMCPG1BCA and compare the revision information.

⚠️ Trap #2 — Watch the configuration hardware.
Jumpers and switches can be part of the board’s application-specific setup. Document their positions before removing the original.

PRO TIP: Photograph the original PCB from both sides when practical. Capture the part-number label, connectors, jumpers, switches, and any field modifications.

⚠️ Trap #3 — Don’t assume a successful power-up proves the repair.
The board may power normally while the associated drive/control circuit still has a feedback, interface, or configuration problem. Perform the appropriate functional checks.

Dynamic FAQ

What is the GE DS200IMCPG1BCA?

The is a GE DS200-series IMCP printed circuit board associated with legacy Mark V control and drive equipment.

What system is the DS200IMCPG1BCA used in?

It is associated with the GE Mark V generation of industrial control equipment. Exact host-system compatibility should be confirmed from the installed cabinet documentation.

Can another DS200IMCP board replace it?

Not automatically. Match the complete part number, revision, connector configuration, electrical characteristics, and application requirements.

What information should I provide when requesting a replacement?

Provide the complete part number, photographs of the actual board, revision markings, cabinet location, and the associated GE equipment model if available.

How should a New Surplus unit be verified?

Request photographs of the actual inventory item and confirmation of its history. Ask specifically whether it has been installed, repaired, modified, or electrically tested.

What warranty terms should I confirm?

Confirm warranty duration, DOA coverage, return conditions, and available test documentation. The supplier should clearly state whether the board is New Surplus, Refurbished, or Used.
