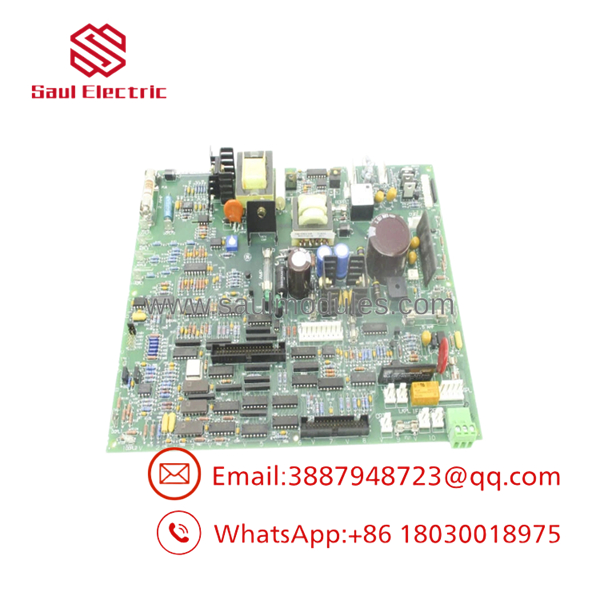

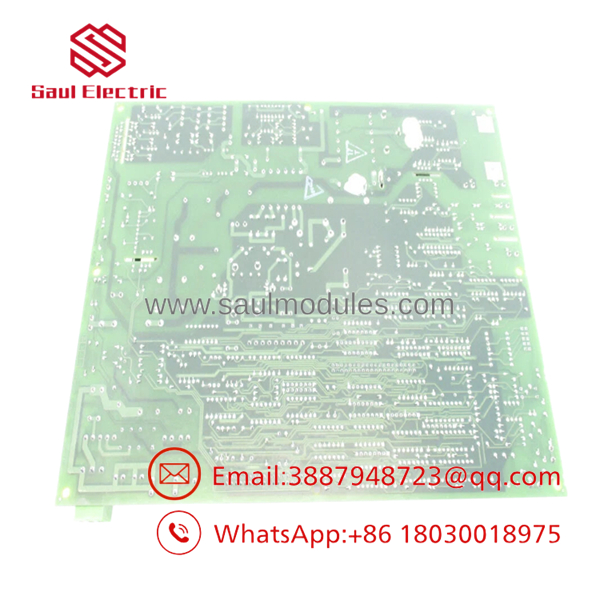

GE DS200IMCPG1CGC IGBT Power Supply Interface Board

Description

Product Introduction & Engineering Value

The DS200IMCPG1CGC is part of the power-interface hardware used in GE’s legacy Mark V turbine-control and drive architecture. Its job is tied to supplying and interfacing power for IGBT-related drive electronics, so it should not be treated as an ordinary control I/O card.

There is an important procurement wrinkle here: the DS200IMCPG1 family contains many configurations, including G1CBA, G1CCB, G1CDB, G1CEB, G1CFB, and G1CGC. Match the complete suffix. A generic “DS200IMCPG1C” listing is not enough to establish that the physical board is the required G1CGC version.

Technical Specifications

The three-part revision identification is particularly useful when checking a physical board: C functional revision, G secondary functional revision, and C artwork revision.

Electrical-data caution

Some secondary-market sources publish detailed power ratings for the DS200IMCPG1C/G1CGC family, including a claimed 140 W total output and multiple low-voltage rails. However, I would not treat those figures as authoritative for the exact G1CGC configuration without the applicable GE documentation.

Likewise, one seller describes the unit with a 100–220 VAC input, but that information conflicts with the broader descriptions of this Mark V drive hardware and is not sufficiently authoritative to publish as a guaranteed specification.

Field Application & the “Trench” Experience

A Mark V drive cabinet develops an intermittent IGBT-related fault after several hours of operation. The maintenance team initially suspects the power semiconductor stage. Before replacing expensive drive components, however, they check the control-side power supply and interface circuitry.

The technician identifies the installed board as DS200IMCPG1CGC, traces its cable connection to the 1PL interface on the DS200SDCC, and compares the replacement board’s revision markings before installation. The spare looks almost identical to another IMCP board in the storeroom. It is rejected because the complete configuration does not match.

That is the kind of substitution error that causes trouble during an outage. With legacy Mark V hardware, the suffix is part of the engineering identification—not decoration.

Specific application scenarios:

• GE Mark V IGBT drive power-supply maintenance
• Turbine auxiliary-drive cabinet refurbishment
• IGBT power-conversion system troubleshooting
• DS200SDCC-connected drive electronics
• Legacy Mark V spare-parts replacement

Transparency SOP: QA & Testing

For DS200IMCPG1CGC, I would use an assembly-focused inspection process:

1. Identity check — Verify the complete DS200IMCPG1CGC marking.
2. Revision check — Confirm C/G/C revision information.
3. Visual inspection — Examine capacitors, transformers, switching components, connectors, solder joints, PCB traces, and signs of overheating.
4. Interface inspection — Check the cable/interface connection associated with the DS200SDCC 1PL connection.
5. Power-stage test — Use an appropriate Mark V test fixture or documented GE procedure to verify applicable power outputs and protection behavior.
6. Load testing — Where the correct test specifications are available, verify output behavior under representative load conditions.
7. Final QA — Record actual-unit photographs, revision markings, test results, condition, and warranty status.

For New Surplus, the supplier should confirm that the actual board has never been installed or energized.

For Refurbished, ask for the repair scope and electrical test report. “Powers on” is not a sufficient test description for a Mark V IGBT power-supply board.

DS200IMCPG1CGC

DS200IMCPG1CGC

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t buy by “DS200IMCPG1C” alone.
The Mark V catalog contains multiple G1C configurations. The G1CGC suffix identifies a specific hardware/revision combination.

⚠️ Trap #2 — Don’t confuse the IMCP with the SDCC.
The IMCP is a power-supply/interface board; the DS200SDCC is the Drive Control Board. The IMCP connects to the SDCC through the documented 1PL interface.

⚠️ Trap #3 — Verify the actual board, not the catalog photo.
Several secondary-market listings use generic photographs or shortened descriptions. One current listing, for example, calls the item simply a “circuit board,” while another identifies it as an IGBT power-supply board.

PRO TIP: When requesting a quote, specify DS200IMCPG1CGC — C/G/C revision configuration and require a photograph of the actual PCB label. That removes considerable ambiguity.

Dynamic FAQ

Q: What is the GE DS200IMCPG1CGC?
A: It is a GE Mark V IMCP IGBT Power Supply Board / Power Supply Interface Board used in the turbine-drive architecture.

Q: What does IMCP stand for in this application?
A: GE-board references identify IMCP as the functional acronym associated with the IGBT power-supply board.

Q: What board does the DS200IMCPG1CGC connect to?
A: The documented hardware description states that it connects by cable to the 1PL connector on the DS200SDCC Drive Control Board.

Q: Is DS200IMCPG1CGC interchangeable with DS200IMCPG1CEB or G1CFB?
A: Do not assume so. These are separately identified configurations within the IMCP family. Verify the complete part number, revision, cabinet application, and applicable GE documentation before substitution.

Q: How should New Surplus authenticity be verified?
A: Request actual-unit photographs showing the complete part number and revision markings, confirmation that the board has never been installed or energized, and any available factory packaging or traceability information. One current supplier advertises G1CGC as new with original packaging, but that is a supplier claim and should be independently verified.

Q: What should I request for Refurbished stock and warranty?
A: Request the refurbishment scope, power-output testing, inspection of capacitors and switching components, actual-unit photographs, serial/part-number traceability, and written warranty/DOA terms. Current secondary-market inventory includes both used/tested and refurbished/remanufactured examples, so the material condition should be stated explicitly on the quotation.
