Description
Product Introduction & Engineering Value
High-speed IGBT switching in dynamic braking networks creates steep voltage transients (dV/dt) capable of punching through power semiconductor insulation. The GE DS200ITXDG1ABA1 dynamic braking snubber board suppresses these localized voltage spikes, maintaining rail bus stability during rapid deceleration cycles.
Positioned in parallel with power switching devices, this board limits high-frequency noise and switching transients before they reach delicate control logic. It provides critical component margin in harsh industrial drive enclosures without introducing active control overhead.
Technical Specifications
- Operating Voltage Rating: 575 VAC max continuous bus voltage
- Peak Current Rating: 375 A transient capability
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity Tolerance: 5% to 95% non-condensing relative humidity
- PCB Substrate: High-density flame-retardant FR-4 glass epoxy
- Dimensions: 8.0 x 6.0 x 1.75 inches (203.2 x 152.4 x 44.5 mm)
- Weight: 1.76 lbs (0.8 kg)
- Mounting Style: Standard standoff screw mounting with chassis grounding points
- On-Board Diagnostics: Dedicated test points for voltage drop and bleed-resistor continuity
Field Application & The “Trench” Experience
The Trench Story: During a scheduled ramp-down on a 45 MW gas turbine generator set, the drive tripped on a DC bus overvoltage condition. Visual inspection of the dynamic braking cabinet showed heavily discolored film capacitors on the existing ITXD board, caused by repeated thermal stress and harmonic heating. Swapping in a fresh DS200ITXDG1ABA1 board restored clamping response, suppressed the switching ringing, and allowed the plant to resume normal operation before missing its power delivery window.
Niche Application Scenarios
- Gas Turbine Generator Black-Start Braking: Manages deceleration energy during emergency shutdowns on heavy-duty frame turbines.
- Marine Thruster Inverter Drives: Absorbs dynamic load dumps during fast reversing maneuvers on variable-frequency propulsion drives.
- Compressor Drive Deceleration: Prevents DC bus overvoltage trips in continuous gas processing plants when gas flow changes abruptly.
Transparency SOP: QA & Testing
- Visual & Structural Inspection: Microscopic inspection of solder joint integrity, PCB traces, bleed resistors, and capacitor cans for signs of bulging or thermal fatigue.
- Component Level Testing: High-potential (Hi-Pot) insulation resistance testing across power traces to verify dielectric breakdown resistance.
- Resistor & Capacitor Tolerance Bench Check: Verification that snubber resistors and film capacitors remain within ±2% of nominal manufacturing specs.
- Active Bus Transient Simulation: Powering the module under a simulated high-voltage load bank to record clamping efficiency and waveform attenuation using a high-bandwidth digital oscilloscope.
- Final Cleaning & ESD Packaging: Ultrasonic cleaning of contact pins followed by heat-sealed anti-static shielding before inventory storage.

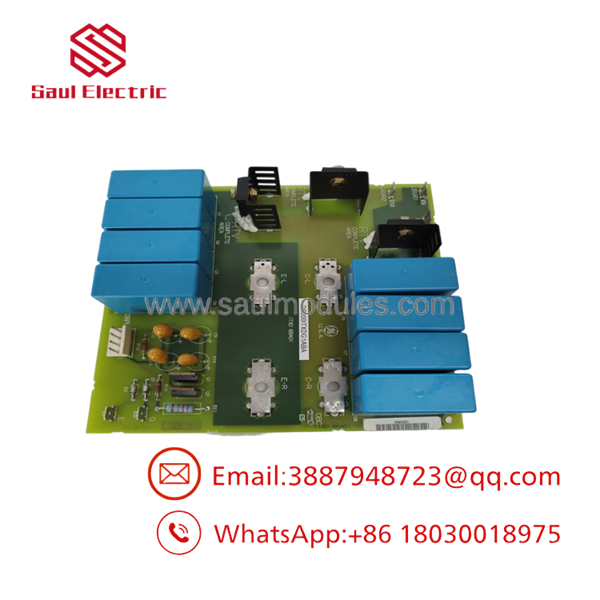

- DS200ITXDG1ABA1

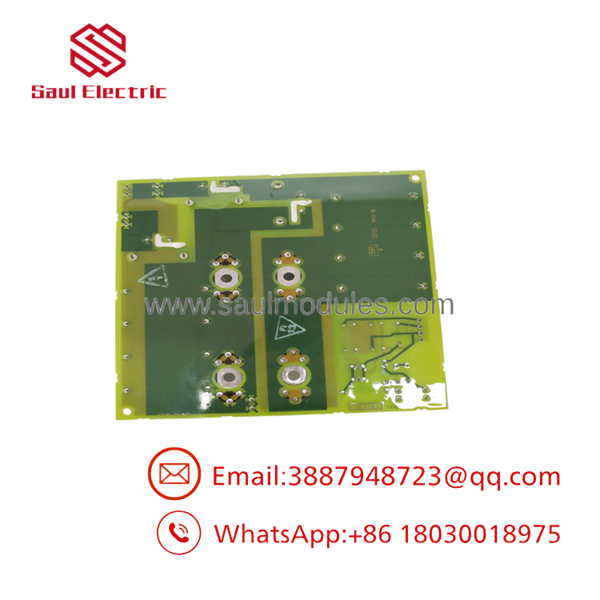

- DS200ITXDG1ABA1
The Veteran’s Tech Trap Guide
- ⚠️ Capacitor Bleed Time Hazard: The snubber board stores residual DC energy. Always wait at least 15 minutes after main breaker lockout, and verify zero voltage across test points with a calibrated multimeter before placing hands or tools near the board.
- PRO TIP: Check Mounting Standoff Grounding: The DS200ITXDG1ABA1 relies on secure mechanical fastening to the chassis ground via conductive mounting standoffs. Loose screws create high-impedance ground paths, forcing voltage spikes into signal wires and causing erratic communication errors on adjacent Mark V boards.
- ⚠️ Re-Verify Bus Capacitors During Board Failure: If an ITXD board suffers a catastrophic flashover, do not just install a replacement board and energize. Inspect the main DC bus capacitor bank for open vents or degraded ESR; a failing bus capacitor is often the true root cause that overworks the snubber circuit.
Dynamic FAQ
Q: Is the DS200ITXDG1ABA1 backward compatible with older revision boards in the DS200ITXD series?
A: Yes, the A1 designation indicates the artwork and component revision, but the mechanical layout and electrical interface maintain backward compatibility with previous ITXD revisions within Mark V drive systems.
Q: Does this board require firmware programming or jumper configuration prior to installation?
A: No. The is a passive/hardware-level snubber board. It does not contain an onboard microprocessor or EEPROM, meaning no software flashing or DIP switch setup is required.
Q: How do I test if an existing board is degraded without removing it from the panel?
A: With the main power locked out and bus discharged, measure resistance across the designated onboard test points. Out-of-spec resistance indicates a blown snubber resistor or ruptured internal trace.
Q: What condition is your “New Surplus” stock in, and how is it stored?
A: Our New Surplus units are original, uncommissioned GE OEM stock preserved in climate-controlled, ESD-shielded packaging with fresh desiccant packs to prevent moisture ingress.
Q: What warranty coverage applies to this module?
A: Every unit carries a comprehensive 12-month full-replacement warranty covering both electronic components and operational performance under rated operating conditions.
