GE DS200LDCCH1ARA LAN Drive Control Board

Description

Product Introduction & Engineering Value

The GE DS200LDCCH1ARA is a LAN Drive Control Card associated with GE’s Mark V control platform. The board combines drive-control circuitry with communication and processor-related functions, making exact identification important when maintaining an existing Mark V installation.

For a plant running legacy GE drive equipment, the practical advantage is maintaining the existing architecture rather than replacing an entire control assembly because of one failed PCB. Before installation, technicians should match the complete DS200LDCCH1ARA number and board revision, then verify firmware, connectors, jumpers, and application-specific configuration.

Technical Specifications

Technical caution: Public documentation for legacy DS200 boards is often fragmented between GE manuals, field documentation, and aftermarket inventories. Do not infer exact I/O counts, terminal assignments, firmware compatibility, or electrical limits from the DS200 family name alone. Those details should be checked against the specific Mark V application documentation.

Field Application & the “Trench” Experience

A common Mark V maintenance scenario starts with an intermittent drive fault that refuses to stay cleared. The drive itself may test normally, while communication or control behavior points back toward the LAN Drive Control Card.

Imagine a planned shutdown where technicians identify DS200LDCCH1ARA as the installed card. The replacement arrives, but its configuration is not documented before removal. The technician swaps the PCB and immediately encounters communication faults. The board is probably not defective. The real problem is that the original configuration—jumpers, board revision, firmware, or application-specific settings—was not documented.

That is the trap with legacy control hardware. A physically compatible board is not automatically a configured replacement.

Niche application scenarios

• GE Mark V drive cabinet communication: maintaining communication between drive-control hardware and the broader Mark V control architecture.
• Legacy motor-drive maintenance: replacing a failed control PCB during a scheduled plant outage.
• Critical rotating-equipment drive systems: keeping a tested spare available when the original Mark V hardware remains in service.

DS200LDCCH1ARA

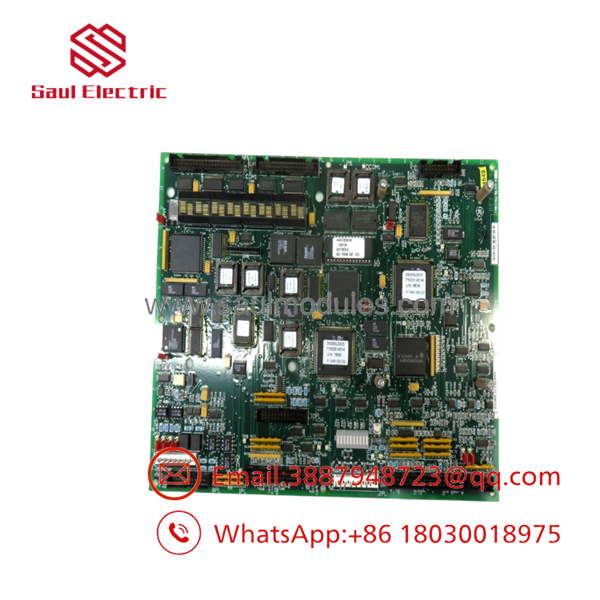

DS200LDCCH1ARA

Transparency SOP: QA & Testing

For New Surplus and Refurbished DS200LDCCH1ARA inventory, a sensible acceptance process should include:

• Part-number verification: Confirm DS200LDCCH1ARA rather than accepting a generic DS200LDCCH board.
• Physical inspection: Examine connectors, PCB traces, components, mounting points, and signs of corrosion or previous rework.
• Configuration inspection: Record jumper and switch positions where applicable.
• Electrical checks: Screen for shorts, damaged components, and obvious power-path abnormalities.
• Functional test: Test on compatible Mark V equipment or an appropriate board-level test setup whenever available.
• Traceability: Record serial information, board condition, test results, and warranty coverage.

A seller claiming the board is New Surplus should also be able to explain whether the unit has ever been installed, repaired, or electrically tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not treat every DS200LDCCH variant as interchangeable.
The complete part number matters. Differences in suffixes can represent configuration, revision, or application differences. Match exactly whenever possible.

⚠️ Trap #2 — Document the original board before pulling it.
Photograph connectors, jumpers, switches, labels, and cable positions. Legacy Mark V troubleshooting becomes much harder when the original configuration is lost during a rushed replacement.

PRO TIP: Record the original board’s revision and firmware information before installation of the spare. If the replacement behaves differently, you need to determine whether the problem is hardware, configuration, or firmware—not simply assume the spare is bad.

⚠️ Trap #3 — Check the communication path after replacement.
A board can power up normally while the system still reports communication-related faults. Verify the complete communication path and associated control hardware rather than stopping at a basic power-on check.

Dynamic FAQ

What is the GE DS200LDCCH1ARA?

The is a GE Mark V LAN Drive Control Card used within legacy GE industrial drive/control equipment. It belongs to the DS200 family.

Is the DS200LDCCH1ARA a PLC CPU?

No. It should not be treated as a general-purpose PLC CPU. Its role is tied to the GE Mark V drive/control architecture, including drive-control and communication functions.

Can I replace a DS200LDCCH1ARA with another DS200LDCCH board?

Do not assume so. Compare the complete part number, revision, configuration, firmware, and application documentation before substitution. A visually similar DS200LDCCH board may not provide the required configuration.

What should I check before ordering?

Provide the seller with the complete part number , plus photographs of the existing board label and revision markings. For critical applications, also confirm condition, testing performed, warranty, and return terms.

What does “New Surplus” mean for this board?

It normally means older inventory that is being sold as unused surplus rather than newly manufactured production. However, definitions vary by supplier. Ask whether the actual unit has been installed, repaired, modified, or electrically tested.

Does the replacement include a warranty?

That depends on the supplier. Obtain the warranty period and return conditions before purchasing. For a critical Mark V spare, a written warranty and documented test status are more useful than a generic “tested” claim.
