GE DS200PCCAG6ACB Power Connect Board

Description

Product Introduction

The GE DS200PCCAG6ACB acts as a specialized Power Connect Board (PCCA) utilized across GE Speedtronic Mark V control systems and Innovation Series heavy industrial drives. It serves as the primary distribution hub for incoming control power, stepping down and routing critical AC/DC voltage rails directly to processing cards, drive control cores, and gate driver circuits.

Constructed to handle heavy power fluctuations, the PCCAG6ACB incorporates onboard transient surge suppression, heavy-duty filtering capacitors, and quick-acting protective fuses. This hardware layer insulates sensitive digital logic processor boards from raw grid transients and high-frequency inverter switching noise native to large motor drive environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a routine startup of a high-horsepower industrial drive, an upstream utility line spike blows the power regulation stage in the main control rack. The drive trips instantly on an auxiliary control power loss fault, bringing the entire production line to a grinding halt. Troubleshooting reveals open onboard fuses and a shorted varistor on the original PCCA board. Having a fully bench-tested DS200PCCAG6ACB on hand allows the maintenance team to swap the board immediately, restoring stable voltage rails to the control rack without waiting weeks for factory repair.

• Heavy AC/DC Drives – Main Control Rack Power Routing – Distributes regulated power to gate driver boards and motor control processors.
• Gas & Steam Turbines – Mark V Control Core Power Supply – Supplies clean, isolated DC voltage to critical logic racks and trip system buses.
• Metal & Paper Mills – Large System Drive Cabinets – Interfaces field power buses with central drive control electronics under harsh operating conditions.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V and Drive rigs.

1. Inbound Visual Inspection: Microscopic trace audit checking for thermal stress discoloration, blown MOV bodies, bulging electrolytic capacitors, or cracked connector housings.
2. Fuse & Isolation Checks: Resistance testing of all onboard protection fuses and point-to-point isolation checks across primary power rails to guarantee no short circuits.
3. Power Rail Bench Testing: Energizing high-voltage power paths on a test bench to verify correct step-down output voltages across all multi-pin power connectors.
4. Live Rack Handshake: Insertion into a live GE chassis to ensure seamless integration and power delivery to downstream controller cards.
5. Anti-Static Packaging: Sealed in thick anti-static ESD bags with fresh desiccant packages before custom foam encapsulation.

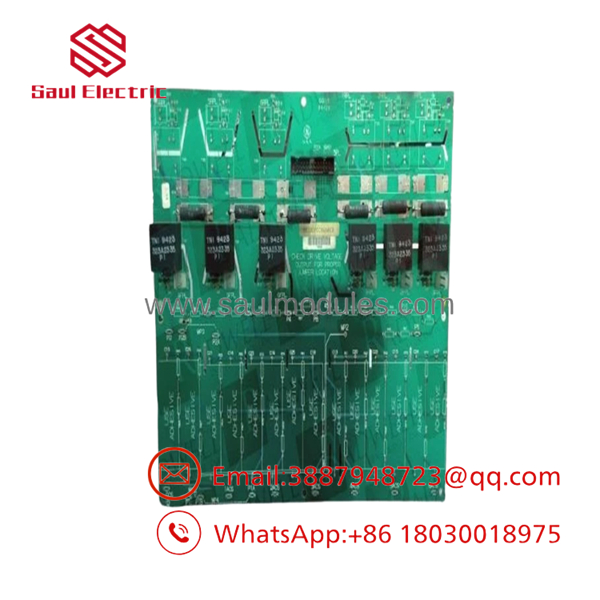

DS200PCCAG6ACB

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Fuse Ratings Before Powering Up: Take a close look at the onboard glass fuses on your original card versus the replacement. On-site field modifications sometimes change fuse amp ratings. Make sure the replacement board matches the precise fuse specs required by your cabinet drawing.
• ❗ Discharge Capacitors Fully: Power boards store high-voltage DC across large onboard capacitors even after cabinet power is turned off. Wait at least 10 minutes after de-energizing the cabinet and verify zero voltage with a multimeter before touching the board.
• ⚠️ Mind the Connector Polarization: High-current power plugs on the PCCA card must be keyed correctly. Never force a multi-pin power cable connector onto the board pins; forcing an inverted plug will send high voltage straight into low-voltage logic circuits.
• ❗ Track Jumper Pin Placements: To be honest, misconfigured power select jumpers are the #1 cause of false “Power Fail” alarms after a swap. Take a clear photograph of all shorting plugs on the original board and mirror them exactly on the replacement card before installation.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the “G6ACB” revision code signify?

A: G6 indicates the functional Group 6 revision designed for specific high-density drive power distributions, while ACB details the progressive hardware revision code reflecting artwork updates and component sourcing improvements.

Q: Can I replace a DS200PCCAG1 or G3 version with this G6 version?

A: Not always. Group numbers (G1, G3, G6) often reflect different connector layouts, component ratings, or input voltage handling. Always check your system schematics or match the exact model number (DS200PCCAG6ACB) to ensure pinout compatibility.

Q: Is the DS200PCCAG6ACB board hot-swappable?

A: Absolutely not. Attempting to pull or insert a main power distribution board while energized will cause arcing, blow onboard protective fuses, and likely damage attached downstream processor cards. Always isolate cabinet power first.

Q: Does this power card require any software configuration or flashing?

A: No. The DS200PCCAG6ACB is a pure hardware power and signal distribution board. It contains no microcontrollers or flash memory, requiring zero software downloads or programming upon installation.

Q: What warranty coverage do you provide with this item?

A: Every unit is backed by a full 12-month replacement warranty from the date of shipment, covering all onboard components, power regulation paths, and structural integrity.
