GE DS200RTBAG2A Relay Terminal Board Mark V

Description

Product Introduction

The GE DS200RTBAG2A is a dedicated relay terminal board engineered for General Electric Speedtronic Mark V turbine control racks. Mounted within the control cabinet, this card acts as the hardwired physical boundary between low-level 5V/24V control logic from the processor cores and high-power field devices, such as fuel trip solenoids, igniters, motor starters, and annunciator horns.

To be honest, the real value of the DS200RTBAG2A lies in its robust electrical isolation. By routing output control signals through physical, heavy-duty plug-in relays, it protects expensive upstream microprocessor boards from voltage spikes, inductive kickback, and accidental field wiring shorts. It remains a critical component for maintaining high system availability in harsh power plant environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In our field experience, 3 AM emergency calls rarely stem from complex software bugs—they usually come from a single blown relay coil or a welded contact point on a termination card. Imagine a combined-cycle unit attempting a peak-demand startup. The main gas control valve command fires, but the auxiliary fuel isolation solenoid fails to pull in. The turbine trips on ignition failure. You open the enclosure and trace the circuit to a scorched contact trace on an old output board caused by a failing solenoid coil draw.

• Heavy-Duty Gas Turbines – Frame 7E/7FA Control Racks – Drives trip solenoids, purge valves, and igniter transformer circuits.
• Steam Turbine Control Systems – Main Stop & Control Valve Actuation – Interlocks emergency trip signals directly with hydraulic solenoid valves.
• Offshore Power Modules – Balance of Plant (BOP) Interfacing – Isolates turbine cabinet logic from long, outdoor field cable runs prone to induced transients.

During a scheduled outage at an industrial cogeneration facility, a plant tech stripped the terminal barrier screws on an active DS200RTBA board while landing new field wiring. The stripped terminals left critical emergency isolation valves unpowered. We supplied a fully tested DS200RTBAG2A board from surplus inventory within 12 hours. The site team landed the cables, verified relay handshakes, and avoided an extended outage penalty.

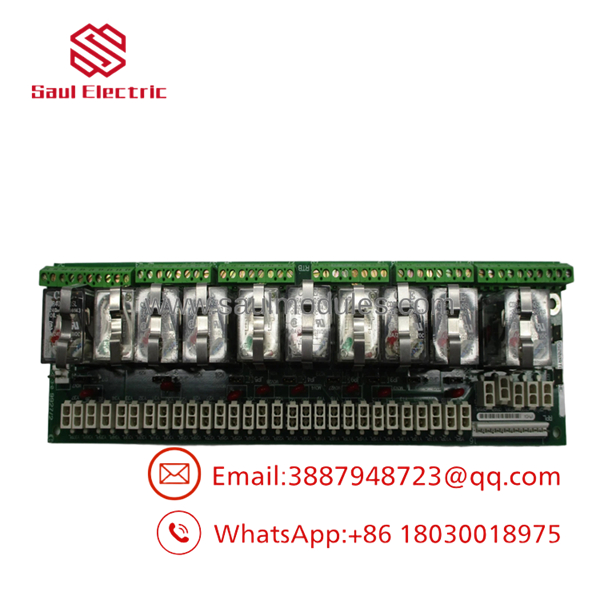

DS200RTBAG2A

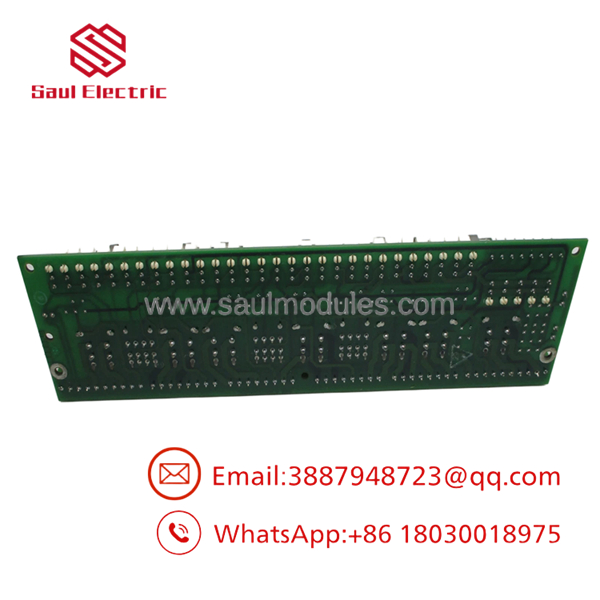

DS200RTBAG2A

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V racks.

1. Inbound Inspection: Physical check for scorched board traces, cracked relay sockets, stripped terminal screws, and PCB delamination.
2. Relay Contact Resistance Check: Micro-ohm meter testing across all relay contacts (Normally Open / Normally Closed) to verify low contact resistance.
3. Live Rig Testing: Installed on a Mark V test fixture to cycle every relay coil 50+ times under load, confirming zero contact chatter or latching failures.
4. Inductive Surge Resistance: High-voltage isolation check between field terminal strips and the backplane ribbon interface.
5. Final QC & Anti-Static Packaging: Sealed in static-shielding bags with fresh desiccant and custom foam casing.

The Veteran’s Tech Trap Guide

• ⚠️ Verify Jumpers Before Power-Up: The DS200RTBAG2A features hardware jumpers (such as JP options) for configuring relay power sources (internal rack power vs. external field supplies). Copy the exact jumper configuration from your old board before sliding the replacement into the rack.
• ❗ Never Swap Under Power: The Mark V backplane bus and ribbon headers on this card are NOT hot-swappable. Pulling ribbon connectors while the 24 VDC bus is alive can create voltage spikes that arc across adjacent pins, destroying driver transistors on upstream core boards.
• ⚠️ Check Suppression Diodes on Field Solenoids: If a relay contact on your previous board welded shut, verify the flyback diode or RC snubber across the field solenoid coil before installing the new DS200RTBAG2A. A shorted coil will instantly burn out the fresh relay contacts.
• ❗ Take A Photo of Field Cable Labeling: With 12 relays and double-deck terminal blocks, mixing up field wires is easy. Label every single wire conductor and take a clear photo before unscrewing the terminal leads. Trust me on this.

Frequently Asked Questions

• Q: Is the GE DS200RTBAG2A hot-swappable?
  • A: No. Pulling this board live will arc the connector pins and can trigger unexpected turbine trip conditions. Lock out the 24 VDC bus and power down the rack core before replacement.
• Q: Are the individual relays on the board replaceable?
  • A: Yes, the onboard electromechanical relays are socket-mounted. However, if a trace on the PCB has suffered an over-current vaporized track, replacing the entire DS200RTBAG2A assembly is the safest path forward.
• Q: What is the difference between revision G2A and earlier versions like G1A?
  • A: “G2A” indicates specific manufacturing artwork, component trace updates, and supplier revisions made during GE’s production run. While functionally similar, always verify hardware jumper layouts when cross-referencing revisions.
• Q: How do you know this surplus board hasn’t degraded in storage?
  • A: All units are stored in climate-controlled environments and undergo live bench-testing on our Mark V rack simulator—cycling all relay coils under electrical load—prior to shipment.
• Q: What warranty is provided with this module?
  • A: We provide a comprehensive 12-month replacement warranty on all New Surplus and Refurbished GE Mark V inventory.
• Q: Why is buying surplus often better than waiting for OEM factory rebuilds?
  • A: GE Speedtronic Mark V hardware is legacy equipment with extended OEM lead times. Surplus inventory provides immediate availability, eliminating costly plant downtime at a fraction of the cost.
