Description
Product Introduction & Engineering Value
The GE DS200SDCCG4A is an SDCC control board from the GE Mark V family. The SDCC board is a key electronic assembly in compatible Mark V installations, handling control processing and interfaces required by the surrounding system.
This is not a board to replace based on physical appearance alone. When dealing with a legacy Mark V cabinet, the complete DS200SDCCG4A identification, board revision, firmware, connected daughterboards, and system configuration should be checked before installation.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS200
Series: Mark V
Board Type: SDCC control board
Part Number: DS200SDCCG4A
Board Designation: SDCC
Revision: G4A
Primary Role: Control processing and system interface
Application: Compatible GE Mark V turbine and industrial control equipment
Installation: Mark V control cabinet / board rack
Replacement Approach: Exact part-number and configuration verification recommended
Maintenance Consideration: Firmware and board configuration should be checked before commissioning
Specification caution: Publicly available sources do not provide a sufficiently complete, authoritative electrical specification sheet for every DS200SDCCG4A configuration. Voltage ratings, processor details, connector pin assignments, firmware compatibility, and daughterboard options should be confirmed against the GE documentation for the specific host system.
Field Application & the “Trench” Experience
A maintenance engineer gets called to a turbine control cabinet after a controller-related fault appears during startup. The cabinet contains an older Mark V installation, and the suspect board is identified as DS200SDCCG4A.
The temptation is to pull the old SDCC and install the spare immediately. That is where experienced technicians slow down. They record the board revision, inspect any attached hardware, document configuration settings, and compare the spare with the failed assembly. Only after those checks do they proceed with installation and controlled testing.
With legacy control hardware, five minutes of documentation can save hours of troubleshooting.
Specific application scenarios
- Gas turbine startup control: SDCC replacement following processor or control-interface faults.
- Generator drive/control systems: Maintaining legacy GE control cabinets where SDCC hardware remains part of the installed architecture.
- Mark V outage maintenance: Pre-positioning a tested SDCC spare before a scheduled turbine inspection.

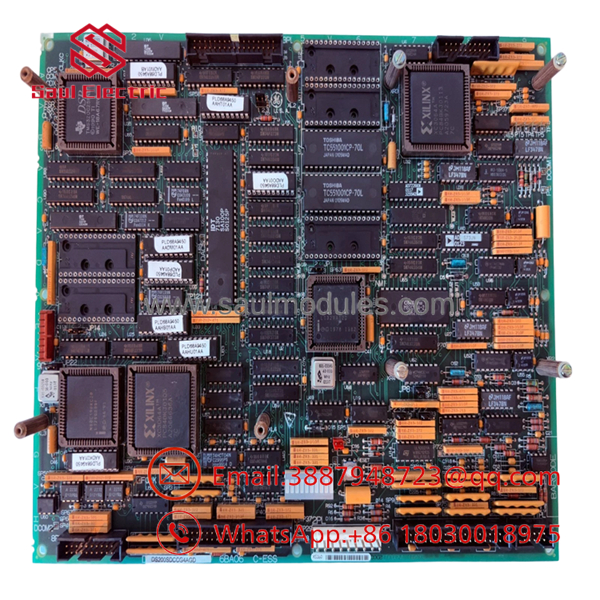

DS200SDCCG4A

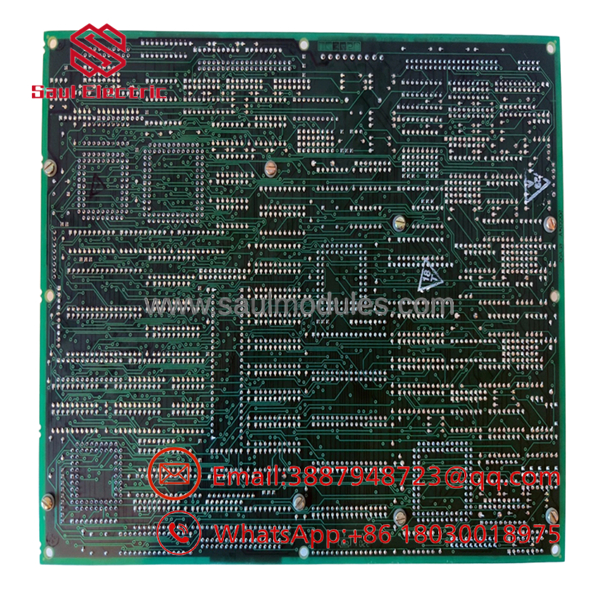

DS200SDCCG4A
Transparency SOP: QA & Testing
A credible New Surplus or refurbished DS200SDCCG4A should go through more than a visual inspection.
- Identity check: Confirm the full part number and revision.
- PCB inspection: Examine connectors, solder joints, components, edge contacts, and board surfaces.
- Configuration comparison: Compare jumpers, switches, daughterboards, and other configurable hardware with the removed unit where applicable.
- Power-up assessment: If a compatible test environment exists, verify board behavior under controlled power.
- Functional verification: Test applicable interfaces and diagnostics using an appropriate Mark V test setup.
- Packaging: Use ESD-safe packaging for storage and shipment.
For refurbished stock, request a description of what was actually replaced or repaired. “Inspected” is not the same thing as “functionally tested.”
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ignoring firmware compatibility
A replacement SDCC is not necessarily a plug-and-play solution simply because the board number looks right. Firmware and system configuration can affect whether a replacement behaves correctly in the existing installation.
PRO TIP: Record firmware information and configuration data from the original system before removing the failed board whenever the system condition permits.
⚠️ Trap #2 — Moving daughterboards without documenting their position
If the installed configuration contains additional boards or hardware attached to the SDCC, photograph and document the arrangement before disassembly. Do not assume that every accessory arrangement is identical.
⚠️ Trap #3 — Treating a successful power-up as a completed repair
The board powering on is only the first checkpoint. Verify controller diagnostics, communication, field signals, and the actual machine sequence before returning the equipment to service.
Dynamic FAQ
What is the GE ?
The is a GE SDCC control board used in compatible Mark V control equipment. It serves control-processing and interface functions within the system.
Is a Mark V board?
Yes. The DS200SDCC family is associated with GE’s Mark V control architecture and related industrial drive/control applications.
Can another DS200SDCC board replace ?
Not without verification. The exact board revision, firmware, configuration, daughterboards, and host-system requirements should be compared before approving a substitute.
What information should I provide when ordering this board?
Provide the complete number, photographs of the existing board, revision markings, host equipment information, and any available system or board configuration data. This is particularly important for legacy Mark V installations.
What does New Surplus mean for this GE board?
New Surplus generally means inventory represented as unused or excess stock rather than newly manufactured current-production GE hardware. Ask for photographs of the actual unit and confirmation of its storage and condition history.
Is a warranty available?
Warranty coverage depends on the supplier and stock condition. For a critical Mark V spare, confirm the warranty period, test coverage, return policy, and DOA terms before purchase.
