Description
Product Introduction & Engineering Value
The GE DS200SDCCG5A is an SDCC Drive Control Board used in GE Mark V drive and control systems. Unlike a simple terminal or I/O board, the SDCC is a central control element, handling processing and interfaces that can affect the behavior of the associated drive.
That makes replacement discipline important. The exact G5A configuration should be matched, and any application-specific jumpers, switches, firmware considerations, and connected boards should be documented before the original PCB is removed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS200SDCCG5A |
| Product Family | DS200 |
| Control Platform | Mark V |
| Board Family | DS200SDCC |
| Board Type | Drive Control Board |
| Configuration | G5A |
| Processor Architecture | Multiple microprocessors |
| Programmable Logic | Included |
| Memory / Interface Functions | Board-dependent control and communications circuitry |
| Primary Application | GE Mark V drive/control systems |
| Replacement Method | Exact part-number and revision verification |
Technical caution: Exact processor types, memory capacity, terminal assignments, communication interfaces, I/O configuration, and operating ratings should be verified against the applicable GE documentation for the specific DS200SDCCG5A revision. Do not transfer specifications from another SDCC variant without confirmation.
Field Application & the “Trench” Experience
The SDCC is one of those boards where replacing the hardware is only half the job.
A maintenance crew is troubleshooting a drive that has developed intermittent control faults. The failed board is identified as DS200SDCCG5A. A spare SDCC board is available, but the technician does not simply swap it and restart. They document the original board’s jumpers and switches, record connector assignments, verify the replacement designation, and review the drive’s configuration requirements.
After installation, the team checks the associated drive functions systematically.
That approach avoids a common Mark V problem: turning a hardware replacement into a configuration fault.
Niche application scenarios
- GE Mark V drive control: processing and coordinating control functions within compatible drive systems.
- Industrial motor-drive maintenance: replacing an aging SDCC board during scheduled maintenance.
- Legacy drive modernization planning: keeping an existing Mark V installation operational while migration is evaluated.

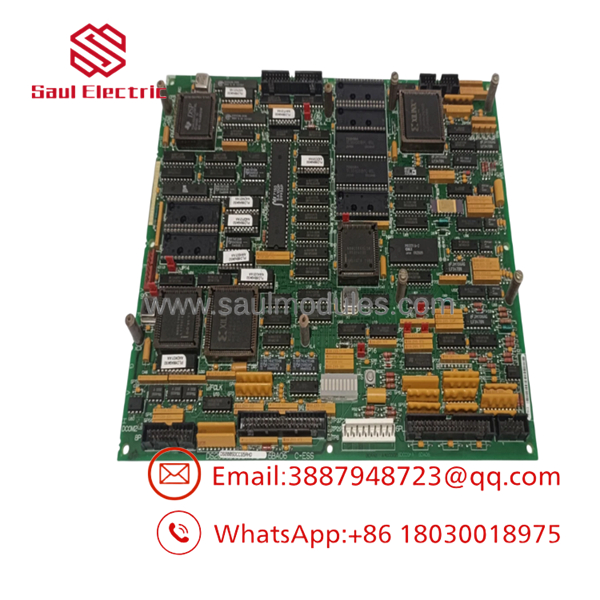

DS200SDCCG5A
Transparency SOP: QA & Testing
For the DS200SDCCG5A, a proper QA sequence should include:
- Part-number verification — Confirm
DS200SDCCG5A, board family, and revision markings. - Physical inspection — Examine processors, programmable devices, connectors, solder joints, PCB traces, and mounting hardware.
- Configuration inspection — Document jumper and switch positions before replacement.
- Electrical screening — Check for shorts, abnormal resistance, damaged components, and evidence of overheating.
- Functional testing — Where compatible Mark V test equipment is available, verify the board’s relevant processing and interface functions.
- System-level verification — After installation, check the associated drive/control functions under controlled conditions.
- QA documentation — Record test results, condition, traceability, and warranty.
For New Surplus stock, obtain confirmation that the actual board has not been previously installed or modified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — SDCC boards are configuration-sensitive.
Do not assume that another SDCC revision or configuration is a direct replacement simply because the PCB looks identical.
⚠️ Trap #2 — Document jumpers and switches before removal.
A replacement board can be electrically healthy and still behave incorrectly if its configuration does not match the original application.
PRO TIP: Photograph the original board’s configuration hardware and label every connector before removal. Save those photographs with the maintenance work order.
⚠️ Trap #3 — Firmware and configuration deserve attention.
For programmable control hardware, hardware compatibility alone does not guarantee system compatibility. Verify the applicable firmware/configuration requirements before commissioning.
Dynamic FAQ
What is the GE DS200SDCCG5A?
The is a GE SDCC Drive Control Board associated with Mark V drive and control systems.
What does SDCC stand for?
SDCC is GE’s designation for the Drive Control Card family used in the Mark V generation of drive/control equipment.
Is the DS200SDCCG5A a simple I/O board?
No. The SDCC is a control-oriented board containing processing and programmable circuitry, along with interfaces used by the associated drive system.
Can another DS200SDCC revision replace the G5A?
Do not assume so. Verify hardware revision, firmware/configuration requirements, connector arrangement, jumpers, switches, and the specific Mark V application.
What should be checked before installing a replacement?
Record the original board configuration, connector assignments, revision markings, and associated drive configuration. Inspect the replacement before installation and follow the applicable GE maintenance procedure.
How do I verify New Surplus authenticity and warranty?
Request photographs of the actual and confirmation of its condition and service history. Ask whether it has been installed, repaired, modified, or tested. Confirm written warranty, DOA, and return terms before purchasing.
