GE DS200SIOBH1ABA Mark V SC2000 VME Stand I/O Board

Description

Product Introduction

The GE DS200SIOBH1ABA is an SC2000 VME Stand I/O Board (SIOB) designed for the GE Speedtronic Mark V turbine control platform. Installed in the VME rack through the P1 connector, it provides additional field input and output capacity for gas, steam, and selected industrial turbine control systems.

In our field experience, this board rarely fails without warning. More often, intermittent I/O faults originate from incorrect jumper settings, loose ribbon cables, or configuration mismatches after maintenance. One thing to watch out for is replacement setup. The new board should duplicate every jumper and DIP switch position from the original before power is restored. That simple step prevents many startup issues.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s one that’s surprisingly common.

A gas turbine completes its startup sequence, but several auxiliary field signals never update in the HMI. Operators suspect failed transmitters. Instrument technicians replace sensors. Electricians megger field wiring. Hours later, someone discovers the replacement SIOB board was installed with factory-default jumper settings instead of matching the original configuration.

Typical applications include:

• Combined-Cycle Power Plants — Additional VME I/O capacity for turbine sequencing and auxiliary equipment.
• Steam Turbine Control — Processing field inputs from valves, limit switches, and instrumentation.
• Industrial Cogeneration — Expansion I/O for Speedtronic Mark V control cabinets.
• Pipeline Compressor Stations — Supporting turbine-driven compressor control systems.
• Petrochemical Facilities — Integrating process status signals into Mark V turbine control architecture.

Field Replacement Example

During a scheduled outage, a generating station replaced a failed DS200SIOBH1ABA after recurring intermittent I/O alarms. Before removing the original board, maintenance photographed every jumper and DIP switch position. After installing the replacement with identical hardware settings, technicians verified all field inputs and outputs through the Mark V diagnostics. The turbine returned to service without requiring software modifications.

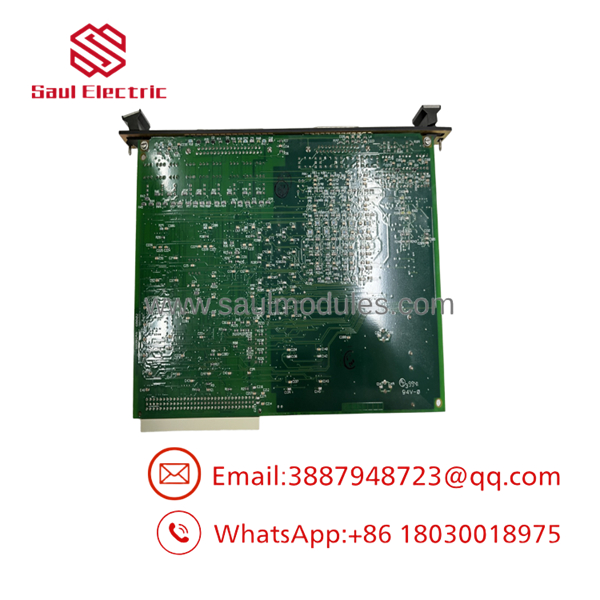

DS200SIOBH1ABA

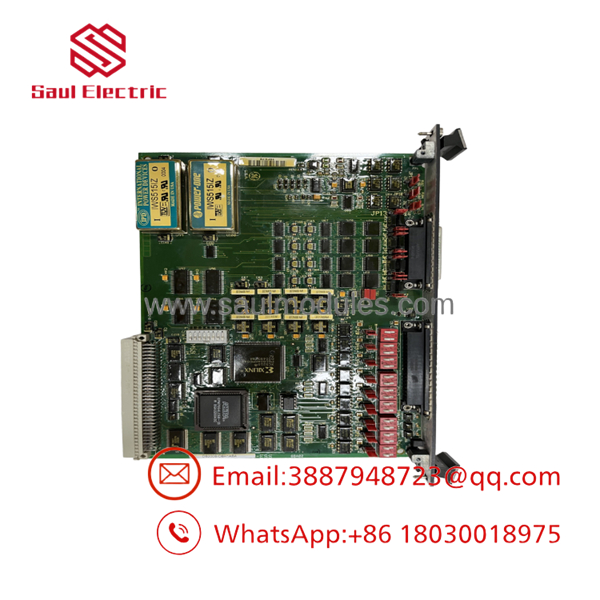

DS200SIOBH1ABA

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V hardware whenever practical.

• Inbound Inspection
  • Verify complete part number and revision suffix.
  • Inspect PCB for damaged traces, overheating, and prior repair.
  • Confirm connector condition and conformal coating integrity.
• Live Rack Testing
  • Install in a compatible Mark V VME rack.
  • Verify successful VME initialization.
  • Confirm diagnostic LED operation.
  • Verify board recognition by the controller.
• Electrical Parameter Checks
  • Verify VME communication.
  • Test connector continuity.
  • Confirm jumper functionality.
• Hardware Verification
  • Record hardware revision.
  • Document jumper and switch configuration.
  • Verify compatibility with customer requirements.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Full traceability documentation.

The Veteran’s Tech Trap Guide

⚠️ Copy every jumper before removing the old board.

The 20 jumpers determine hardware behavior. Don’t rely on memory. Take high-resolution photos before touching anything. Trust me. It saves a return trip to the turbine deck.

❗ Match all DIP switch settings.

The board includes three DIP switch blocks with eighteen switches. Factory defaults are not necessarily correct for your turbine. Duplicate the existing configuration exactly unless GE documentation instructs otherwise.

⚠️ Don’t ignore the diagnostic LED.

A healthy LED only confirms that the VME rack is accessing the board. It does not guarantee every I/O channel is functioning correctly. Continue with signal verification after startup.

❗ Verify the ribbon cable and terminal assemblies.

Many technicians replace the SIOB when the actual fault is a loose cable between the board and the TBA/TBB terminal assemblies. Inspect every connector before ordering replacement hardware.

Frequently Asked Questions (FAQ)

Q1. What is the primary function of the DS200SIOBH1ABA?

It is a SC2000 VME Stand I/O Board that expands and manages field input/output functions within the GE Speedtronic Mark V turbine control system.

Q2. Where is the board installed?

The board installs in the Mark V VME rack, connecting through the VME P1 connector and occupying one full VME slot.

Q3. Can I install a replacement using the factory jumper settings?

No. GE recommends matching the jumper and switch positions of the original board. Incorrect settings can change I/O behavior and create difficult-to-diagnose control problems.

Q4. Does replacing the board require software changes?

Normally, no. When the replacement board has the correct hardware revision and identical jumper configuration, software modifications are generally unnecessary. Functional I/O testing should still be completed before returning the turbine to service.

Q5. Is the still manufactured?

No. The Mark V platform has been discontinued. Most available units are sourced from certified industrial surplus inventories or professionally refurbished stock.

Q6. What typically causes failures?

Common issues include long-term thermal cycling, connector oxidation, vibration, ESD damage during maintenance, and incorrect field modifications. Complete board failures are less common than installation or configuration problems.

Q7. What warranty is typically provided?

Most industrial automation suppliers offer a 12-month warranty on functionally tested new surplus or professionally refurbished boards. Before commissioning, verify the complete part number, hardware revision, jumper configuration, DIP switch settings, and VME rack compatibility to ensure reliable operation.
