Description
Product Introduction & Engineering Value
The GE DS200TCDAH1BGD is a TCDA digital I/O board used within the GE Mark V control architecture. It sits at the interface between the control system and discrete field signals, making correct terminal identification and board configuration particularly important during replacement.
A field technician should verify more than the DS200TCDA prefix. The complete DS200TCDAH1BGD number, hardware revision, terminal configuration, system drawings, and installed board arrangement should be compared before the replacement is energized.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS200
Control Platform: Mark V
Board Designation: TCDA
Part Number: DS200TCDAH1BGD
Board Type: Digital I/O interface board
Functional Role: Discrete signal interface between field devices and Mark V control electronics
Hardware Revision: H1BGD
Typical Installation: GE Mark V control cabinet
Application: Turbine control and related industrial automation equipment
Signal Verification: Field wiring and terminal assignments should be checked against the applicable system drawings
Replacement Requirement: Exact board identification and configuration verification recommended
Specification caution: Exact I/O channel assignments, electrical ratings, terminal pinouts, and field signal characteristics can depend on the particular Mark V system configuration. Those values should be taken from the applicable GE drawings/manuals rather than inferred from the part number.
Field Application & the “Trench” Experience
A turbine is sitting in a planned outage when the maintenance team discovers a failed discrete-input channel. The original board is marked DS200TCDAH1BGD, and the plant has a spare in its maintenance inventory.
The replacement itself is not difficult. The dangerous part is rushing the wiring work.
Before removing the old TCDA, the technician photographs each terminal group and records the field connections. The spare is then compared physically with the removed board. After installation, individual discrete signals are checked before the turbine control sequence is allowed to proceed.
That sequence matters. A wrong field connection can look like a control-system fault when the actual problem is simply an incorrectly transferred wire.
Specific application scenarios
- Gas turbine auxiliary discrete control: Monitoring and interfacing limit switches, permissive signals, and equipment-status contacts.
- Turbine startup permissive logic: Handling discrete field signals used during controlled startup sequences.
- Legacy Mark V maintenance: Replacement of failed TCDA hardware during planned control-cabinet outages.

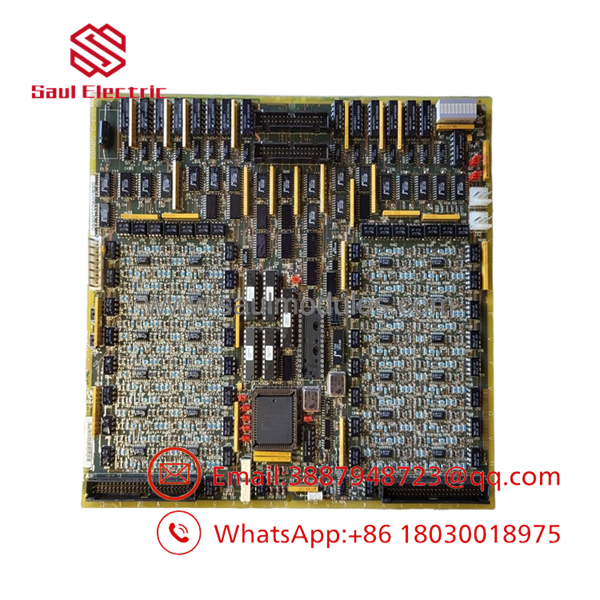

DS200TCDAH1BGD

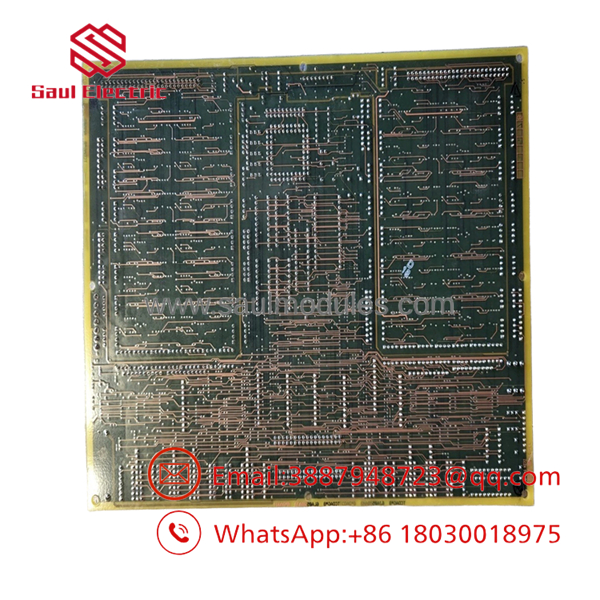

DS200TCDAH1BGD
Transparency SOP: QA & Testing
For New Surplus inventory, I would use the following acceptance sequence:
- Verify the label — Confirm DS200TCDAH1BGD and all visible revision markings.
- Inspect the PCB — Check connectors, terminal interfaces, components, solder joints, and edge contacts.
- Inspect configuration hardware — Compare switches, jumpers, and related hardware with the original installation where applicable.
- Check physical condition — Look for corrosion, contamination, impact damage, or evidence of previous installation.
- Functional test — Where a compatible Mark V test environment is available, verify the applicable I/O functions.
- Document the result — Record board identification, test status, and condition before shipment.
For a refurbished unit, ask exactly what work was performed. A cleaned board is not necessarily a repaired board, and a powered-up board is not necessarily fully function-tested.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing board compatibility with terminal compatibility
A replacement that fits the rack does not automatically guarantee that every field connection corresponds correctly. Verify the actual terminal assignments.
PRO TIP: Photograph the original wiring from several angles before disconnecting anything. Keep the photographs with the maintenance work order.
⚠️ Trap #2 — Forgetting the system drawings
Do not reconstruct I/O assignments from memory. Mark V systems can contain site-specific modifications accumulated over years of service.
⚠️ Trap #3 — Testing only at the cabinet
After replacement, confirm the actual field device response. A channel can appear healthy at the board level while the field circuit has an open connection, incorrect polarity, or another wiring problem.
Dynamic FAQ
What is the GE DS200TCDAH1BGD?
The is a GE TCDA digital I/O interface board associated with the Mark V control platform. It handles discrete field-signal interfacing within compatible systems.
Is used in GE Mark V turbine controls?
Yes. The TCDA family is associated with GE Mark V control equipment and turbine-control applications.
Can I replace with another TCDA board?
Not automatically. Verify the complete part number, hardware revision, I/O configuration, terminal arrangement, and host-system documentation before substitution.
What should I check before installing a replacement?
Record the complete board number and revision, photograph the wiring, document terminal assignments, inspect configuration hardware, and compare the replacement with the original board.
How can I verify New Surplus authenticity?
Request photographs of the rather than generic catalog photographs. Confirm that the board identification is readable and ask whether the unit is unused, previously installed, or refurbished.
Does the replacement include a warranty?
Warranty terms depend on the supplier and the condition of the board. For a critical turbine-control spare, confirm warranty duration, functional-test coverage, return conditions, and DOA provisions before purchase.
