GE DS200TCDAH1BJE Digital I/O Board Mark V

Description

Product Introduction & Engineering Value

The GE DS200TCDAH1BJE is a TCDA-series digital I/O board associated with the GE Mark V control platform. It handles discrete signal interfaces, making correct field wiring and channel identification important during replacement.

The final suffix H1BJE should not be ignored. Mark V boards were produced in multiple hardware configurations, and a visually similar TCDA board is not automatically interchangeable. For a controlled replacement, match the complete board number and verify the cabinet drawings before reconnecting field circuits.

Technical Specifications

Technical caution: Exact digital input/output counts, voltage thresholds, terminal assignments, connector pinouts, isolation characteristics, and channel-specific functions should be verified against the applicable GE Mark V documentation. Do not assume those values from the TCDA family designation alone.

Field Application & the “Trench” Experience

Digital I/O failures often create deceptively simple alarms: a limit switch appears stuck, an interlock does not clear, or a permissive disappears.

During a turbine maintenance outage, a technician traces an intermittent discrete signal to the DS200TCDAH1BJE. Before replacing the board, the team checks the field device, wiring continuity, terminal condition, and corresponding Mark V channel. The spare board is then compared against the original, including the complete suffix and configuration hardware.

After installation, each affected discrete point is checked individually.

That last step is important. A control system can look healthy while one incorrectly terminated discrete signal prevents a sequence from starting.

Niche application scenarios

• Turbine control interlocks: handling discrete status and permissive signals within a Mark V system.
• Valve limit-switch monitoring: interfacing open/closed position feedback with control logic.
• Legacy protection and sequencing circuits: maintaining discrete field interfaces during Mark V maintenance.

Transparency SOP: QA & Testing

For a DS200TCDAH1BJE, QA should concentrate on both PCB condition and digital signal integrity.

1. Identity check — Confirm DS200TCDAH1BJE, revision, and board-family markings.
2. Visual inspection — Examine components, connectors, terminal interfaces, solder joints, traces, and mounting points.
3. Configuration check — Record jumper and switch positions where applicable.
4. Electrical screening — Check for shorts, abnormal resistance, damaged components, and visible thermal damage.
5. I/O testing — Where a compatible test setup is available, apply known discrete input conditions and verify the expected board response.
6. System verification — Check affected Mark V logic, permissives, status indications, and output behavior after installation.
7. Documentation — Record test results, condition, traceability, and warranty.

For New Surplus units, obtain confirmation of unused status rather than relying solely on the supplier’s stock description.

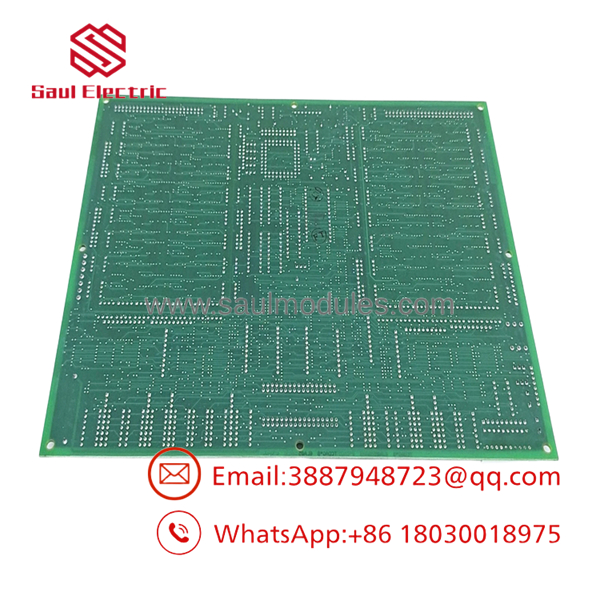

DS200TCDAH1BJE

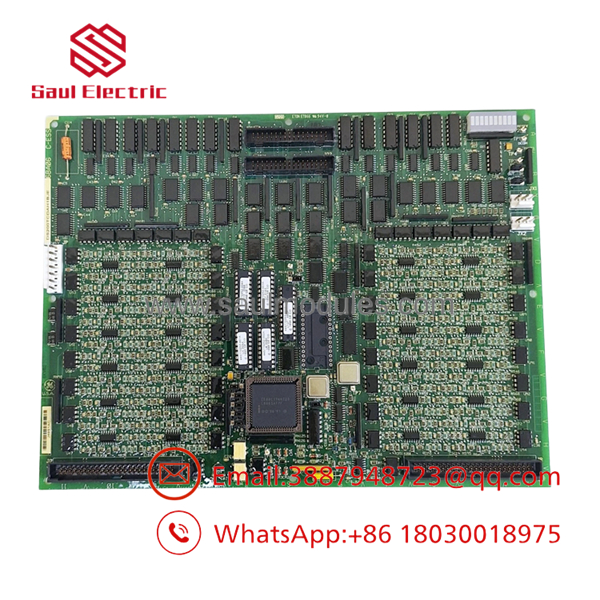

DS200TCDAH1BJE

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t assume every TCDA board has identical I/O.
The complete DS200TCDAH1BJE designation should be matched against the original hardware and drawings.

⚠️ Trap #2 — A wiring error can look exactly like a logic problem.
Document every field conductor before removing the old board. Check terminal numbers after installation.

PRO TIP: Photograph the original board and its connected wiring from multiple angles. Save the images with the work order.

⚠️ Trap #3 — Test the actual discrete points.
A board that passes a basic power check is not necessarily ready for service. Verify the affected inputs and outputs under controlled conditions.

Dynamic FAQ

What is the GE DS200TCDAH1BJE?

The is a GE DS200-series TCDA digital I/O board associated with Mark V control systems.

What is the TCDA board used for?

The TCDA family provides digital/discrete signal interface functions within compatible GE Mark V equipment. Exact channel assignments depend on the particular configuration and system application.

Can another DS200TCDA board replace it?

Not automatically. Verify the complete part number, hardware revision, connector arrangement, I/O characteristics, and cabinet documentation before substitution.

What should I check before replacing the board?

Record field wiring, terminal assignments, jumpers, switches, board revision, and cabinet location. Also verify that the original fault is actually associated with the PCB rather than the field device or wiring.

How do I verify New Surplus condition?

Request photographs of the actual , including its label and PCB markings. Ask whether it has been installed, repaired, modified, or electrically tested.

What warranty information should I request?

Confirm the warranty duration, DOA coverage, return procedure, and available test report. The supplier should clearly identify whether the board is New Surplus, Refurbished, or Used.
