GE DS200TCPDG2BEC Power Distribution Board

Description

Product Introduction & Engineering Value

The GE DS200TCPDG2BEC is a TCPD power distribution board used in GE Mark V control equipment. Unlike a signal-only I/O card, this board sits directly in the control-power distribution path, so its condition can affect multiple downstream circuits.

For maintenance teams, exact identification is essential. The DS200 TCPD family contains boards with different configurations and ratings. Before installation, verify the complete DS200TCPDG2BEC number, power source, fuse arrangement, and cabinet wiring against the original installation.

Technical Specifications

Technical caution: The 125 VDC rating should be verified against the actual board documentation and cabinet design before energization. Do not substitute a board solely because the connector arrangement appears identical.

Field Application & the “Trench” Experience

Power-distribution board failures can be deceptive. A technician may see several unrelated control faults appear simultaneously and initially suspect the I/O or processor hardware. In reality, a degraded fuse, connection, or distribution circuit on the TCPD board can affect several downstream devices at once.

Consider a planned Mark V cabinet outage. The maintenance team identifies DS200TCPDG2BEC as the failed board and compares the spare against the original. They record every fuse position and wire connection before removal. After installation, they verify the incoming DC supply first, then check each protected distribution branch before restoring the control system.

That sequence matters. Do not use downstream alarms to diagnose a power-distribution problem when the distribution board itself has not been verified.

Niche application scenarios

• GE Mark V turbine control power distribution: maintaining DC power feeds to control-system circuits.
• Generator control cabinets: replacement of a failed TCPD board during scheduled electrical maintenance.
• Legacy GE industrial control panels: restoration of multiple downstream control circuits without replacing the complete cabinet.

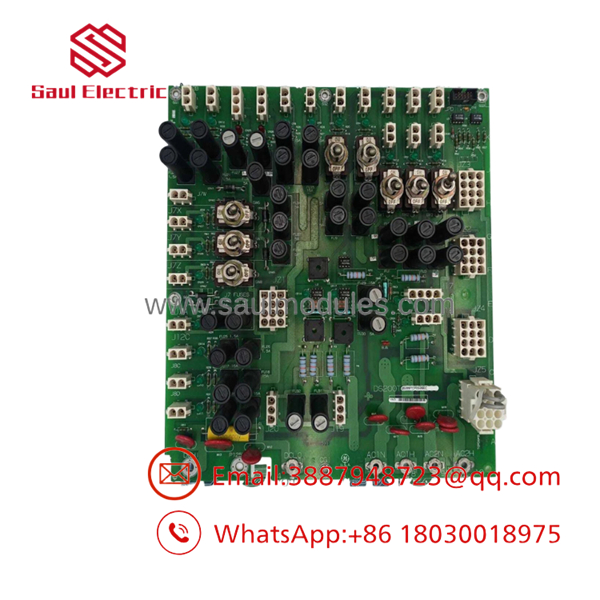

DS200TCPDG2BEC

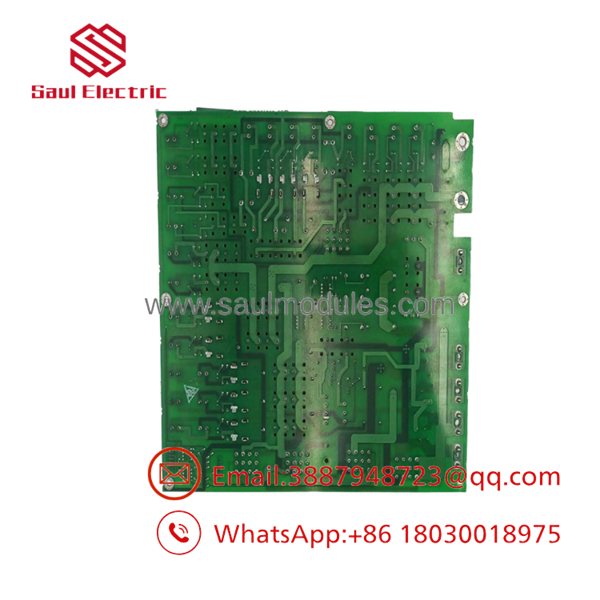

DS200TCPDG2BEC

Transparency SOP: QA & Testing

For a power-distribution board, QA should focus heavily on the electrical condition of the board and its protective components.

1. Part-number inspection — Confirm DS200TCPDG2BEC and the complete configuration code.
2. Physical inspection — Examine the PCB, terminals, connectors, fuse holders, traces, and components for heat damage or corrosion.
3. Fuse inspection — Check installed fuse types and ratings against the applicable documentation.
4. Electrical screening — Check for shorts, abnormal resistance paths, damaged components, and evidence of previous electrical stress.
5. Controlled power test — Where suitable test equipment is available, verify incoming and distributed DC voltage under controlled conditions.
6. Final inspection — Record test results, board condition, traceability information, and warranty terms.

A seller offering a Refurbished unit should be able to distinguish repair work from simple visual inspection. For a New Surplus board, confirm whether it has ever been installed or modified.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Fuse substitution is not a troubleshooting method.
Never increase a fuse rating simply because the original fuse opens repeatedly. The correct response is to identify the downstream fault.

⚠️ Trap #2 — Verify the 125 VDC supply before blaming the board.
A failed upstream supply, loose connection, or damaged wiring can create symptoms that look like a TCPD board failure.

PRO TIP: Photograph every fuse position before removing the board. On a legacy cabinet, that image provides a useful reference if existing documentation is incomplete or the board has been modified during previous maintenance.

⚠️ Trap #3 — Do not energize a replacement without checking wiring.
A misplaced DC connection can damage the replacement board and connected equipment. Verify polarity, terminal identification, fuse configuration, and isolation procedures before applying power.

Dynamic FAQ

What is the GE DS200TCPDG2BEC?

The is a GE DS200 TCPD Power Distribution Board associated with GE Mark V control systems. It distributes control power through protected circuits within the applicable cabinet.

What is the input voltage of the DS200TCPDG2BEC?

The board is commonly identified with a 125 VDC input rating. Confirm the rating against the documentation for the specific installation before applying power.

Is this a PLC power supply?

No. The DS200TCPDG2BEC is better understood as a power distribution board within the Mark V control architecture. It should not be treated as a generic modern PLC power-supply module.

Can another DS200TCPD board replace it?

Do not assume compatibility. Verify the complete part number, configuration, input voltage, fuse arrangement, terminal configuration, and cabinet documentation before substitution.

How can I verify a New Surplus DS200TCPDG2BEC?

Ask for photographs of the actual board and confirmation that it is unused inventory. Also ask whether it has been electrically tested, repaired, modified, or previously installed.

What warranty should I request?

For a critical control-power spare, confirm the warranty period, DOA policy, return conditions, and test documentation before purchase. Warranty terms vary by supplier and by whether the board is New Surplus, Refurbished, or Used.
