Description
Product Introduction & Engineering Value
The GE DS200TCPSG1A is a TCPS power supply board used in GE Mark V control systems. It converts and distributes incoming power to the control electronics and associated circuits, so its condition affects much more than a single I/O channel.
This is one of those replacements where the upstream and downstream circuits both matter. Before installing a spare, verify the input source, board identification, output distribution, connectors, and cabinet documentation. A replacement power board should not be used to compensate for an unresolved short or overload elsewhere in the system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS200TCPSG1A |
| Product Family | DS200 |
| Control Platform | Mark V |
| Board Family | DS200TCPS |
| Board Type | Power Supply Board |
| Configuration | G1A |
| Primary Function | Control-system power conversion/distribution |
| Technology Generation | GE Mark V |
| PCB Format | Plug-in industrial control PCB |
| Application | GE Mark V control and turbine systems |
| Replacement Method | Exact part-number verification |
Technical caution: Exact input voltage, output rails, current capacity, fuse specifications, terminal assignments, and connector pinouts should be verified against the applicable GE Mark V documentation for the installed system. Do not infer electrical ratings from the TCPS family designation alone.
Field Application & the “Trench” Experience
Power-supply failures have a nasty habit of producing multiple unrelated-looking alarms.
A Mark V cabinet starts reporting several communication and I/O faults at once. The maintenance team suspects the control boards individually, but the common symptom points toward the power-distribution path. The installed board is identified as DS200TCPSG1A.
Before swapping it, the technician checks the incoming supply, fuses, downstream loads, and signs of overheating. The replacement TCPS board is then inspected and compared against the original. After installation, each affected DC supply rail is verified before the control system is returned to normal operation.
The lesson is simple: multiple simultaneous control faults can be a power problem wearing a disguise.
Niche application scenarios
- Mark V turbine control cabinets: supplying power to control electronics and associated circuits.
- Legacy excitation/drive control systems: maintaining the DC power architecture of installed GE equipment.
- Scheduled control-system outages: replacing an aging TCPS board before an intermittent power fault becomes a shutdown event.

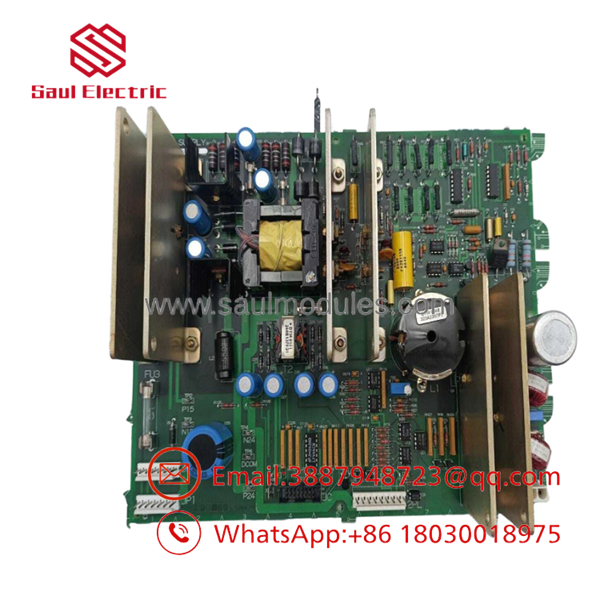

DS200TCPSG1A

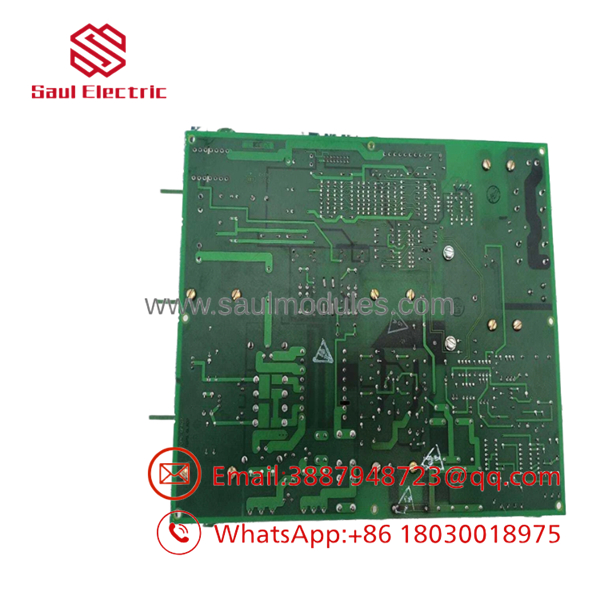

DS200TCPSG1A
Transparency SOP: QA & Testing
For a DS200TCPSG1A, QA should emphasize power integrity.
1. Identification
Confirm DS200TCPSG1A, board family, revision markings, and traceability information.
2. Physical inspection
Check capacitors, inductive components, connectors, fuses, PCB traces, solder joints, and areas showing heat discoloration.
3. Input-side inspection
Verify the condition of the input connectors and associated protection components.
4. Electrical screening
Check for shorts, abnormal resistance paths, damaged components, and evidence of previous electrical overstress.
5. Controlled power testing
Where suitable test equipment is available, verify the applicable input and output behavior under controlled conditions.
6. Load verification
Confirm that the supply remains within the applicable specifications under the appropriate load rather than testing only at no load.
7. Documentation
Record test results, board condition, traceability information, and warranty.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t replace a power board without checking the load.
If a downstream board or wiring fault is pulling excessive current, the replacement TCPS can fail for the same reason.
⚠️ Trap #2 — Verify the actual input supply.
A defective upstream supply or incorrect wiring can make a healthy replacement board appear defective.
PRO TIP: Photograph the original wiring and fuse arrangement before removal. Record the cabinet location and every connector.
⚠️ Trap #3 — Never treat a power-up test as a complete QA test.
A board that produces voltage with no meaningful load may still fail under operating conditions. Where practical, verify the relevant supply rails under controlled load.
Dynamic FAQ
What is the GE DS200TCPSG1A?
The is a GE DS200-series TCPS power supply board associated with Mark V control equipment.
What is the purpose of the TCPS board?
It provides power conversion and distribution functions for compatible Mark V control electronics and associated circuits.
Can another DS200TCPS board replace the G1A version?
Do not assume interchangeability. Verify the complete part number, revision, input requirements, output rails, connectors, and application documentation.
What should I check before installing a replacement?
Check the incoming power source, downstream loads, fuses, connectors, wiring, board revision, and cabinet drawings. Investigate any short or overload before energizing the replacement.
How can I verify New Surplus authenticity?
Ask for photographs of the actual , including the identification label and PCB. Confirm whether it has ever been installed, repaired, modified, or electrically tested.
What warranty terms should I confirm?
Request written warranty duration, DOA coverage, return conditions, and test documentation. Confirm whether the unit is New Surplus, Refurbished, or Used and what testing was performed before shipment.
